The VE829 5x2 HDMI Wireless Extender is the first solution to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date. This means you can watch cable TV in one location (transmitter side) and, at the same time, independently select a Blu-ray movie to watch in another location (receiver side). The VE829 is capable of streaming Full HD 1080p with support for 3D content and digital audio up to 30m* away, within the home or any desired setup.

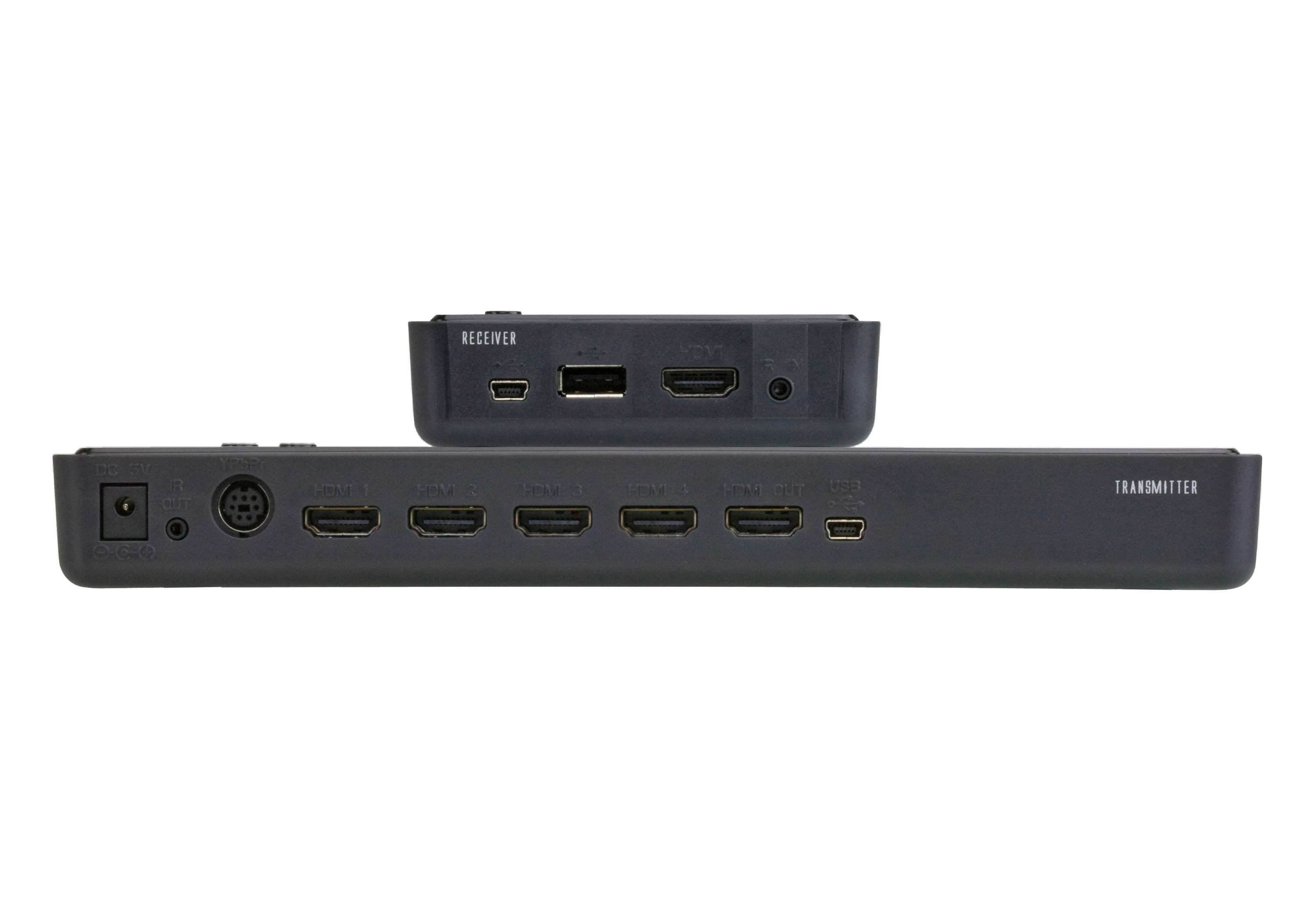

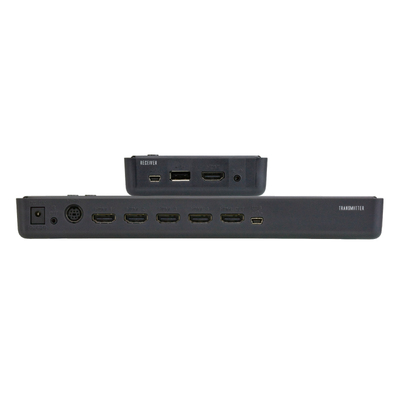

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for the HDMI and Component, along with a loop through (local port) for advanced two-HDTV setups. It also features USB HID connectivity for adding a computer / laptop to the installment, giving you wireless control from the VE829R. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable boxes, Game consoles and computers allowing you to design your own custom entertainment.
* Distance, quality and signal may vary depending on the environment; solid structures, such as steel, concrete and brick may result to shorter distance coverage or complete loss of signal.
Note: Connecting additional HDMI switches?splitters?or extenders can decrease the audio signal’s strength and quality

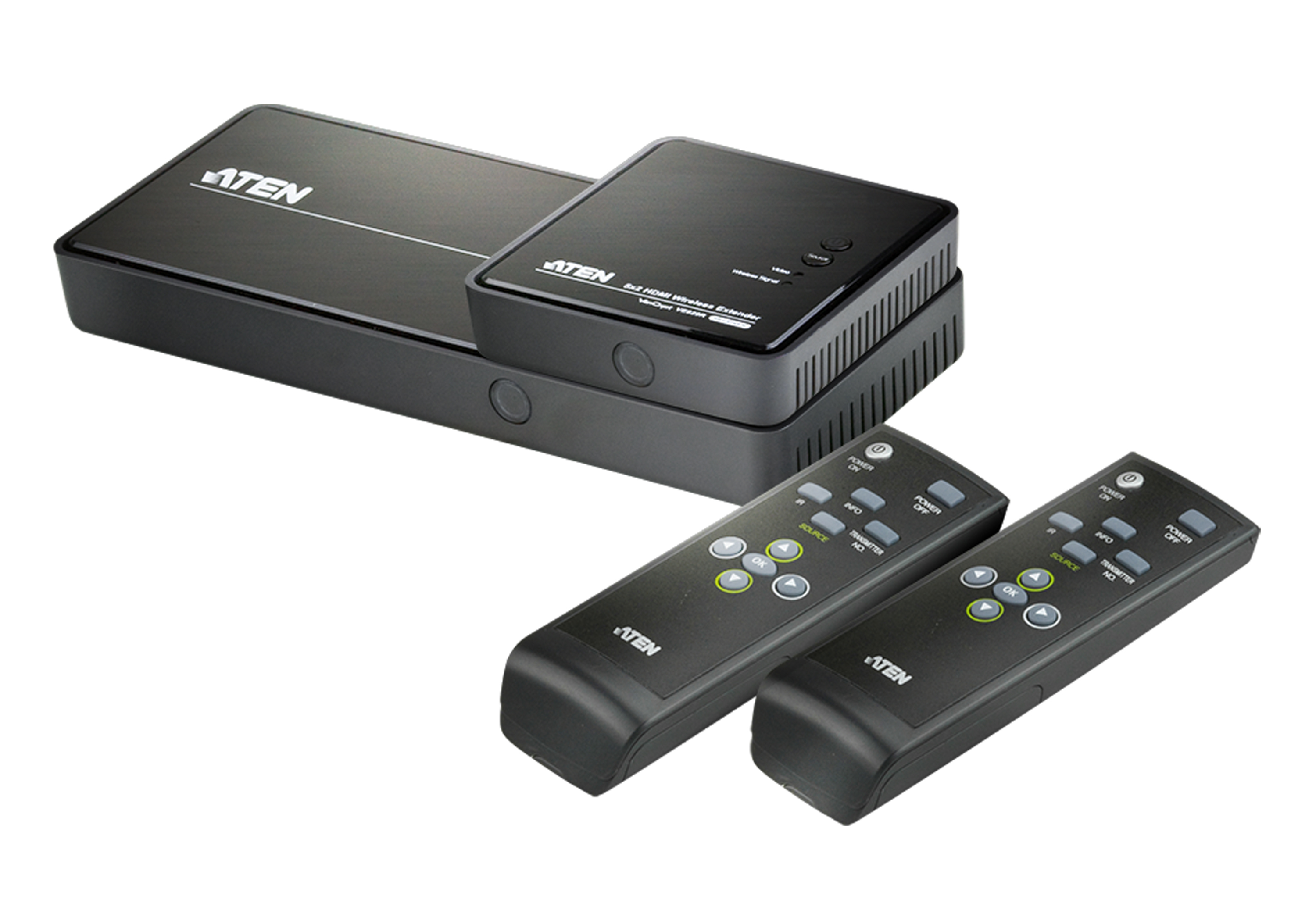

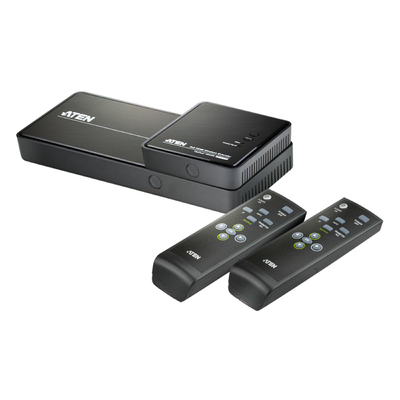

Package Contents
- 1x VE829T 5x2 HDMI Wireless Transmitter
- 1x VE829R 5x2 HDMI Wireless Receiver
- 2x Remote Controls with batteries
- 1x Component Adapter Cable
- 1x IR Blaster Cable (Transmitter)
- 1x IR Sensor Extender Cable (Receiver)
- 2x Power Adapters
- 1x HDMI Cable (1.5m/5ft)
- 1x User Instructions
(VE829-AT-U)
| Function | VE829R | VE829T |
| Video Input | ||
| Interfaces | N/A | 4 x HDMI Type A Female (Black) 1 x Component Video Female (Blue/Green/Red) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? | 100 ? |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D) HDCP Compatible | HDMI (3D) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@30m (Line of Sight) * | Up to 1080p@30m (Line of Sight) * |
| Audio | ||
| Input | N/A | 4 x HDMI Type A Female (Black) 1 x Component Audio Female (Red/White) |
| Output | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Control | ||
| IR | 1 x 2.5mm Jack Female (Black) | 1 x 2.5mm Jack Female (Black) |
| Connectors | ||
| Power | 1 x DC Jack (Mini USB) | 1 x DC Jack |
| Power Consumption | DC5V:6.7WBTU | DC5V:9.5WBTU |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Plastic | Plastic |
| Weight | 0.13 kg ( 0.29 lb ) | 0.28 kg ( 0.62 lb ) |
| Dimensions (L x W x H) | 9.50 x 9.50 x 3.55 cm (3.74 x 3.74 x 1.4 in.) | 23.40 x 9.65 x 3.25 cm (9.21 x 3.8 x 1.28 in.) |
| Carton Lot | 5 pcs | 5 pcs |
| Note | * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances. | * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | VE829-AT-U |
| Barcode # | 4710423779983 |
| Brand | ATEN |
| Shipping Weight | 0.2800kg |
