ATEN SKU VE811-AT-U

ATEN VE811-AT-U 4K HDMI HDBaseT Extender

The ATEN VE811-AT-U extends HDMI over one Cat5e, Cat6, Cat6a or ATEN 2L-2910 Cat6 cable using HDBaseT Class A technology.

The structured source lists 4K up to 70m on Cat5e/6 or 100m on Cat6a/2L-2910, 1080p up to 100m, and the narrative adds a Long Reach Mode for 1080p up to 150m.

4K HDMI over HDBaseTUp to 100mLong Reach 1080p up to 150m3-year warrantyDeviceDeal authorised ATEN reseller

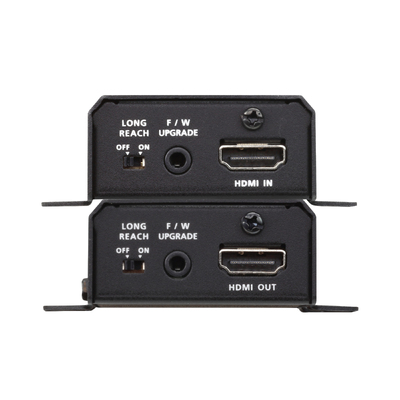

ATEN VE811-AT-U 4K HDMI HDBaseT Extender shown in the supplied second product image

Product overview

4K up to 100m

The structured specification lists 4K up to 100m with Cat6a or ATEN 2L-2910 Cat6 cable, and up to 70m with Cat5e/6.

Long Reach Mode

The supplied description states that 1080p can be extended up to 150m over Cat5e/6 in Long Reach Mode.

HDMI feature support

3D, Deep Color, 4K, HDCP 2.2, CEC pass-through and lossless HD audio features are listed.

Source review: The product name abbreviates the range as 4K at 100m. The structured source clarifies that 100m 4K requires Cat6a or ATEN 2L-2910 Cat6, while Cat5e/6 is listed at up to 70m for 4K.

Frequently asked questions

How far can 4K be extended?

The source lists up to 70m over Cat5e/6 or 100m over Cat6a/ATEN 2L-2910 Cat6.

How far can 1080p be extended?

Up to 100m is listed normally, while the narrative states up to 150m over Cat5e/6 in Long Reach Mode.

Which cable types are identified?

Cat5e, Cat6, Cat6a and ATEN 2L-2910 Cat6 are listed.

What is included?

The package lists a VE811T transmitter, VE811R receiver, two power adapters and user instructions.

What warranty is supplied?

The source lists a three-year ATEN manufacturer warranty.

(VE811-AT-U)

Features

ATEN VE811-AT-U 4K HDMI HDBaseT Extender

Video extension

4K up to 70m on Cat5e/6
4K up to 100m on Cat6a/2L-2910
1080p up to 100m
Long Reach 1080p up to 150m

HDMI and audio

HDMI 3D, Deep Color and 4K
HDCP 2.2 compatible
CEC pass-through
Dolby Digital 5.1 and DTS-HD audio stated

Installation

One RJ45 link
Locking DC power jacks
Long Reach Mode slide switch

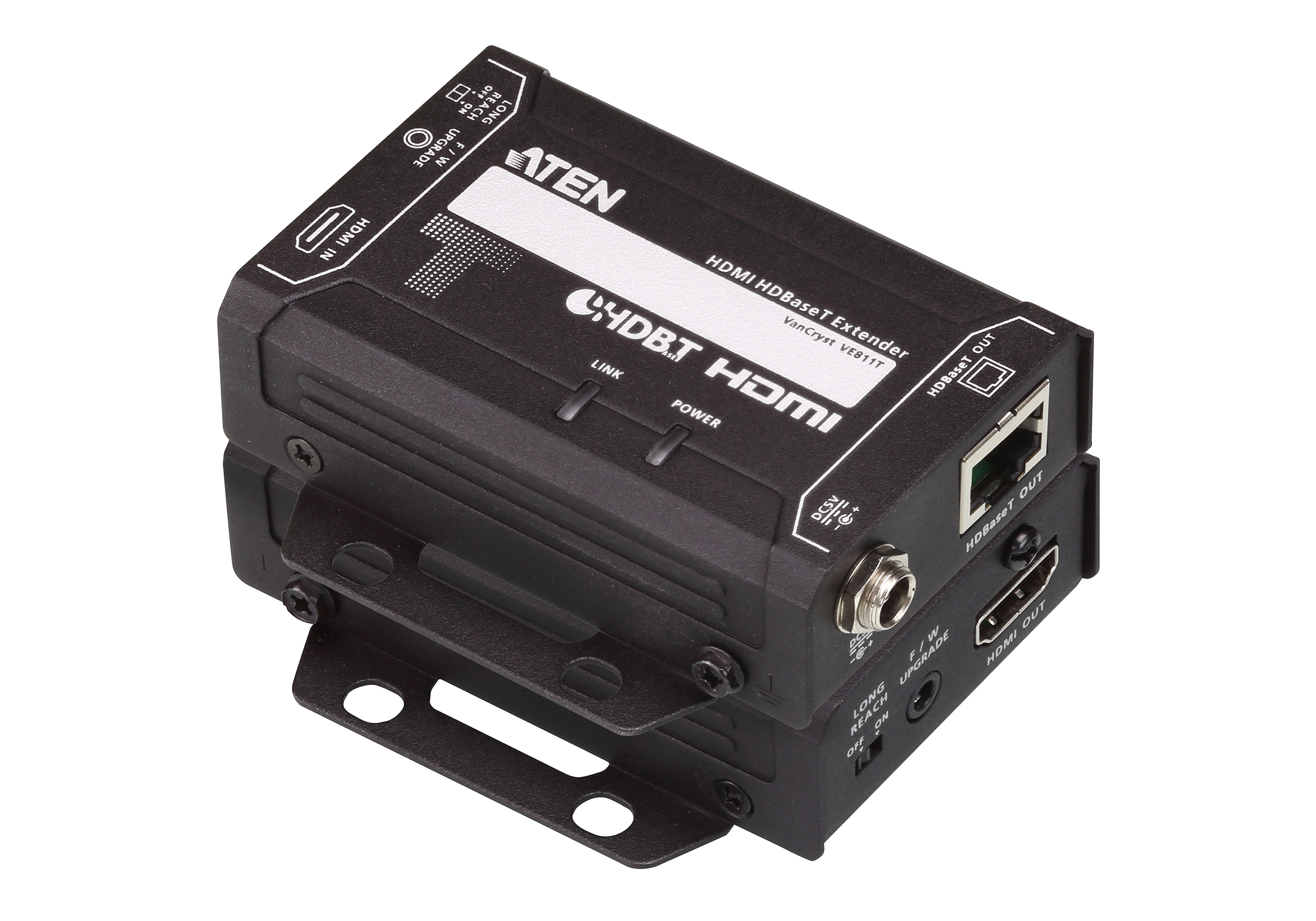

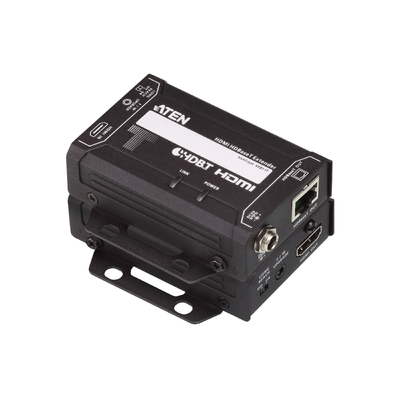

Compact metal transmitter and receiver

Cable category and quality directly affect the stated 4K transmission distance; use the source-specified cable for the target range.

Technical specifications

ATEN VE811-AT-U 4K HDMI HDBaseT Extender

Product details
Brand	ATEN
Model / SKU	VE811-AT-U
Product type	HDMI HDBaseT Class A extender
Package units	VE811T transmitter; VE811R receiver
Video
Maximum data rate	10.2Gbps; 3.4Gbps per lane
Maximum pixel clock	340MHz
4K distance	Up to 70m on Cat5e/6; up to 100m on Cat6a or ATEN 2L-2910 Cat6
1080p distance	Up to 100m normally; up to 150m in Long Reach Mode stated in narrative
4K formats stated	4096 x 2160 / 3840 x 2160 at 60Hz 4:2:0; at 30Hz 4:4:4
Compliance	HDMI 3D, Deep Color and 4K; HDCP 2.2; CEC
Connections and power
Transmitter video input	1 x HDMI Type-A female, black
Receiver video output	1 x HDMI Type-A female, black

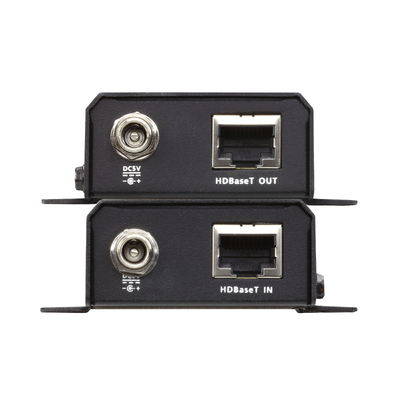

Unit-to-unit link	1 x RJ45 female per unit
Firmware upgrade	1 x mini stereo jack female per unit

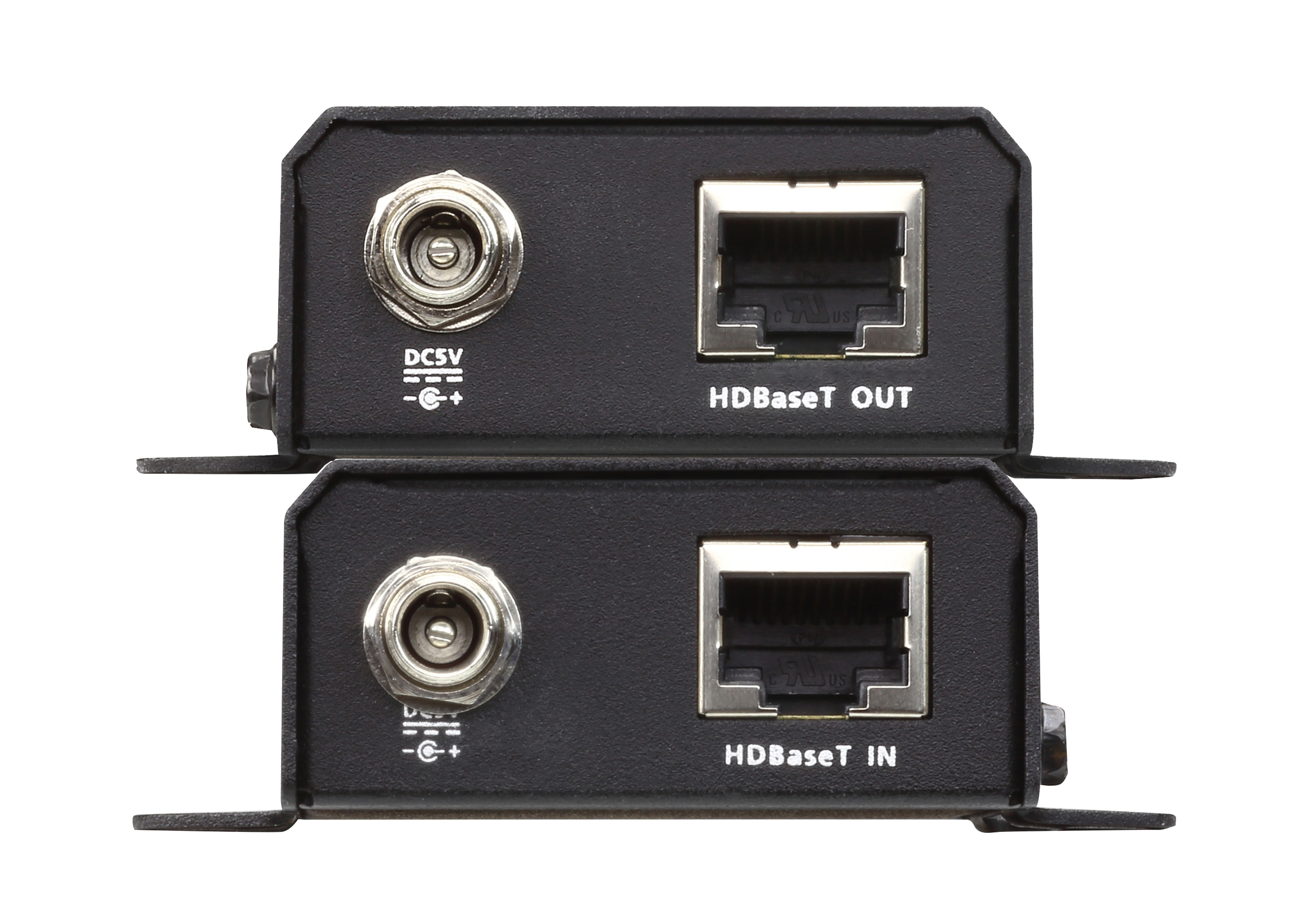

Power	1 x locking DC jack per unit

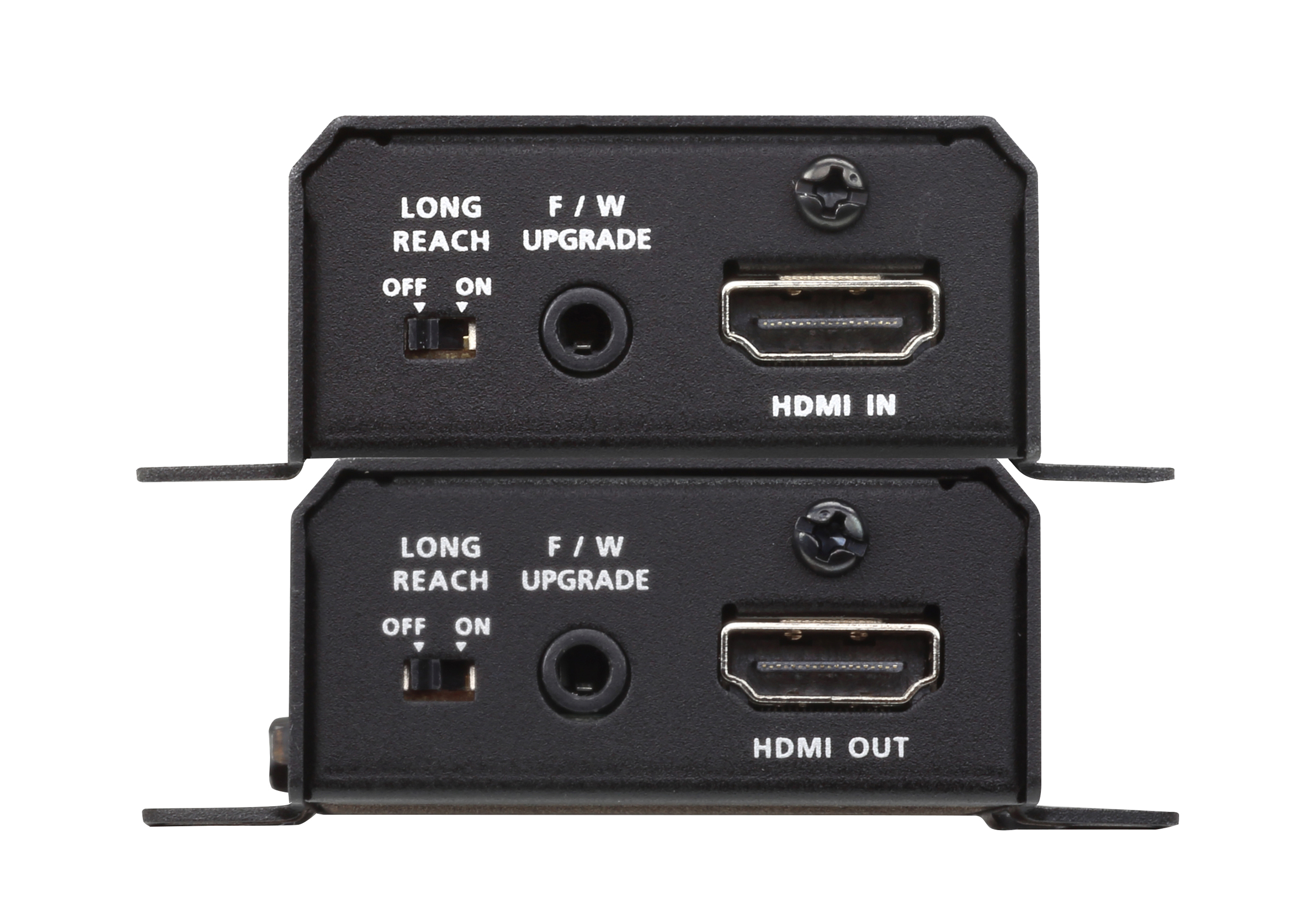

Long Reach switch	1 x on/off slide switch per unit
Physical and environment
Housing	Metal
Weight	Receiver 0.17kg; transmitter 0.16kg
Dimensions with bracket (L x W x H)	8.64 x 7.30 x 2.47cm per unit
Dimensions without bracket (L x W x H)	8.20 x 5.20 x 2.37cm per unit
Operating temperature	040°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing

SKU	VE811-AT-U
Barcode #	4719264645747
Brand	Aten
Shipping Weight	0.7000kg

Warranty information

ATEN VE811-AT-U 4K HDMI HDBaseT Extender

3-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a three-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
