ATEN VE1830-AT-U True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B)
Model # VE1830-AT-U
-
SKU: VE1830-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely

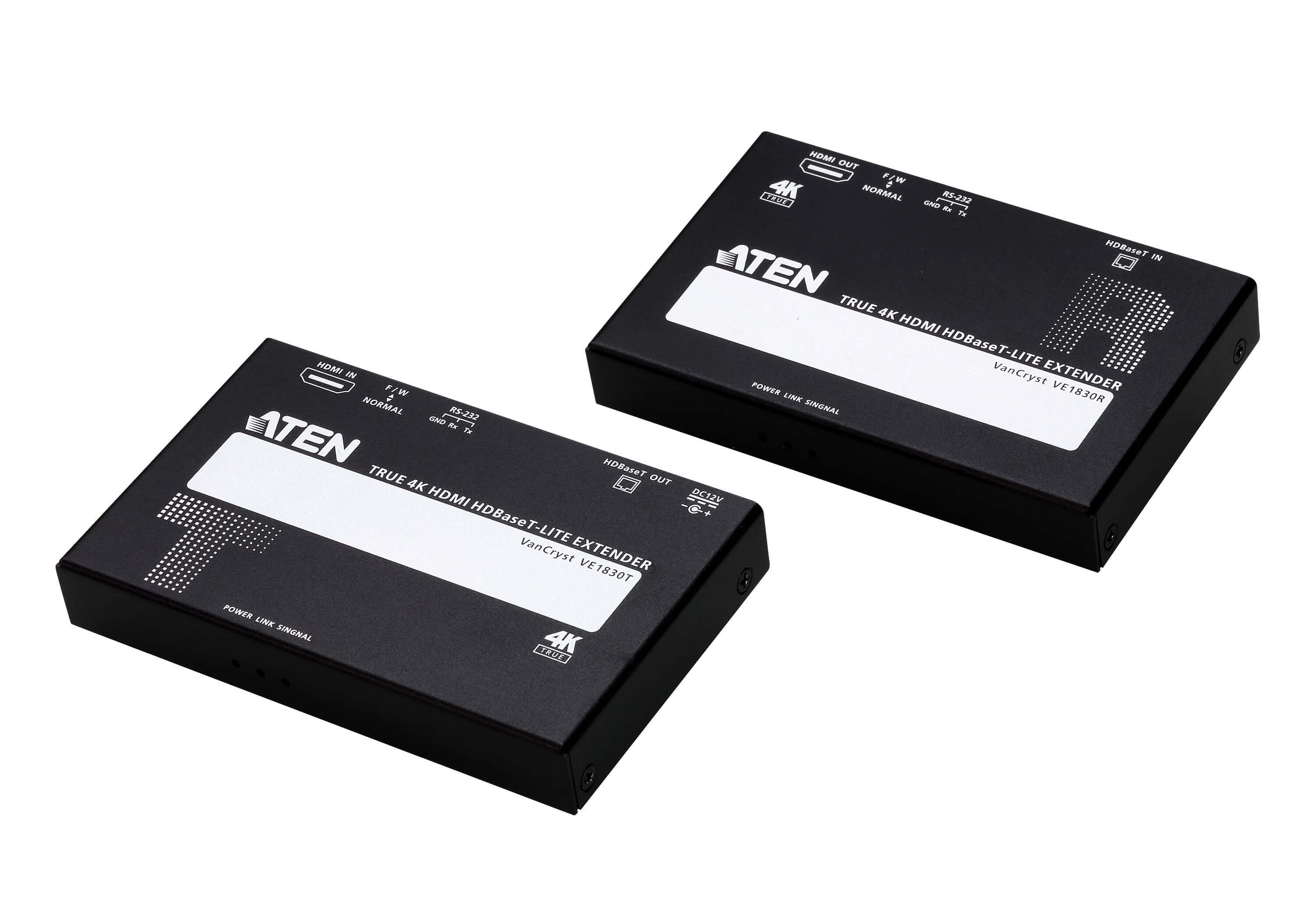

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.
Package Contents
- 1 x VE1830T True 4K HDMI HDBaseT-Lite Transmitter
- 1 x VE1830R True 4K HDMI HDBaseT-Lite Receiver
- 2 x RS-232 Terminal Blocks
- 1 x Power Adapter
- 1 x Mounting Kit
- 1 x User Instructions
(VE1830-AT-U)
| Function | VE1830R | VE1830T |
| Video Input | ||

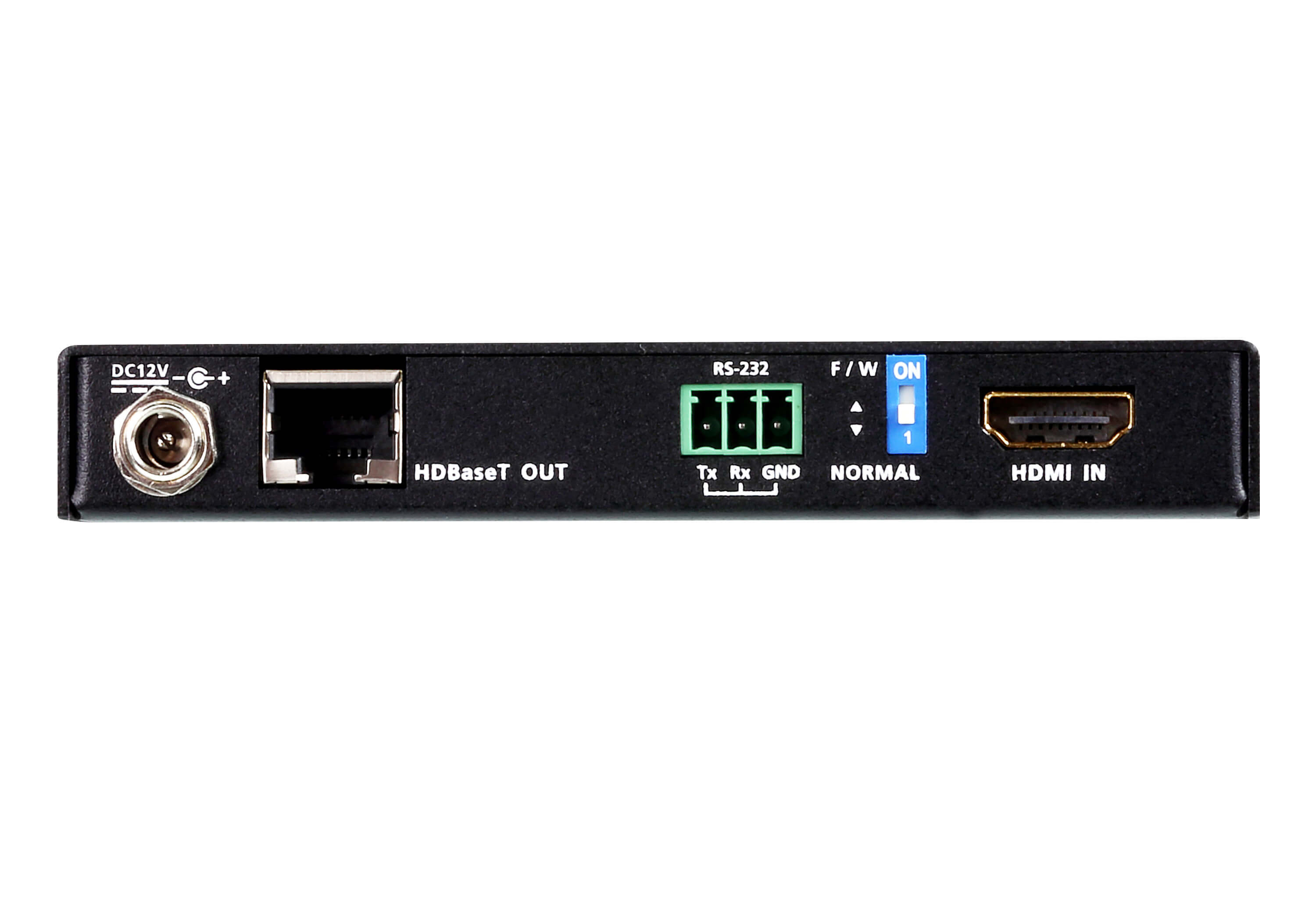

| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 5 m (2L-7D05H-1) |
| Video Output | ||

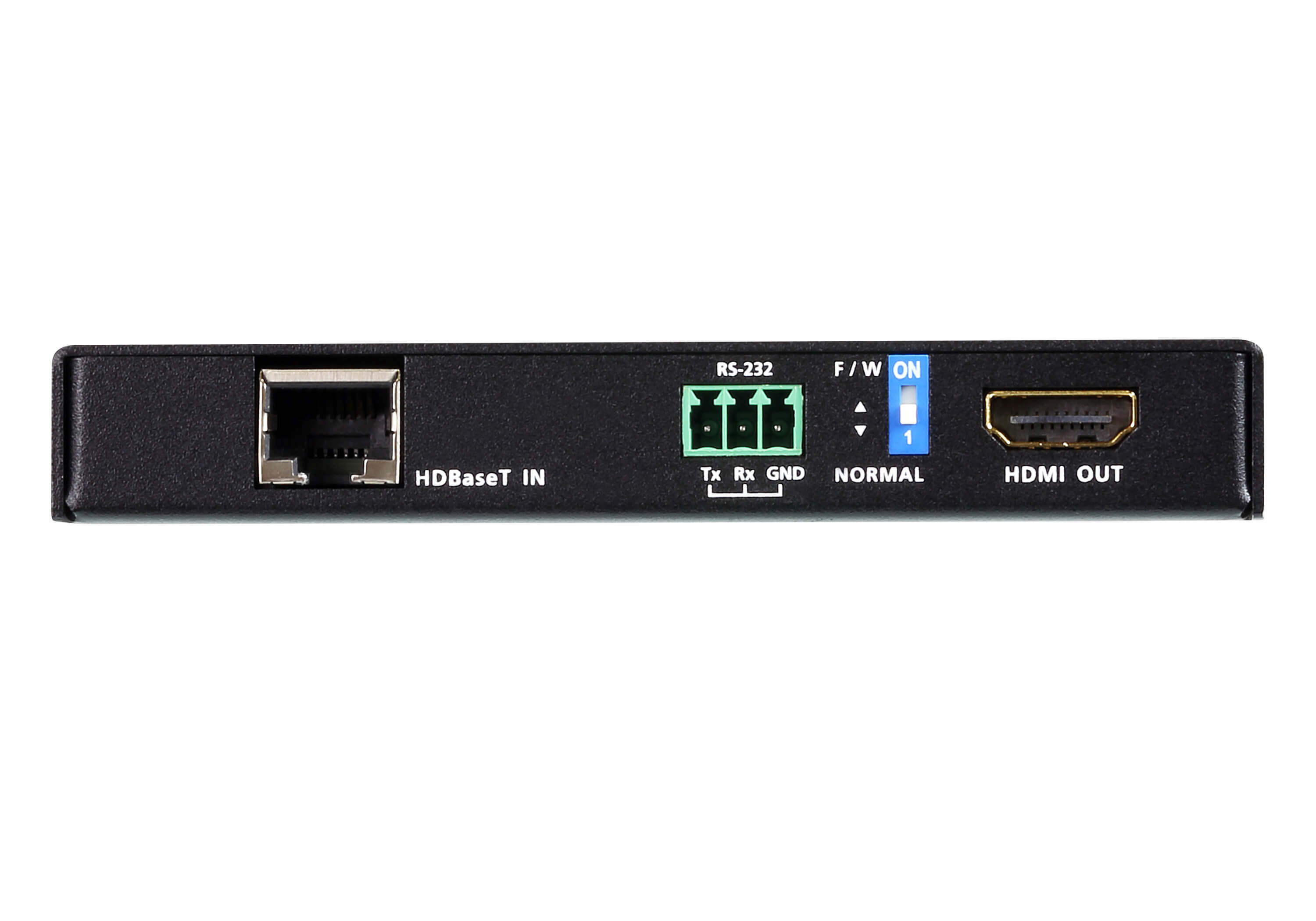

| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Max. Distance | 5 m (2L-7D05H-1) | N/A |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K); 4K HDR HDCP2.2 Compatible Consumer Electronics Control (CEC) | HDMI 2.0 (3D, Deep Color, 4K); 4K HDR HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6); Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6) | Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6); Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6) |
| Supported Resolutions | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6); 1080P@60m (Cat 5e/6) | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6); 1080P@60m (Cat 5e/6) |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | N/A |
| Connectors | ||
| Unit To Unit | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | 1 x RJ-45 Female (Power over Cable, power supply from VE1830T) | 1 x DC Jack (Black) with locking |
| Control | ||
| RS-232 Channel | Connector: 1 x Terminal Block, 3 pole | Connector: 1 x Terminal Block, 3 pole |
| Power Consumption | BTU | DC12V:24W:113BTU |
| Switches | ||
| Firmware Upgrade | 1 x Slide Switch - ON/OFF | 1 x Slide Switch - ON/OFF |
| Environmental | ||
| Operating Temperature | 0 - 40°C | 0 - 40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.12 kg ( 0.28 lb ) | 0.15 kg ( 0.35 lb ) |
| Dimensions (L x W x H) | 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.) | 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | VE1830-AT-U |
| Barcode # | 4719264642630 |
| Brand | ATEN |
| Shipping Weight | 0.1200kg |
