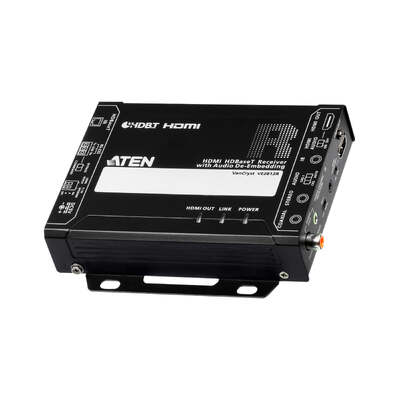

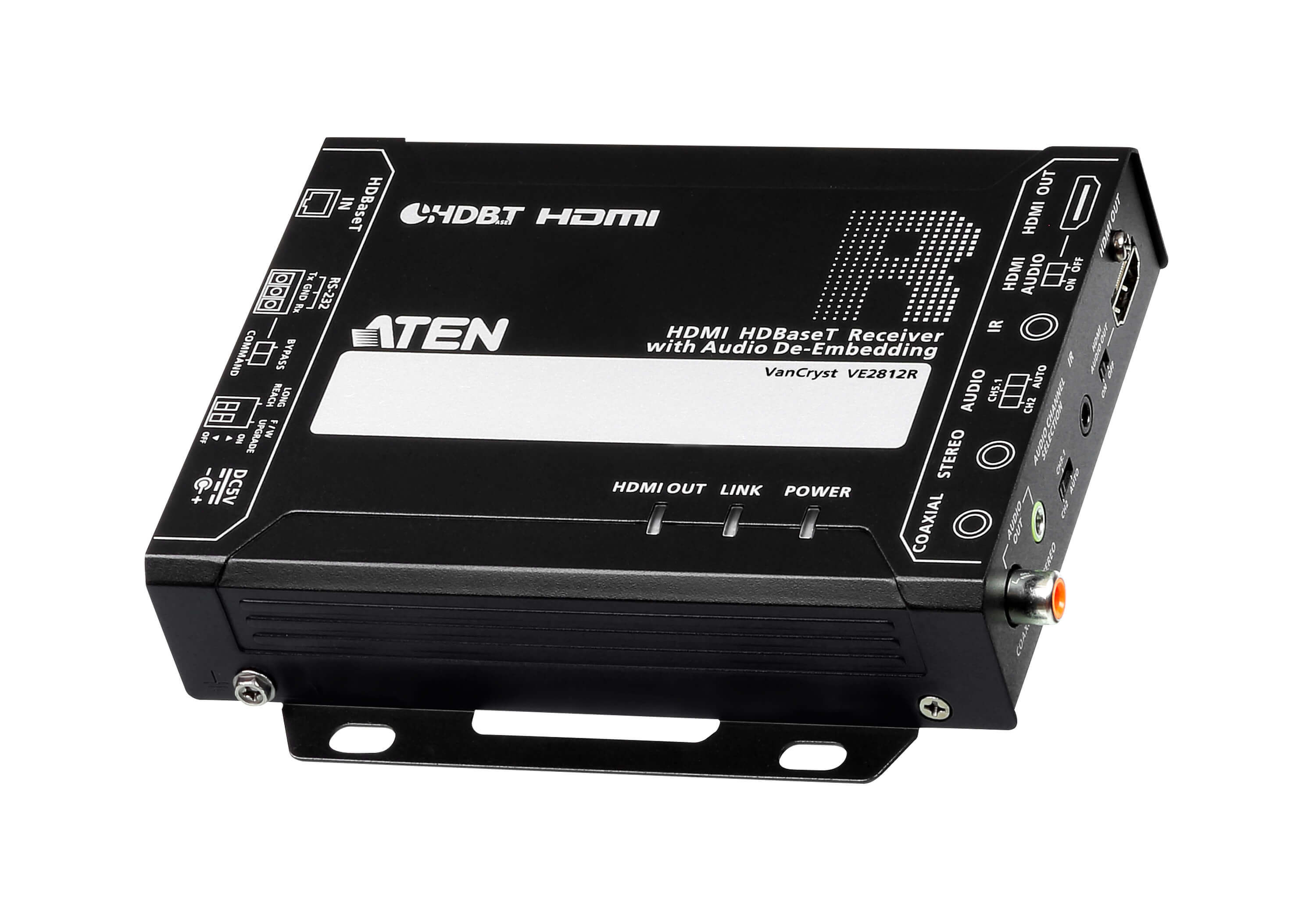

ATEN VE2812R-AT-U HDMI HDBaseT Receiver with Audio De-Embedding (4K@100m) (HDBaseT Class A)
Model # VE2812R-AT-U
-
SKU: VE2812R-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The VE2812R is a high-quality HDMI HDBaseT Receiver featuring audio de-embedding function. Powered by HDBaseT™ technology, the VE2812R can receive 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.With HDBaseT Long Reach Mode enabled, it can deliver HDMI signals up to a maximum range of 150 meters @ 1080p.
The VE2812R’s audio de-embedding function extracts the audio signal from the HDMI and converts it into Coaxial S/PDIF or Stereo Audio signal and delivers to an audio system that is separated from the display. Compatible with HDMI (3D, Deep Color, 4k) and HDCP 2.2, the VE2812R ensures reliable transmission of high-quality uncompressed HDMI signals.
The VE2812R is recommended to be deployed in paired with the VE2812T. The VE2812R can carry on IR/RS-232 from the VE2812T, allowing users to remotely control the VE2812T unit through RS-232 command mode via input port switching. The solution is deal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.
Package Contents
- 1x VE2812R HDMI HDBaseT Receiver with Audio De-Embedding
- 1x RS-232 Terminal Block
- 4x Foot Pads
- 1x Power Adapter
- 1x User Instructions
(VE2812R-AT-U)
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3 m (2L-7D03H) |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) |
| Audio | |

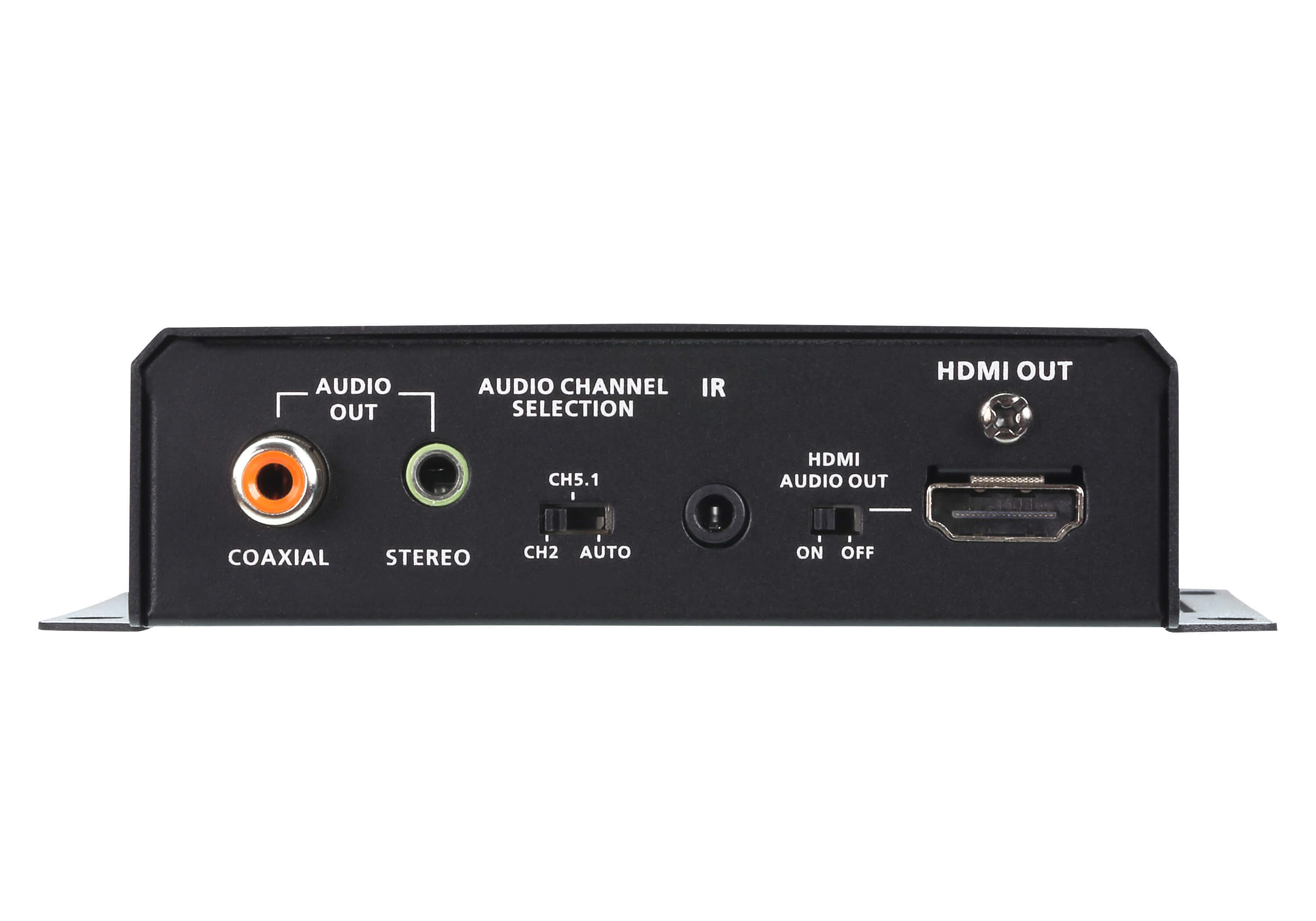

| Output | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x SPDIF Coaxial Female (Orange) |
| Connectors | |

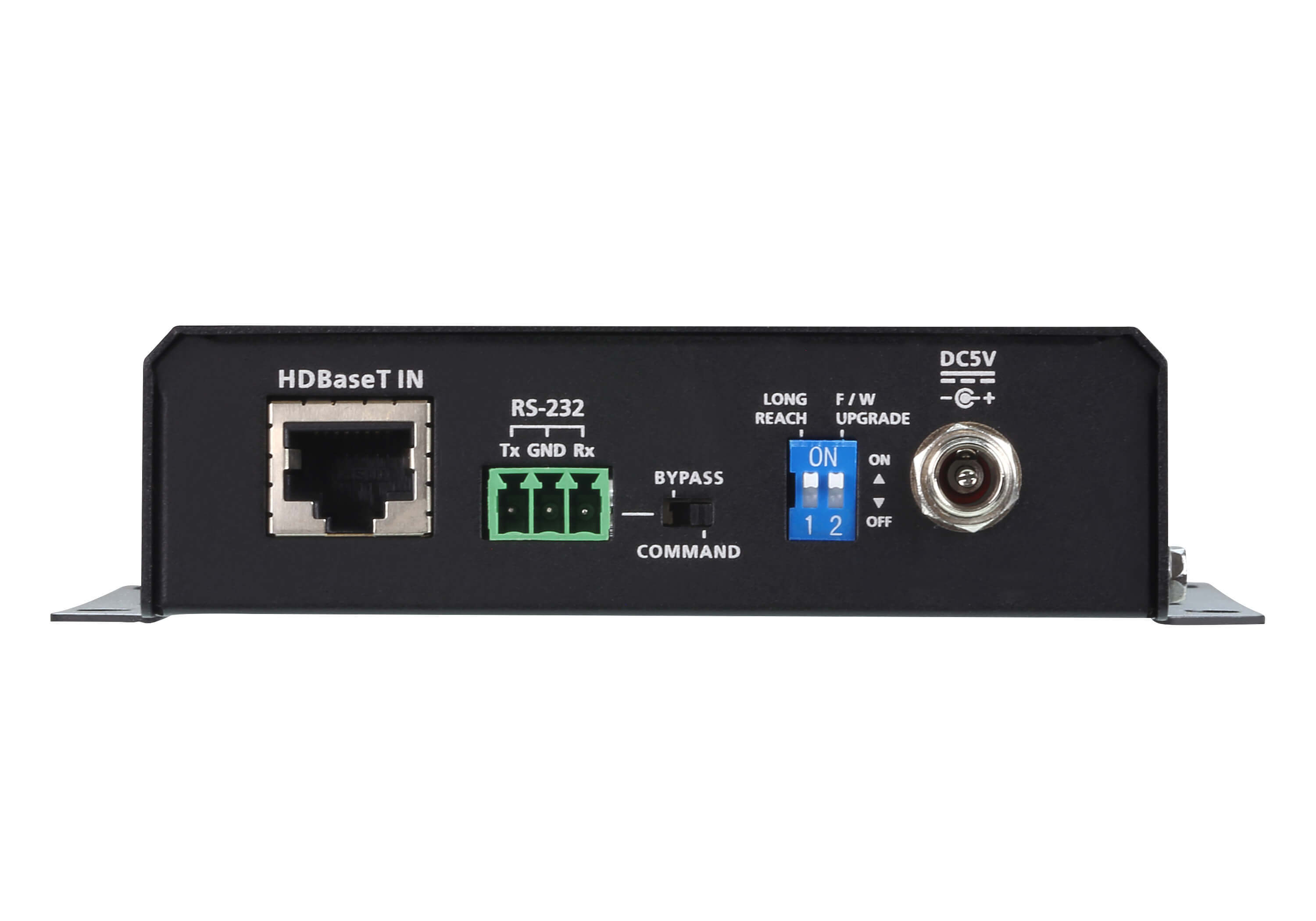

| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole; Type: DTE Baud Rate: 115200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Power Consumption | DC5V:4.98W:43BTU |
| Switches | |
| HDMI Mute | 1 x Slide Switch - HDMI Audio ON/OFF |
| Audio EDID Selection | 1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO |
| Mode Selection | 1 x Slide Switch - RS-232 Bypass or Command mode Selection |
| Long Reach Mode Switch | 1 x Slide Switch - Long Reach mode ON/OFF |
| Firmware Upgrade | 1 x Slide Switch - Firmware Upgrade mode ON/OFF |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.46 kg ( 1.01 lb ) |
| Dimensions (L x W x H) with bracket | 14.53 x 12.30 x 3.00 cm (5.72 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
| SKU | VE2812R-AT-U |
| Barcode # | 4719264648786 |
| Brand | ATEN |
| Shipping Weight | 0.2000kg |
