StarTech HDMI Over IP Gigabit Ethernet Extender Kit - ST12MHDLAN
Model # ST12MHDLAN
-
SKU: ST12MHDLAN
- Pick Up Available
- Australian Warranty
- Checkout Securely
The HDMI® over IP kit lets you extend an HDMI signal over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations and combine your remote displays to create a video wall.
Versatile configuration options

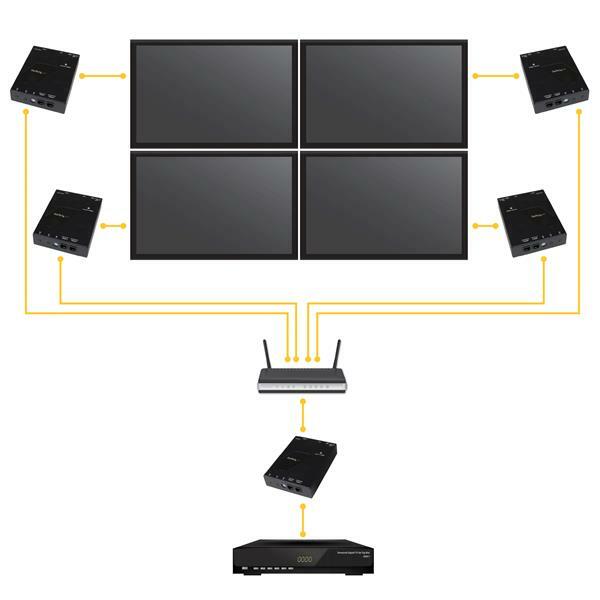

In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different kits.
For smaller-scale applications, the extender kit can be used as a point-to-point video extender. You can connect the transmitter and receiver units directly over Cat5 or Cat6 cabling for a small-scale, one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection, and lets you switch video sources for each remote display. You can also intuitively create and manage a video wall for an impressive digital signage presentation to catch the attention of your audience.
The software is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
|
|
|
|
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
The ST12MHDLAN is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Applications
- Build a multi-display video wall to present entertainment to your patrons, with an impressive display at a restaurant or shopping center
- Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
- Present your social media feeds on multiple screens in a large viewing area
Product Numbers
Dell Harmony
A7202579
Tech Data
11168850
D&H
ST12MHDLAN
Ingram Micro USA
RZ4955
SYNNEX US
STA-ST12MHDLAN
UPC Code
065030850759
(ST12MHDLAN)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | Yes | |
| Cabling | Cat 5e UTP or better | |
| Daisy-Chain | Yes | |
| Ports | 1 | |
| Rack-Mountable | Yes | |
| Performance | ||
| Audio Specifications | Stereo Sound | |
| Max Distance | 100 m / 330 ft | |
| Maximum Digital Resolutions | 1920x1200 @60Hz | |
| Supported Resolutions | 1920 x 1200 (1080p) | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Connector Type(s) | 1 - HDMI (19 pin) | |
| 1 - RJ-45 | ||
| Local Unit Connectors | 1 - HDMI (19 pin) | |
| 1 - RJ-45 | ||
| Remote Unit Connectors | 1 - HDMI (19 pin) | |
| 1 - RJ-45 | ||
| Indicators | ||
| LED Indicators | 1 - Link OK / POWER - Transmitter | |
| 1 - Reset - Transmitter | ||
| 1 - Link OK / POWER - Receiver | ||
| 1 - Reset - Receiver | ||
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.6 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 1.5 A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 10 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 0% - 80 % | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Aluminum | |
| Product Height | 1.1 in [2.8 cm] | |
| Product Length | 5.1 in [13 cm] | |
| Product Width | 3.8 in [97 mm] | |
| Weight of Product | 33.1 oz [939 g] | |
| Packaging Information | ||
| Package Height | 3.4 in [86 mm] | |
| Package Length | 9.7 in [24.6 cm] | |
| Package Width | 11.6 in [29.5 cm] | |
| Shipping (Package) Weight | 4.5 lb [2 kg] | |

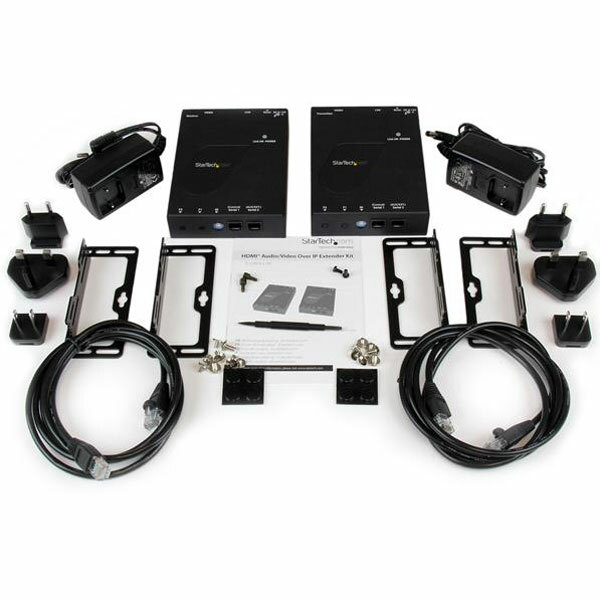

| What's in the Box | ||
| Included in Package | 1 - HDMI over IP transmitter | |
| 1 - HDMI over IP receiver | ||
| 2 - mounting brackets | ||
| 2 - universal power adapter (NA / EU / UK / AU) | ||
| 2 - foot pad set | ||
| 1 - instruction manual | ||
| SKU | ST12MHDLAN |
| Barcode # | 65030850759 |
| Brand | Startech |
| Shipping Weight | 2.0300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.001500000m3 |
