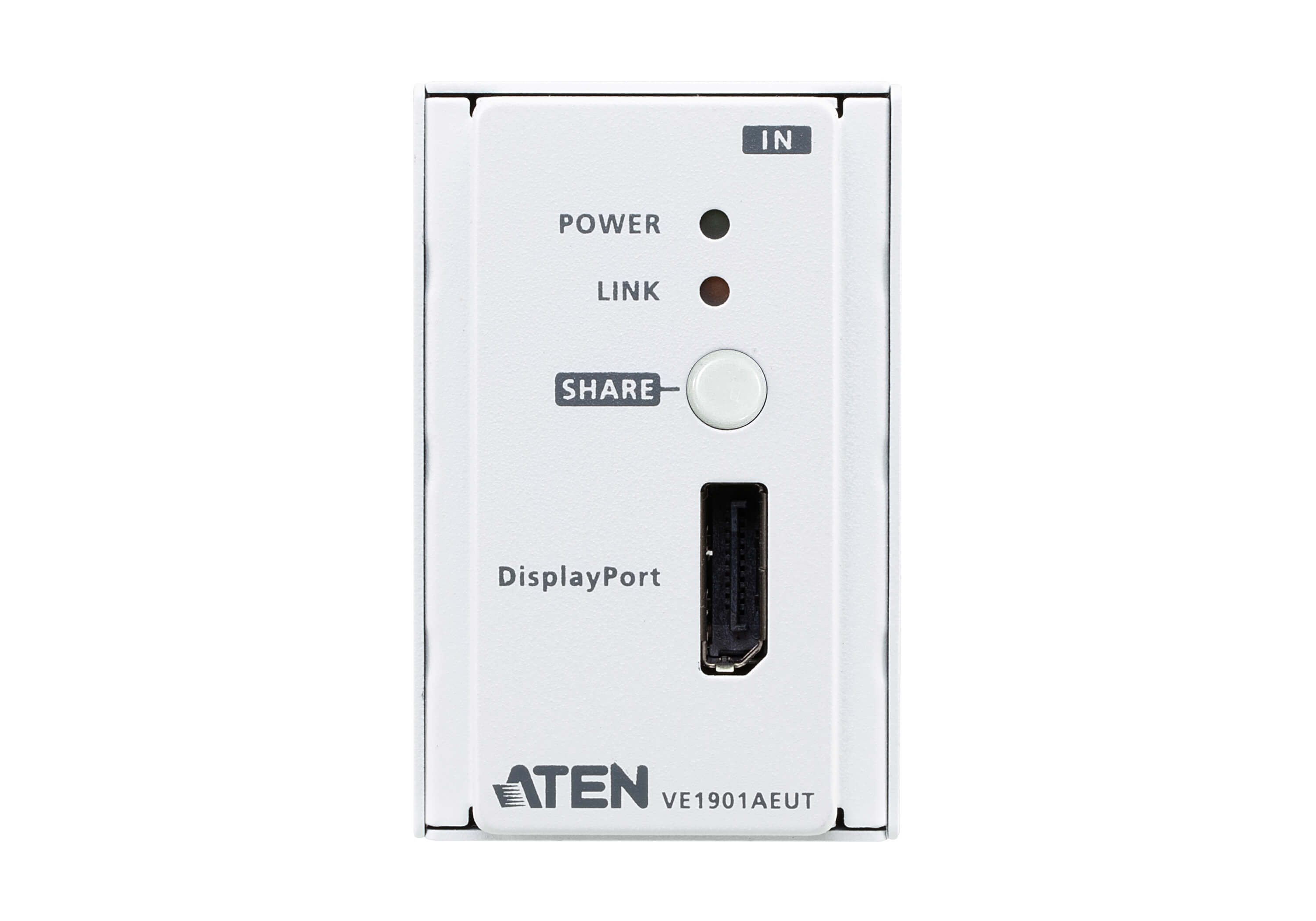

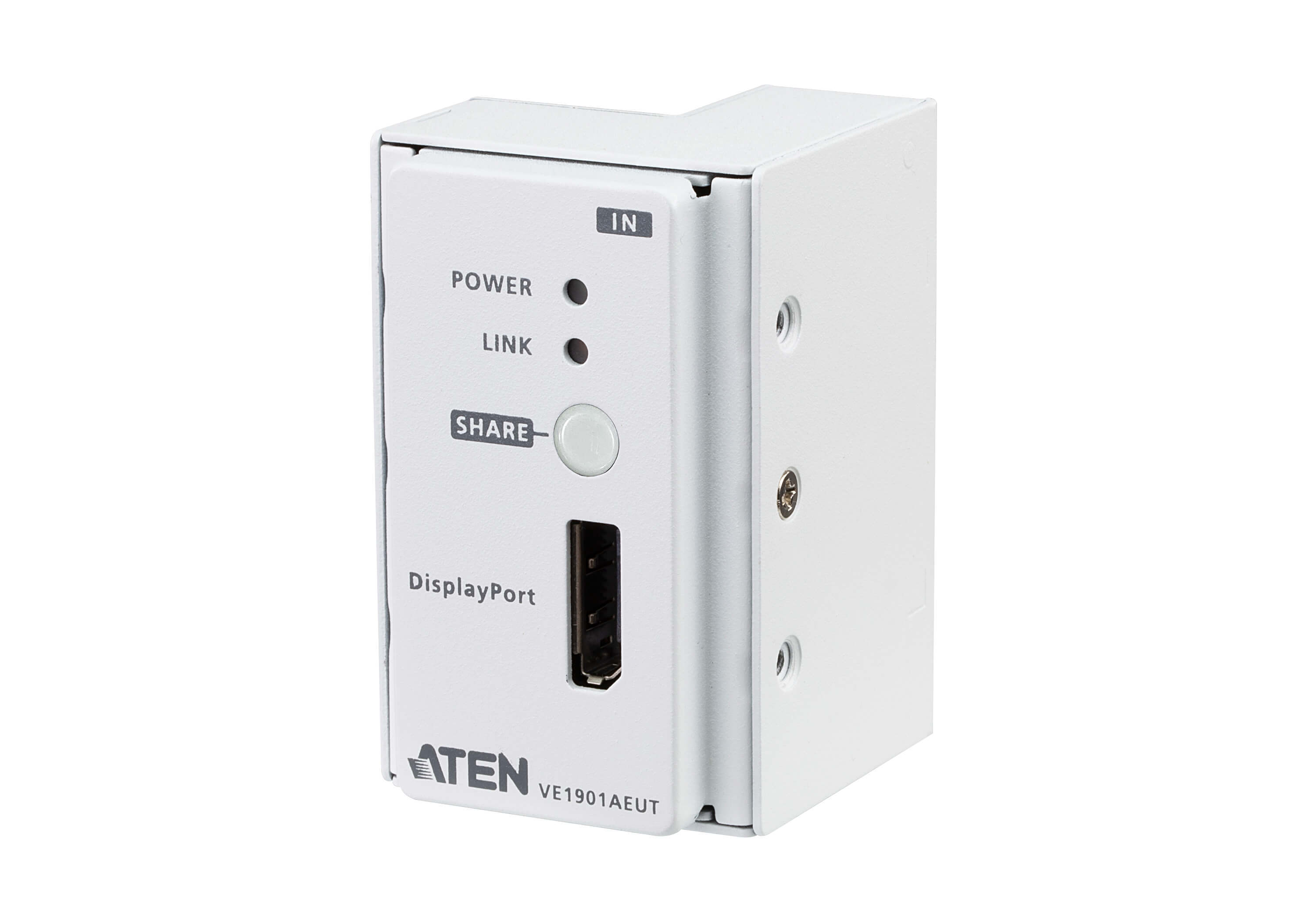

The ATEN VE1901AEUT DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.

The VE1901AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting the needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1901AEUT receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.

With the share function, the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1901AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.

Package Contents

  • 1x VE1901AEUT DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
  • 1x 5-pin terminal block
  • 1x rubber pad set (4 pcs)
  • 1x faceplate
  • 2x pan head screws
  • 4x PF screws
  • 1x power adapter
  • 1x user instructions

(VE1901AEUT-AT-U)

Video Input
Interfaces1 x DisplayPort Female (Black)
Impedance100?
Max. Distance3 m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock297 MHz
ComplianceDisplayPort (Deep Color, 4K)
HDCP Compliant
Max. Resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x DisplayPort Female (Black)
Control

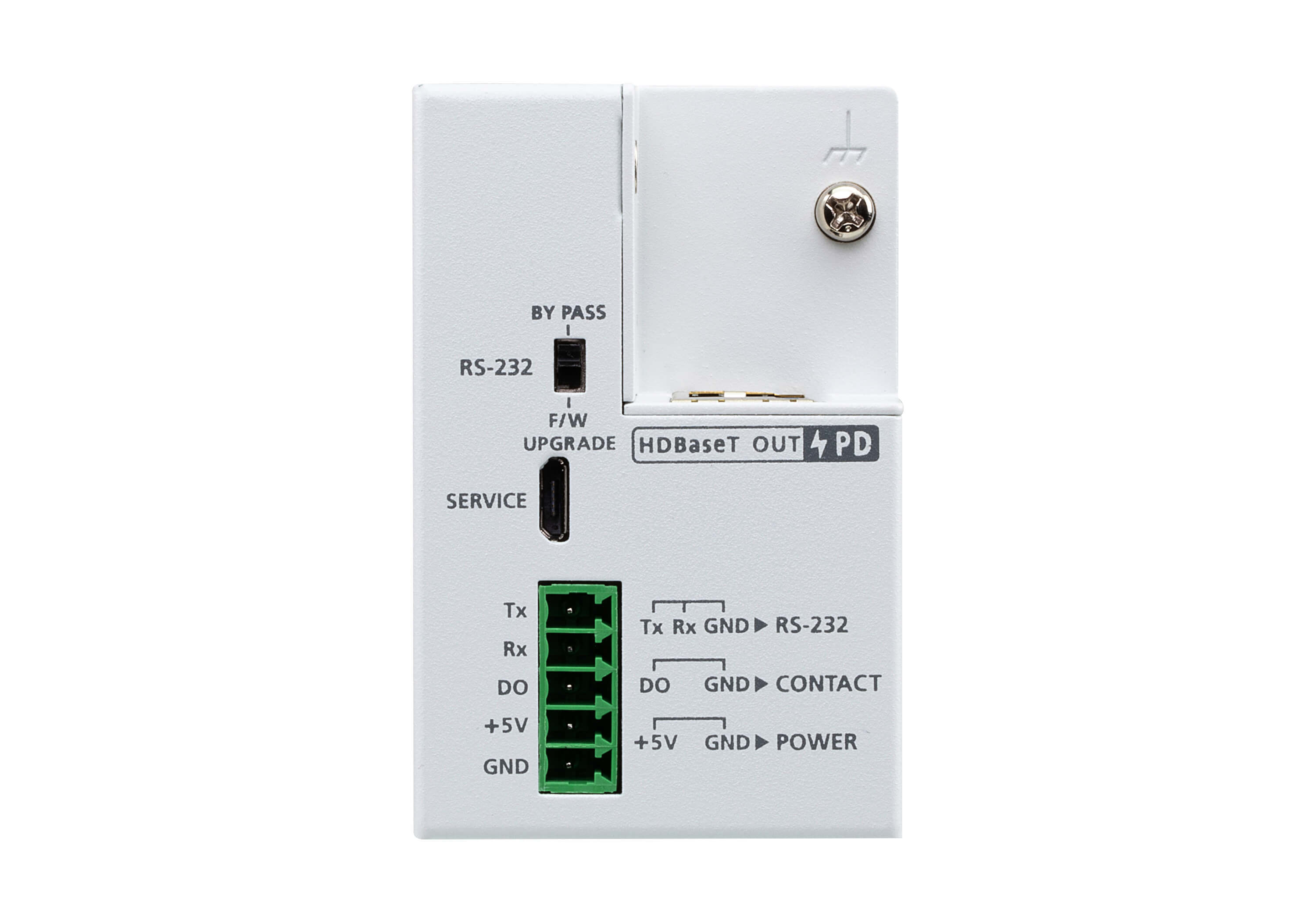

RS-232 Channel1 x Terminal Block (3 pole, TX/RX/GND, Green)
Contact Out1 x Terminal Block (2 pole, DO/GND, Green)
Connectors
Unit To Unit1 x RJ-45 Female
Power1 x Terminal Block (2 pole, +5V/GND, Green) or
1 x RJ-45 Female (POH)
Power ConsumptionDC5V:2.97W:14BTU
POH:3.71W:17BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0% - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.20 kg ( 0.44 lb )
Dimensions (L x W x H)6.86 x 4.44 x 5.00 cm
(2.7 x 1.75 x 1.97 in.)
Faceplate Dimensions (L x W x H)8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU VE1901AEUT-AT-U
Barcode # 4710469340581
Brand ATEN
Shipping Weight 0.2000kg
Manufacturer Warranty: 3 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

ATEN VE1901AEUT-AT-U DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH

Model # VE1901AEUT-AT-U

  • SKU: VE1901AEUT-AT-U

$408.00
$424.00
SAVE $16.00 (4%)
