As a complete end-to-end solution, the VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096 x 2160 / 3840 x 2160 @ 30 Hz (4 : 4 : 4) up to 40 m via a Cat 6 cable.Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces.Crystal-clear video presentation is guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers. Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e / 6 cable._x000D_
_x000D_
VE1821R VE1821T_x000D_
Video Output 1 x HDMI Type A Female (Black) 100 Î© Max. Distance 3 m_x000D_
Video_x000D_
Max. Data Rate 10.2Gbps (3.4Gbps per lane)_x000D_
Max. Pixel Clock 340 MHz_x000D_
Compliance HDMI (3D, Deep Color, 4K)HDCP1.4 Compatible_x000D_
Max. Resolutions / Distance Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910);_x000D_
*4K supported:4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)_x000D_
Audio _x000D_
1 x HDMI Type A Female (Black)_x000D_
IR Channel 1 x Mini Stereo Jack Female (Black); Single way bypass channel from receiver to transmitter_x000D_
_x000D_
Connectors_x000D_
Unit To Unit 1 x RJ-45 Female_x000D_
_x000D_
Environmental_x000D_
Operating Temperature 0 - 40Â°C._x000D_
Storage Temperature -20 - 60Â°C_x000D_
Humidity 20 - 90% RH, Non-Condensing_x000D_
_x000D_
Physical Properties_x000D_
Housing Metal

(VE1821-AT-G)

SKU	VE1821-AT-G
Barcode #	4710469342790
Brand	ATEN
Shipping Weight	0.6400kg
Shipping Width	0.080m
Shipping Height	0.224m
Shipping Length	0.140m

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

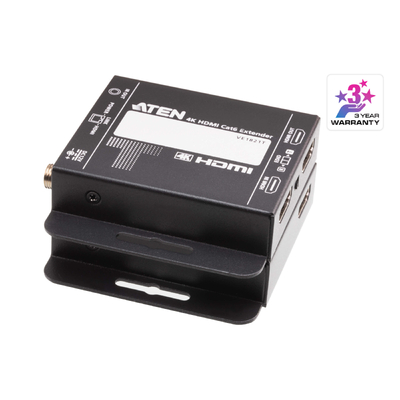

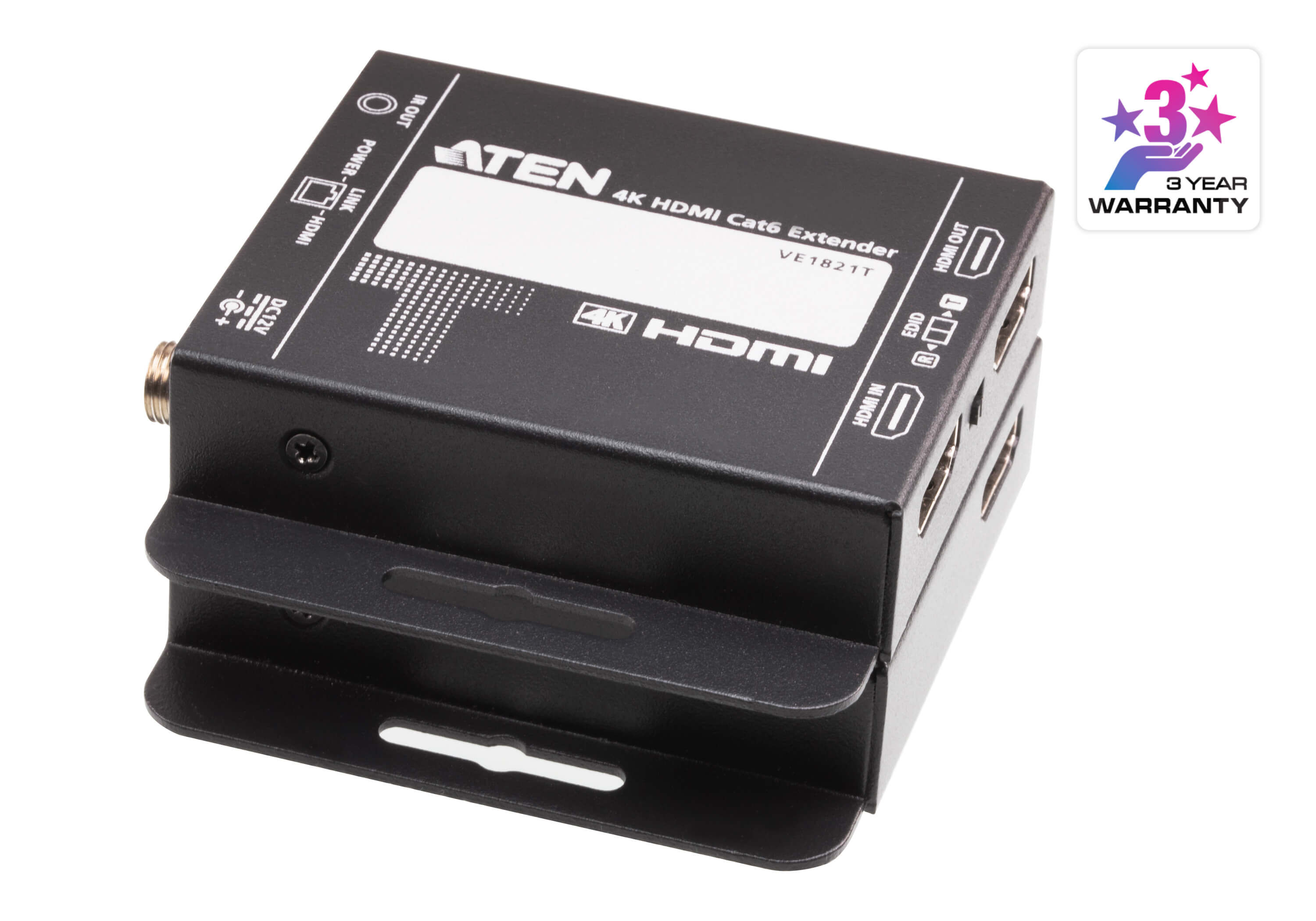

Aten 4K HDMI Cat6 Extender Kit with Power-Over-Cable Technology

Name: Aten 4K HDMI Cat6 Extender Kit with Power-Over-Cable Technology
Brand: ATEN
SKU: VE1821-AT-G
Price: 132 AUD
Availability: OutOfStock
