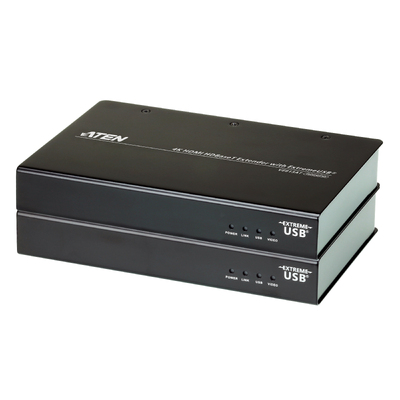

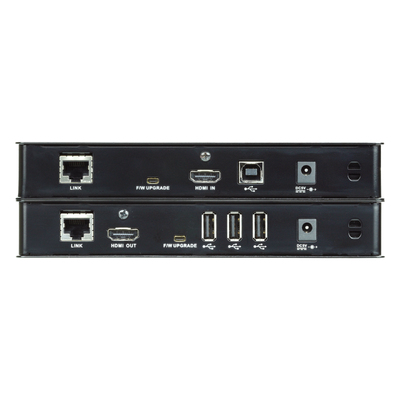

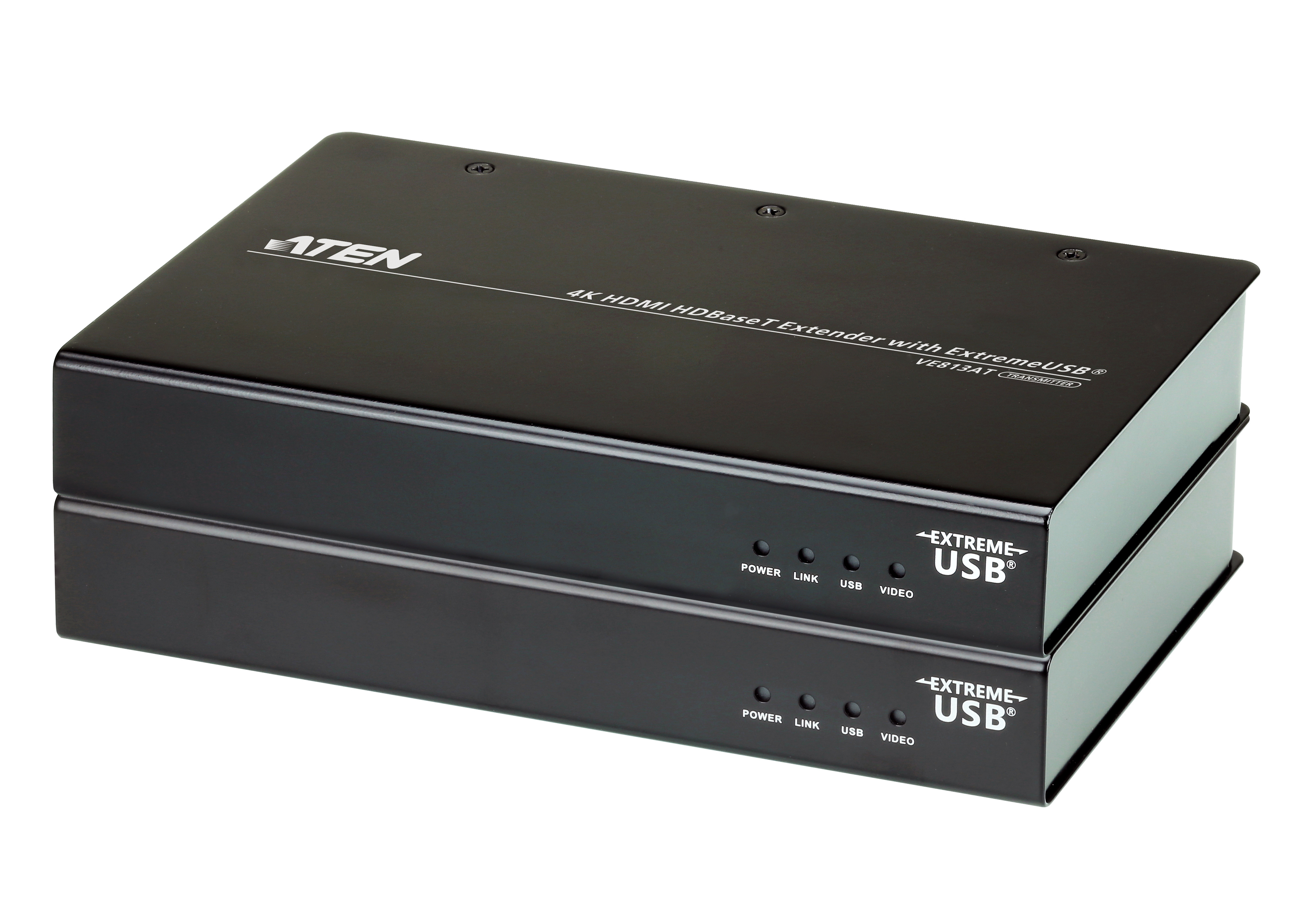

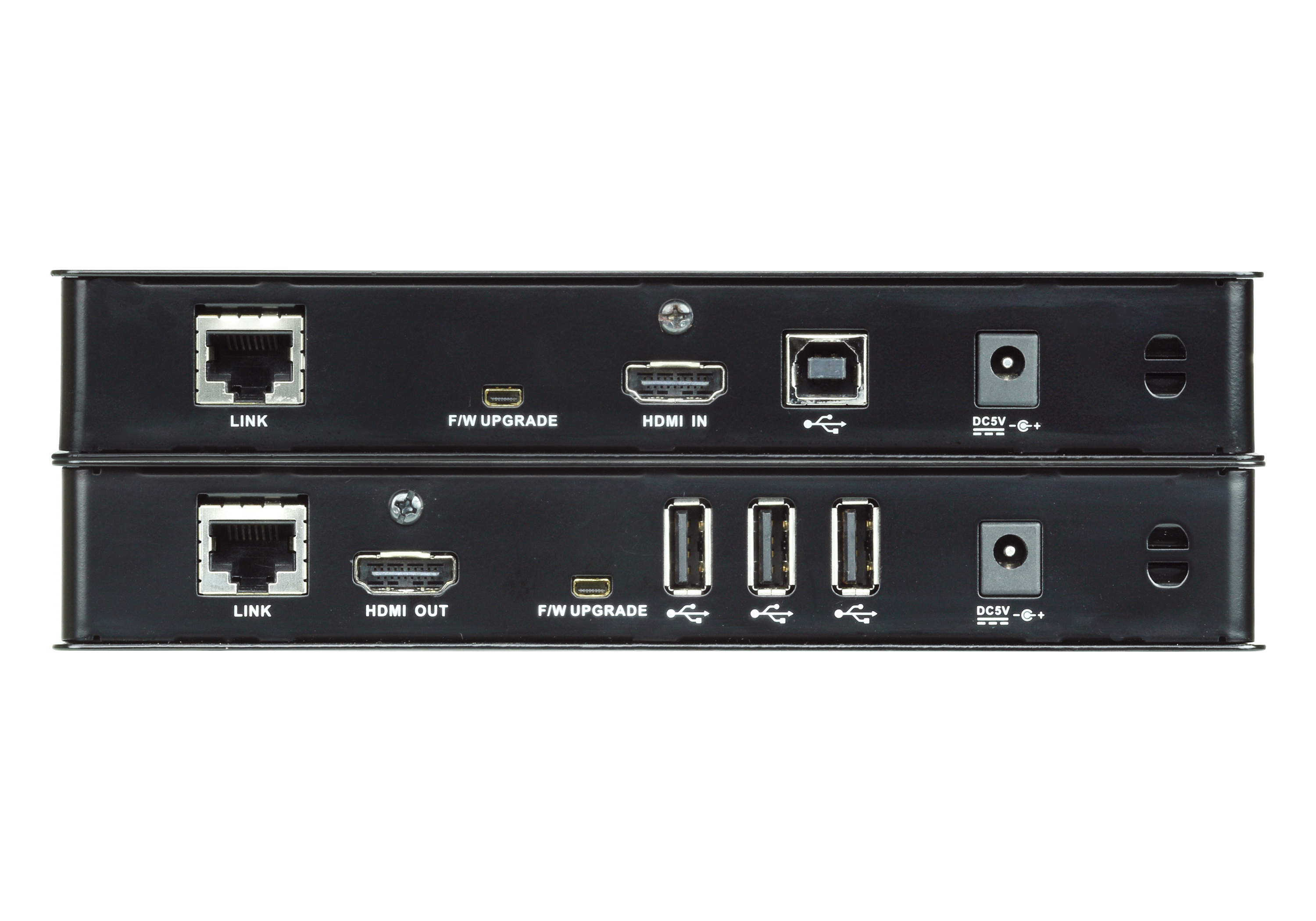

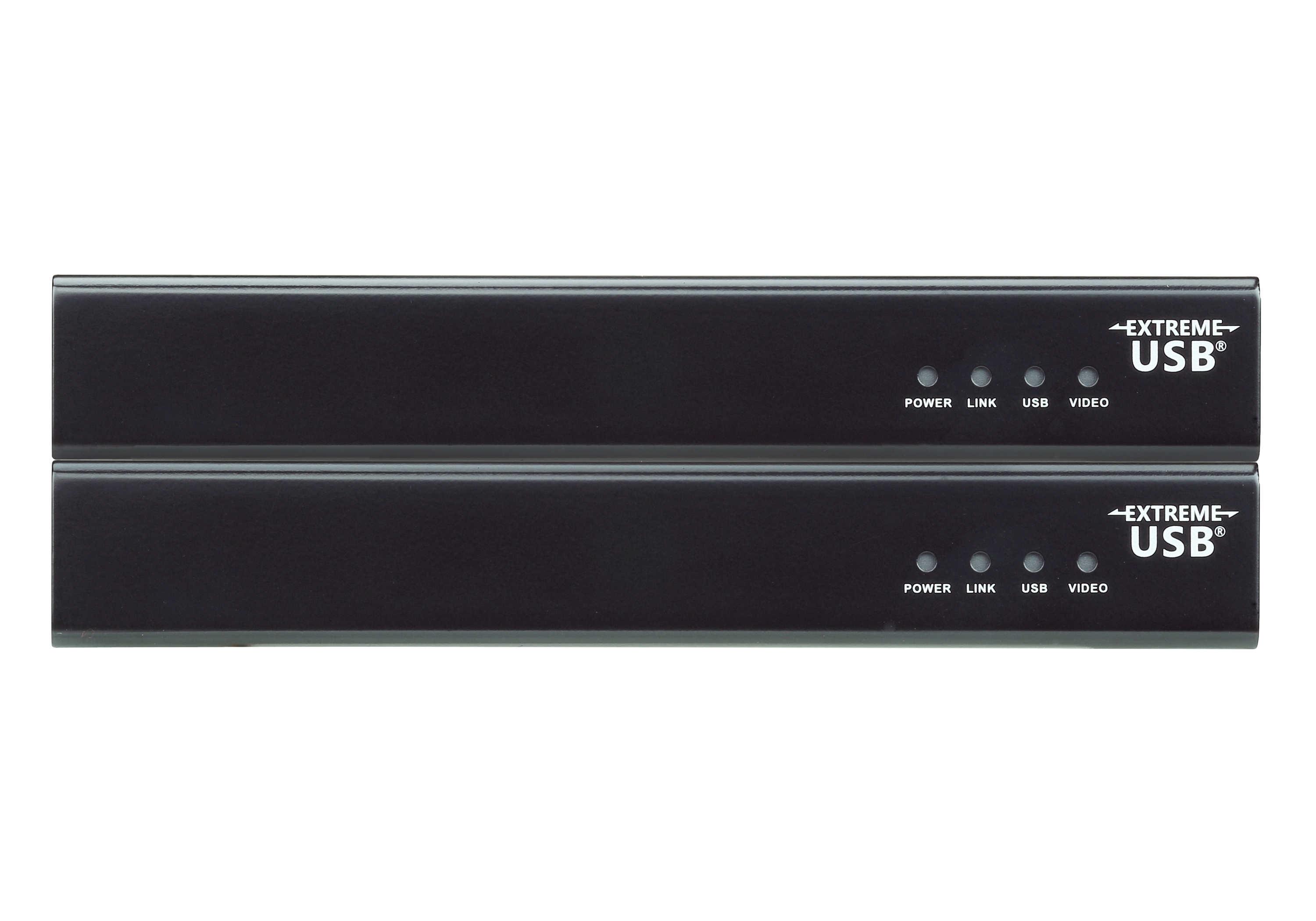

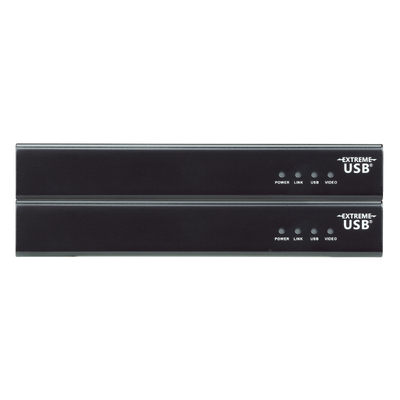

ATEN VE813A-AT-U 4K HDMI HDBaseT Extender with ExtremeUSB® (4K@100m) (HDBaseT Class A)
Model # VE813A-AT-U
-
SKU: VE813A-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC
Package Contents
- 1x VE813AT 4K HDMI HDBaseT Extender with ExtremeUSB® (Transmitter)
- 1x VE813AR 4K HDMI HDBaseT Extender with ExtremeUSB® (Receiver)
- 1x HDMI Cable (1.8m/6ft)
- 1x USB Cable (1.8m/6ft)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
(VE813A-AT-U)
| Function | VE813AR | VE813AT |
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 3 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Max. Distance | 3 m | N/A |
| Video | ||
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | Up to 340 MHz | Up to 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | - | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | - |
| Power Consumption | DC5V:5.75WBTU | DC5V:5.75WBTU |
| Physical Properties | ||
| Weight | 0.62 kg ( 1.37 lb ) | 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) | 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) |
| Housing | Metal | Metal |
| Carton Lot | 5 pcs | 5 pcs |
| Control | ||
| USB Channel | 3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 40 Mbps) | 1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 40 Mbps) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | VE813A-AT-U |
| Barcode # | 4719264645112 |
| Brand | ATEN |
| Shipping Weight | 1.5000kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
