VS182A-AT-U

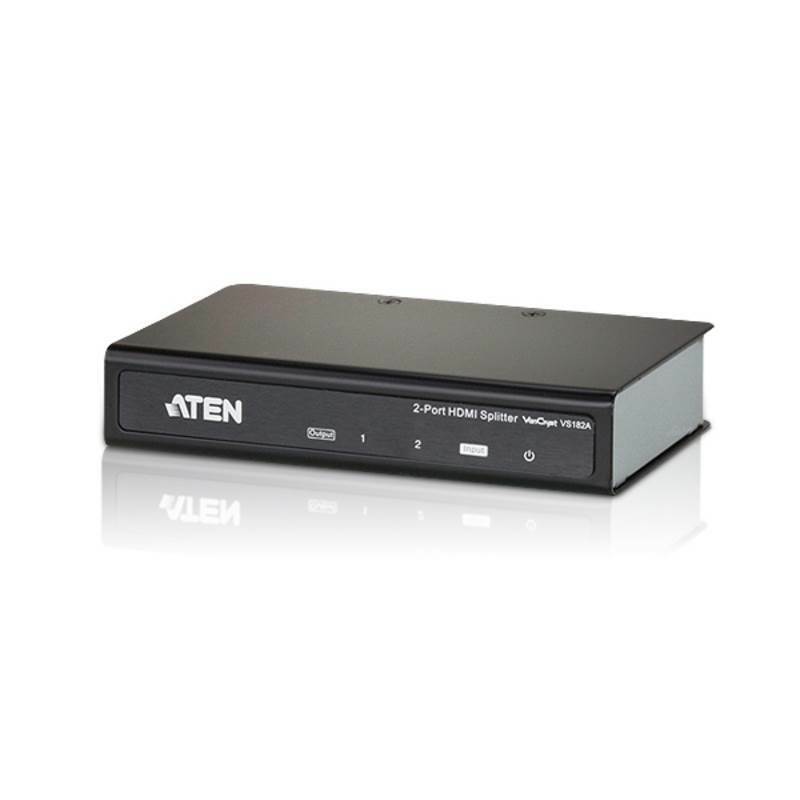

ATEN VanCryst 2 Port HDMI Video Splitter - 1 x HDMI In / 2 x HDMI Out - LED Indicators - HDTV Resolutions Up to 4k/HDCP 1.4 compatible/All-Metal Casing/Plug-and-Play - 1 Year Warranty - VS182-AT-U

(VS182A-AT-U)

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance Up to 15 m
Audio
Input 1 x HDMI Type A Female (Black)
Output 2 x HDMI Type A Female (Black)
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:3.12W:15BTU
Environmental
Operating Temperature 0-50 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.31 kg ( 0.68 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


SKU VS182A-AT-U
Barcode # 672792004360
Brand Aten
Shipping Weight 0.7200kg
Shipping Width 0.059m
Shipping Height 0.160m
Shipping Length 0.239m
Shipping Cubic 0.002256000m3

Manufacturer Warranty: 1 Year Manufacturer Warranty
