ALOGIC · Available from DeviceDeal

ALOGIC HD4KSPL04 4-Port HDMI 2.0 4K Splitter

A four-port HDMI 2.0 splitter designed to distribute one compatible HDMI source to four displays simultaneously, with up to 3840 × 2160 at 60Hz video, HDCP 2.2 and 7.1-channel surround-sound wording.

1 source to 4 displaysHDMI 2.04K 60HzHDCP 2.2

Compatibility check: Source conflict: the product name and narrative describe one HDMI input to four outputs, while the structured source reverses the labels as HDMI × 4 input and HDMI × 1 output. Confirm the physical port layout before purchase. One feature line also says HDMI 2.2 where the narrative identifies HDCP 2.2.

ALOGIC HD4KSPL04 4-Port HDMI 2.0 4K Splitter

Product overview

The HD4KSPL04 is described as distributing one HDMI signal to four displays at the same time. The supplied narrative lists HDMI 2.0, HDCP 2.2, up to 3840 × 2160 at 60Hz and 7.1-channel surround sound. It uses a grey and orange metal housing with source and power LEDs and includes a multi-country power adapter and user manual. The reversed structured input/output labels remain flagged for review.

One source to four displaysThe product name and narrative describe simultaneous distribution of one HDMI signal to four displays.

Up to 4K 60HzMaximum listed video mode is 3840 × 2160 at 60Hz.

HDMI 2.0 and HDCP 2.2HDMI 2.0 and HDCP 2.2 are stated in the narrative source.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised ALOGIC reseller in Australia. Purchase with the supplied manufacturer warranty and local DeviceDeal support.

Frequently asked questions

What does the splitter do?

The product name and narrative state that it distributes one HDMI source to four displays simultaneously.

What maximum resolution is listed?

Up to 3840 × 2160 at 60Hz.

Which standards are supplied?

The narrative lists HDMI 2.0 and HDCP 2.2.

Why is the port layout flagged?

The structured source says four inputs and one output, which conflicts with the product name and narrative. Confirm the physical ports.

What is included?

The splitter, a multi-country 5V/1A adapter and a user manual.

(HD4KSPL04)

Key features

ALOGIC HD4KSPL04 4-Port HDMI 2.0 4K Splitter

A concise view of the supplied product features.

One source to four displaysThe product name and narrative describe simultaneous distribution of one HDMI signal to four displays.

Up to 4K 60HzMaximum listed video mode is 3840 × 2160 at 60Hz.

HDMI 2.0 and HDCP 2.2HDMI 2.0 and HDCP 2.2 are stated in the narrative source.

7.1 surround sound7.1-channel surround-sound wording is supplied.

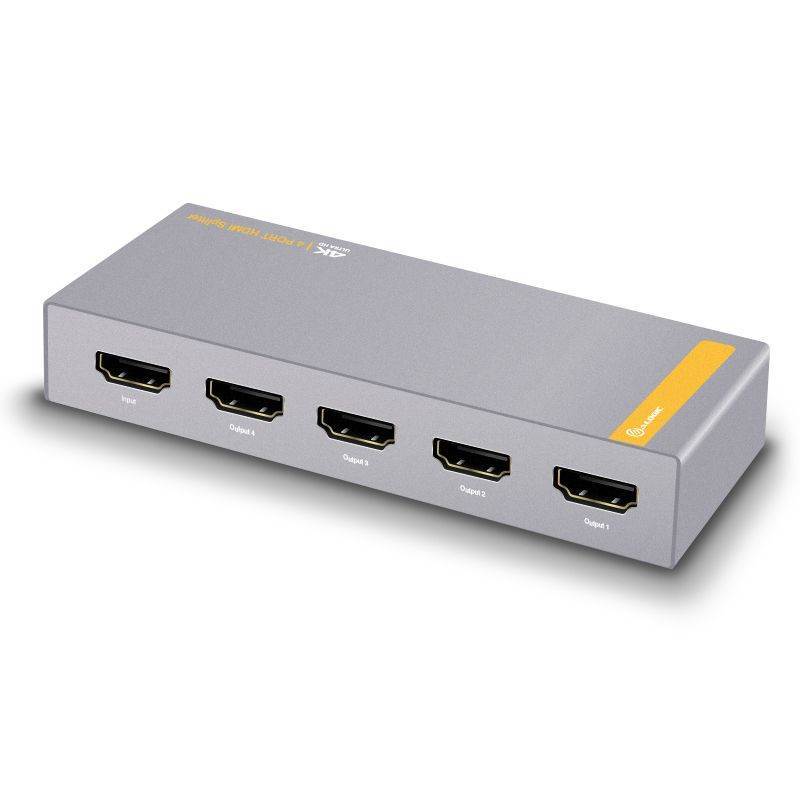

Metal housingGrey and orange metal enclosure with source and power LEDs.

Source conflict retainedStructured source reverses the one-input/four-output arrangement and one line says HDMI 2.2 instead of HDCP 2.2.

Product specifications

ALOGIC HD4KSPL04 4-Port HDMI 2.0 4K Splitter

Brand	ALOGIC
Model	HD4KSPL04
Product type	4-port HDMI splitter
Function in product name/narrative	1 HDMI source to 4 displays simultaneously
Structured input/output fields	Input: HDMI × 4; Output: HDMI × 1 (conflicts with narrative)
HDMI version	HDMI 2.0
Content protection	HDCP 2.2 in narrative
Additional conflicting wording	One supplied feature line says HDMI 2.2
Maximum resolution	3840 × 2160 at 60Hz
Audio wording	7.1-channel surround sound
Power	5V/1A
Housing	Grey/orange metal
Dimensions	123 × 51 × 20mm
Weight	156g
Indicators	Source and power LEDs
In the box	Splitter; multi-country power adapter; user manual
Warranty	1 Year Manufacturer Warranty

SKU	HD4KSPL04
Barcode #	9350784015273
Brand	ALOGIC
Shipping Weight	0.4500kg
Shipping Width	0.051m
Shipping Height	0.020m
Shipping Length	0.123m
Shipping Cubic	0.000125000m3
