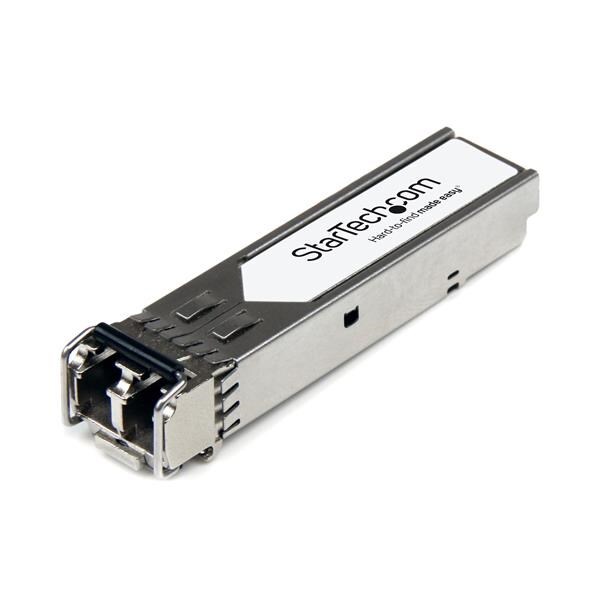

The PLUS-LR-ST is a Palo Alto Networks PLUS-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 0 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1310
  • Maximum Data Transfer Rate: 10 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 0 km (6.2 mi)
  • MTBF: 1,386,624,697 hours
  • Power Consumption: <1.3W
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

100% compatibility with Palo Alto Networks PLUS-LR guaranteed - Lifetime Warranty on all StarTech.com SFP modules - Maximum transfer distance of 10 km (6.2 mi) - SFP+ (Mini-GBIC) meets or exceeds OEM specifications - SFP+ transceiver module complies with MSA industry standards - 10GBase-LR Fiber transceiver has low power consumption:

(PLUS-LR-ST)

Specifications

Warranty Information Warranty Lifetime
Material Steel
Hardware Compatible Brand Palo Alto Networks
Industry Standards IEEE 802.3ae 10GBASE-LR
Packaging Information Package Height 1.2 in [31 mm]
Package Length 4.5 in [11.5 cm]
Shipping (Package) Weight 1.8 oz [50 g]
Package Width 3.5 in [90 mm]
Performance Power Consumption (In Watts) < 1.3W
Maximum Data Transfer Rate 10.31 Gbps
DDM Yes
Max Transfer Distance 10 km (6.2 mi)
MTBF 1,386,624,697 hours
Wavelength 1310nm
Type Single Mode
Compatible Networks 10 Gbps
Fiber Operating Mode Full-Duplex
Physical Characteristics Product Height 0.5 in [13.7 mm]
Product Length 0.5 in [13.9 mm]
Weight of Product 0.7 oz [21 g]
Product Width 2.3 in [58.4 mm]
What's in the Box 1 - Included in Package SFP+ Transceiver
SKU PLUS-LR-ST
Barcode # 65030885638
Brand STARTECH
Shipping Weight 0.0500kg
Manufacturer Warranty: Limited Product Lifetime Warranty
