StarTech USB 3 to DVI Adapter with 1-Port USB Hub - USB32DVIEH
Model # USB32DVIEH
-
SKU: USB32DVIEH
- Pick Up Available
- Australian Warranty
- Checkout Securely

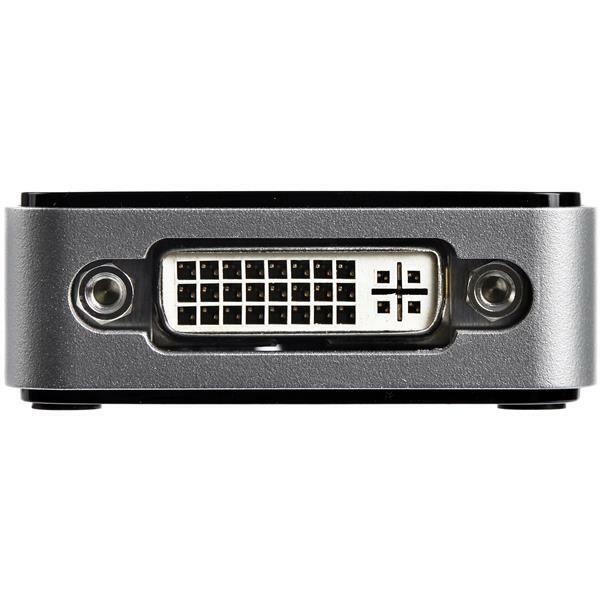

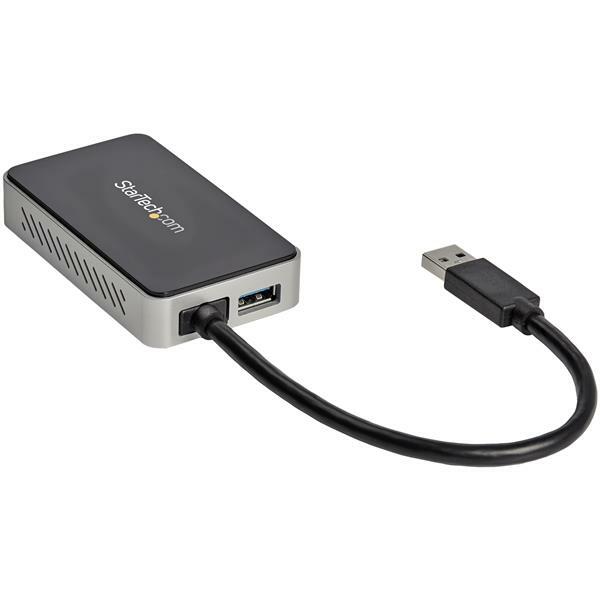

The USB32DVIEH USB 3.0 to DVI Adapter is TAA compliant and turns an available USB 3.0 port into a DVI output port with high resolution 1920x1200 video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the DVI adapter – an ideal workaround for Ultrabook™ or laptop users where only a limited number of USB ports are available.
The USB to DVI adapter functions as an external graphics card, providing a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). The included DVI to VGA adapter also allows you to use this device with a VGA display.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your DVI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
Applications
- The 1-Port USB hub allows the use of another USB device without losing USB connectivity on your Utlrabook or slim laptop
- Add a secondary DVI display and extend your desktop without taking apart your computer to install a new video card
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
(USB32DVIEH)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | No | |
| AV Input | USB 3.0 | |
| AV Output | DVI | |
| VGA | ||
| Chipset ID | Trigger - T6-688SL | |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 | |
| Memory | 16MB | |
| USB Pass-Through | Yes | |
| Performance | ||
| General Specifications | This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. | |
| Maximum Analog Resolutions | 1920x1200 | |
| Maximum Digital Resolutions | 1920x1200 | |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||

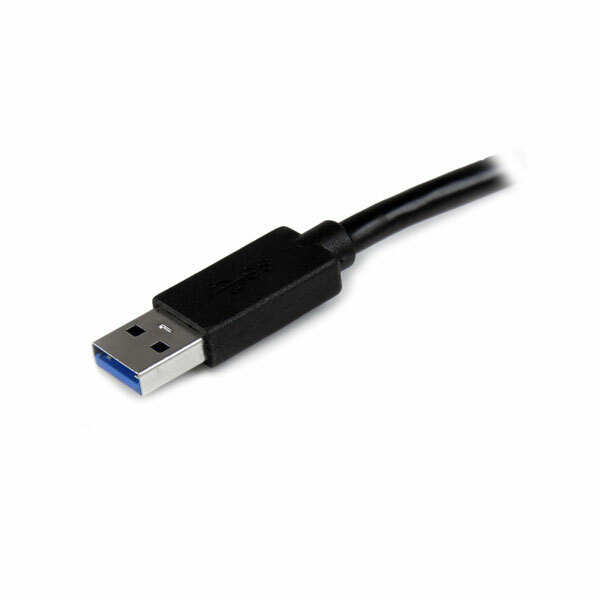

| Connector A | 1 - USB Type-A (9 pin) USB 3.0 Male | |
| Connector B | 1 - DVI-I (29 pin) Female | |
| 1 - USB Type-A (9 pin) USB 3.0 Female | ||
| Software | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) | |
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic® | |
| Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB | |
| Not intended for gaming | ||
| Power | ||
| Power Source | USB-Powered | |
| Environmental | ||
| Humidity | < 85% non-condensing | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -10°C to 75°C (14°F to 167°F) | |
| Physical Characteristics | ||
| Cable Length | 6.3 in [160 mm] | |
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 0.7 in [1.7 cm] | |
| Product Length | 3.3 in [85 mm] | |
| Product Width | 1.9 in [49 mm] | |
| Weight of Product | 2.7 oz [76 g] | |
| Packaging Information | ||
| Package Height | 1.5 in [38 mm] | |
| Package Length | 5.6 in [14.1 cm] | |
| Package Width | 8.2 in [20.8 cm] | |
| Shipping (Package) Weight | 6.4 oz [182 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 to DVI Adapter | |
| 1 - DVI to VGA adapter | ||
| 1 - Software CD | ||
| 1 - Manual | ||
| SKU | USB32DVIEH |
| Barcode # | 65030849760 |
| Brand | Startech |
| Shipping Weight | 0.2600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
