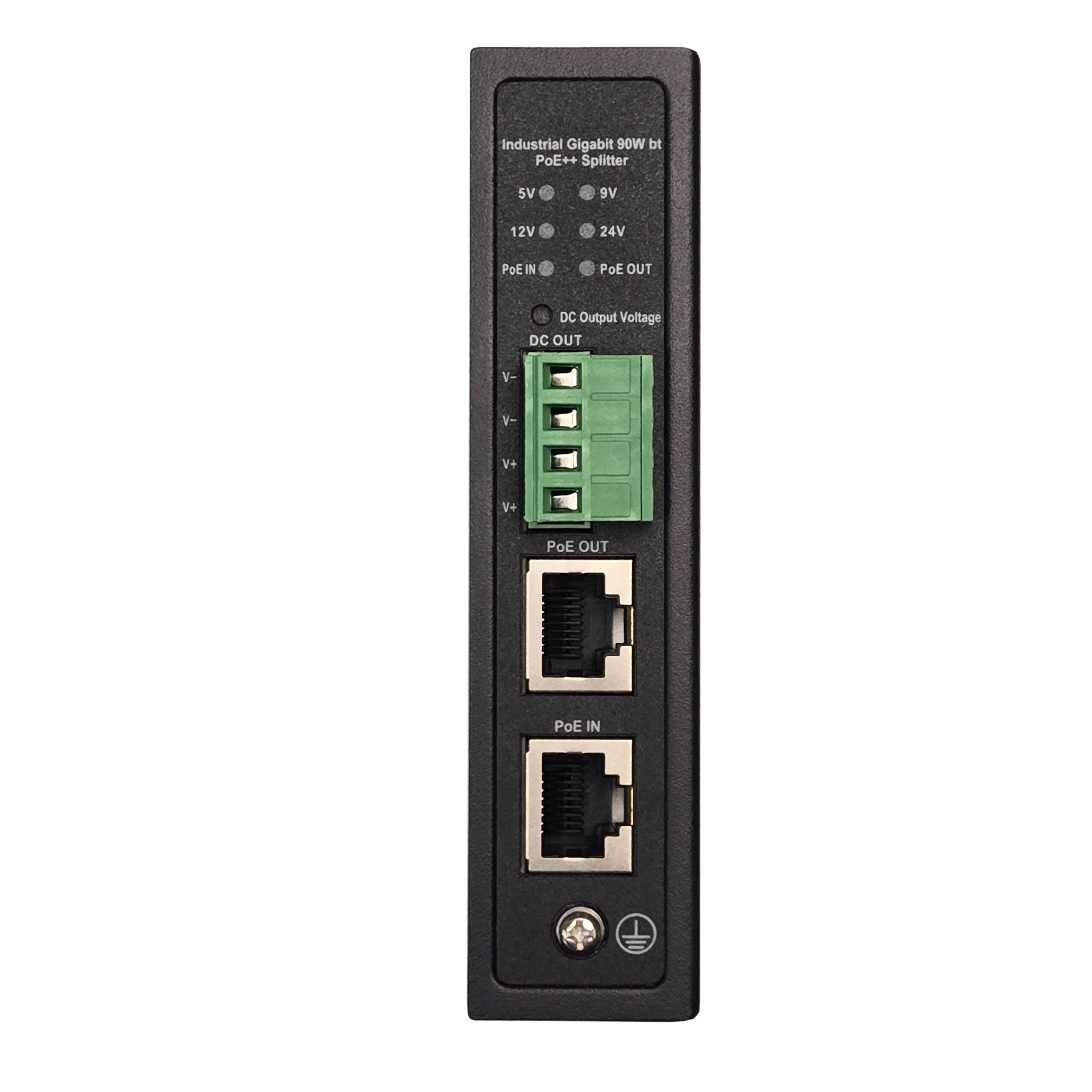

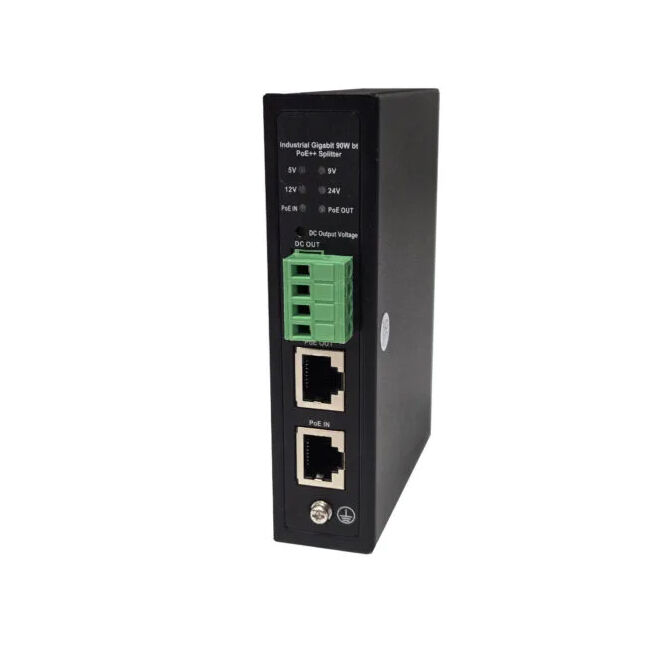

Tycon Power POE-SPLT-BT-UNI-P Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max.

Features

• PoE Splitter
• Ethernet compatible
• Combined Outputs up to 72W with 90W input
• 2 pair and 4 pair input compatible
• Short Circuit, Over Current, Over Temperature Protections

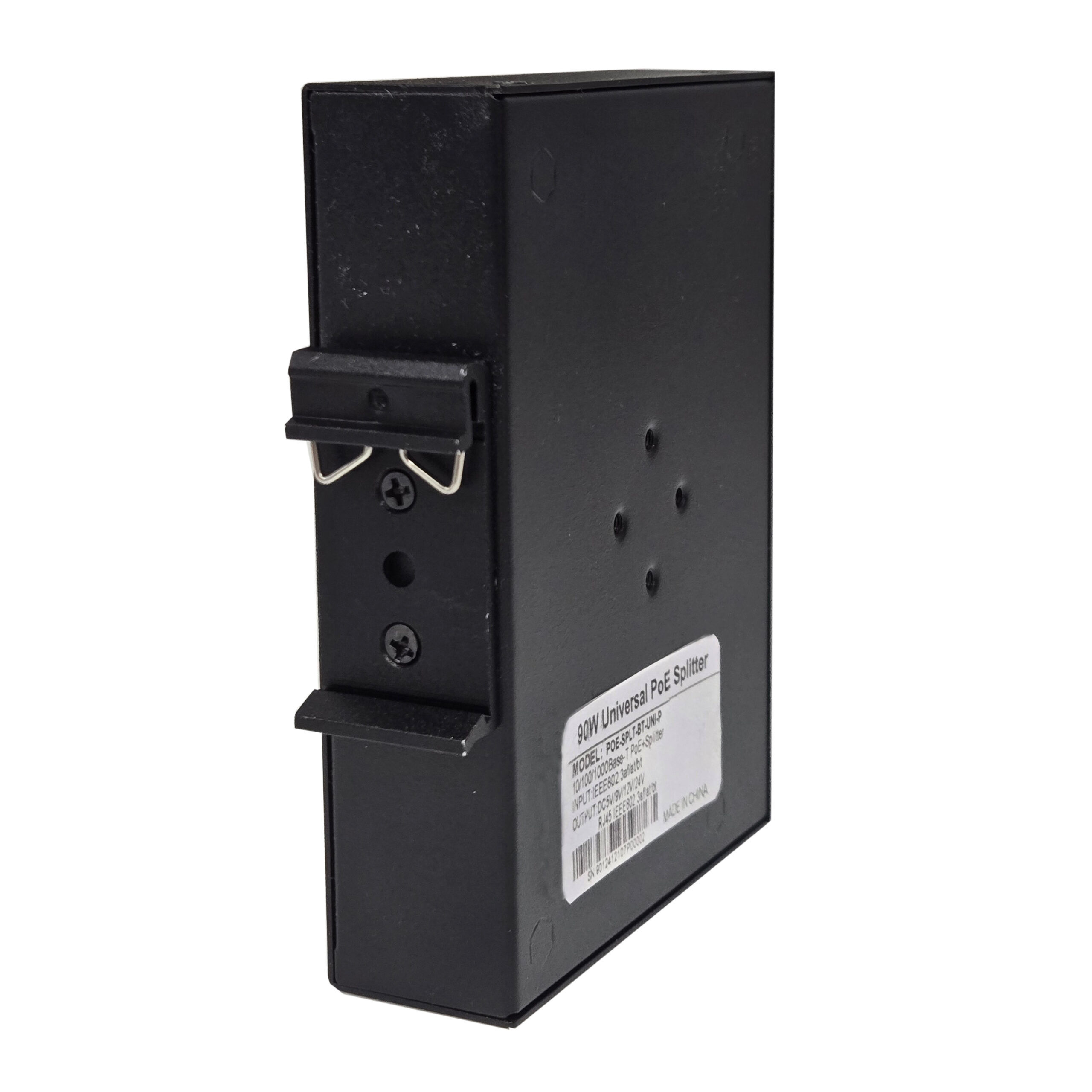

• DIN Mount Metal Housing
• Industrial Temperature Operation: -40C to +75C

Application:

The Tycon universal PoE Splitter POE-SPLT-BT-UNI-P is the perfect device to supply DC power and data to a device that is not PoE capable. The PoE Splitter works by accepting a combined PoE/Data input and splitting out the Voltage and Data on separate connectors. The POE-SPLT-BT-UNI-P is universal in nature in that it will supply 5V, 9V, 12V or 24V DC to accommodate almost any DC powered equipment. Additionally, the PoE Splitter features an 802.3af/at/bt PoE output with data passthrough so you can power a PoE device and also another device like a sensor or camera.

With it’s hardened Industrial design, the POE-SPLT-BT-UNI-P PoE Splitter, is ready for any application where you need to reliably power a non-PoE device or a PoE Device and another DC powered device.

Description:

The POE-SPLT-BT-UNI-P Active PoE splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an
802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire
terminal connector.

They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the
PoE Splitter total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af
@15.4W the total output power is 12W. Input power should be ~20% higher than required total output power.
