Ubiquiti ECS 48 Poe Switch, Ring Topology, Ensuring Redundancy Within The Switch Stack, *Require Deal Reg*
Model # ECS-48-PoE
-
SKU: ECS-48-PoE
$8,107.00
- Pick Up Available
- Australian Warranty
- Checkout Securely

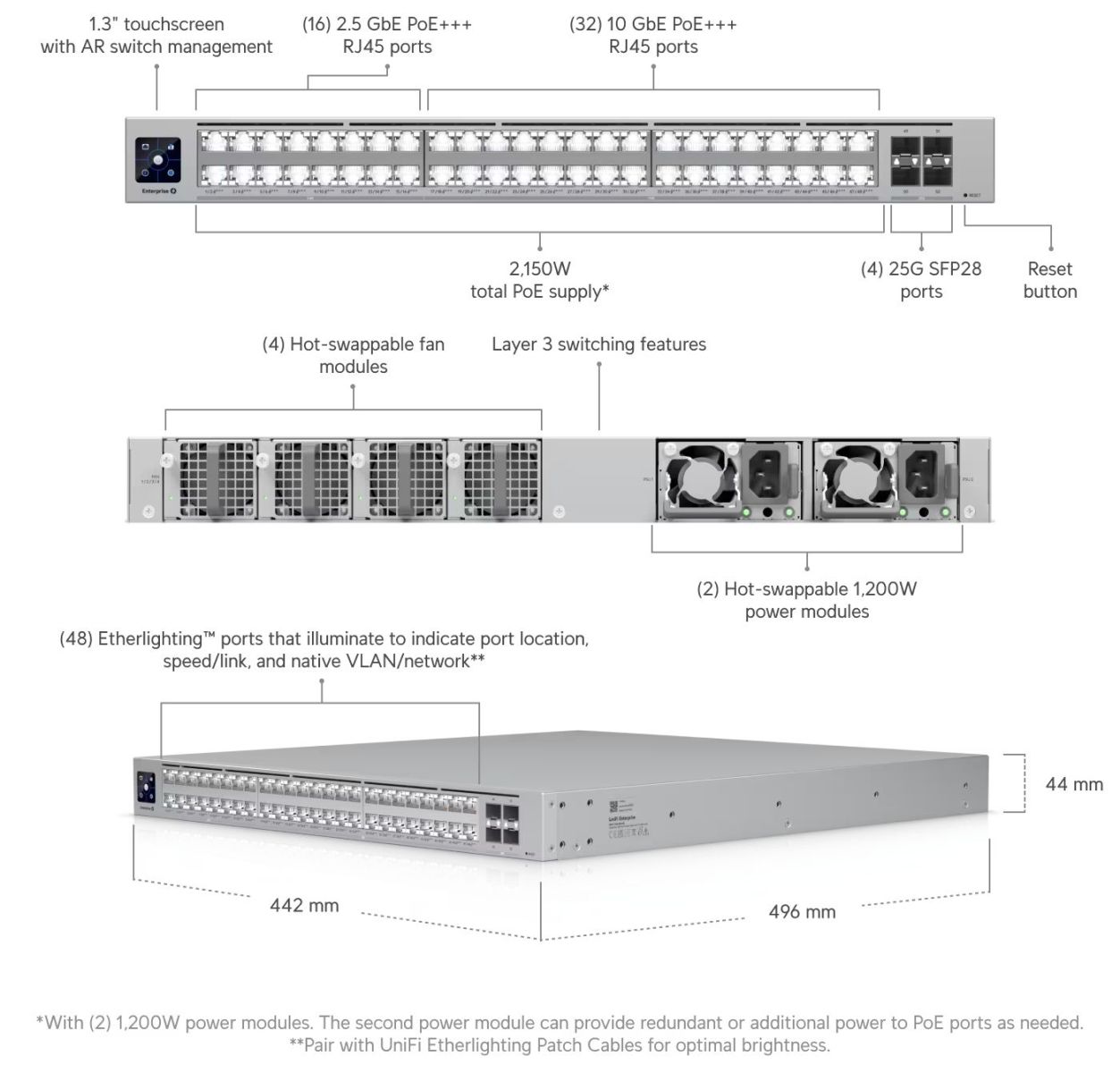

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 ports for high availability system design.
(16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++ ports
(4) 25G SFP28 ports
(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy

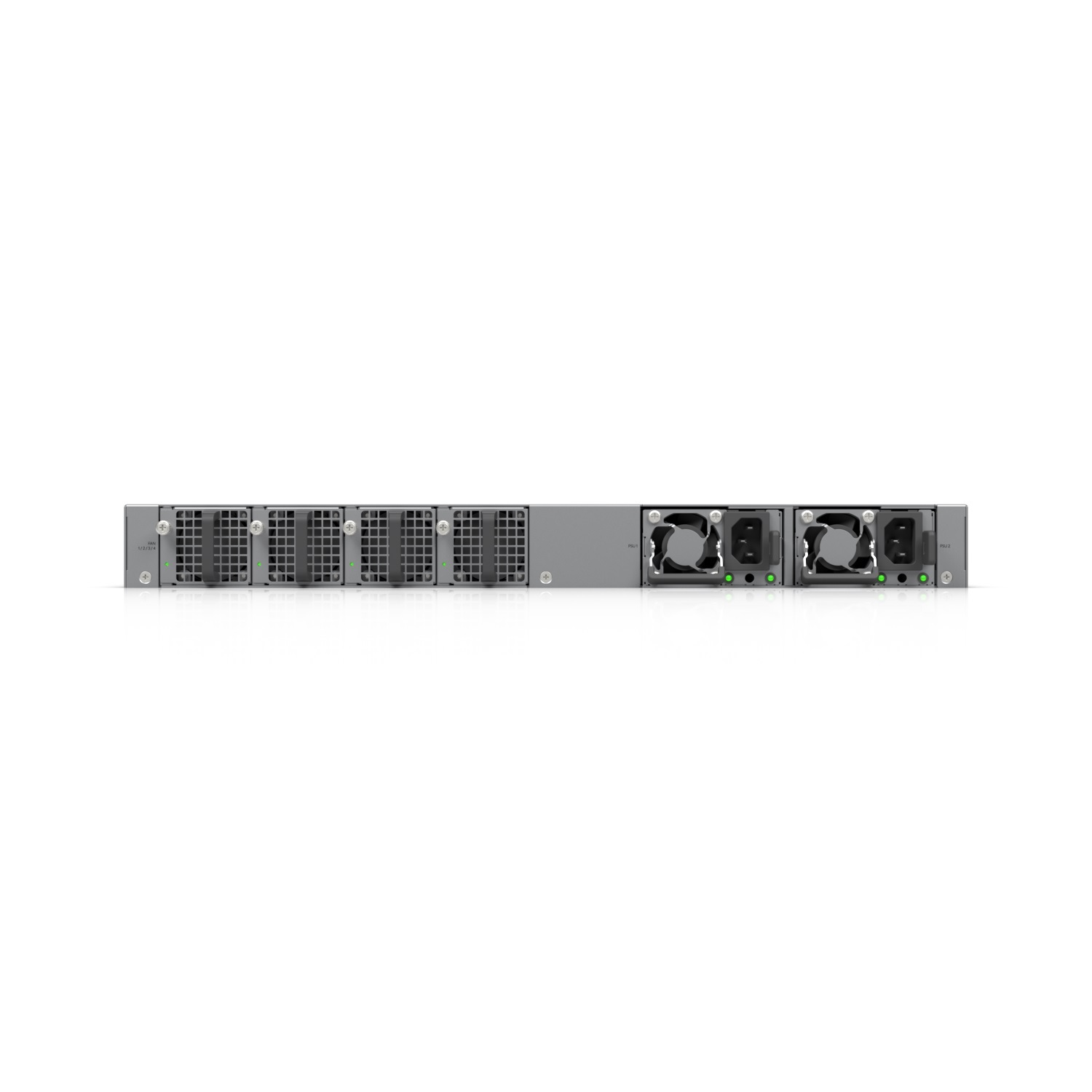

(4) included hot-swappable fan modules, with 3+1 redundancy
.jpg)
.jpg)
(ECS-48-PoE)
| Mechanical | |
|---|---|
| Dimensions | 442 x 496 x 44 mm (17.4 x 19.5 x 1.7") |
| Weight | Without mounting brackets: 9.5 kg (20.9 lb) With mounting brackets: 9.6 kg (21.1 lb) |
| Enclosure material | SGCC steel |

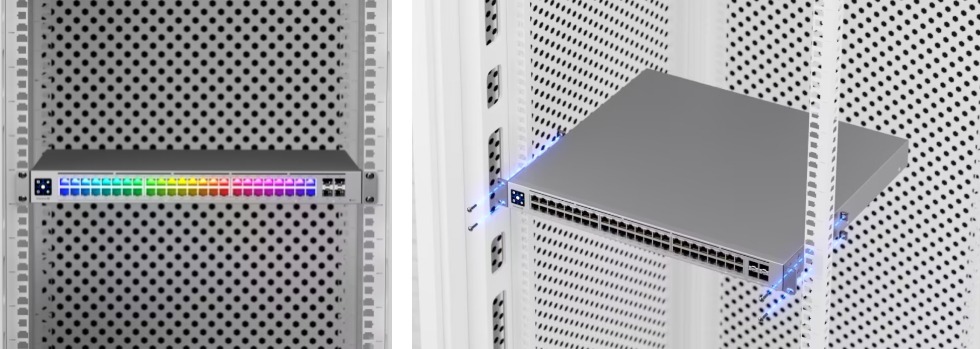

| Slide rails support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) 10 GbE RJ45 ports (16) 2.5 GbE RJ45 ports (4) 25G SFP28 ports |
| PoE interface | (48) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)* *802.3bt Type 4, Class 8 |
| Total non-blocking throughput | 460 Gbps |
| Switching capacity | 920 Gbps |
| Forwarding rate | 684.48 Mpps |
| Power method | (2) Universal input, 100—240V AC, 50/60 Hz |
| Power supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Max. power consumption | Excluding PoE output: 250W Including PoE output: 2,400W |
| Total available PoE | 2,150W* *With (2) 1,200W power modules. The second power module can provide redundant or additional power to PoE ports as needed. |
| Max. PoE wattage per port by PSE | PoE+++: 90W |
| Voltage range PoE mode | 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP28 | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| SKU | ECS-48-PoE |
| Barcode # | 810084699119 |
| Brand | UBIQUITI |
| Shipping Weight | 9.6000kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
