High-density 100G and 25G aggregation Ubiquiti ECS-Aggregation Enterprise Campus 1.8 Tbps 100G/25G Switch

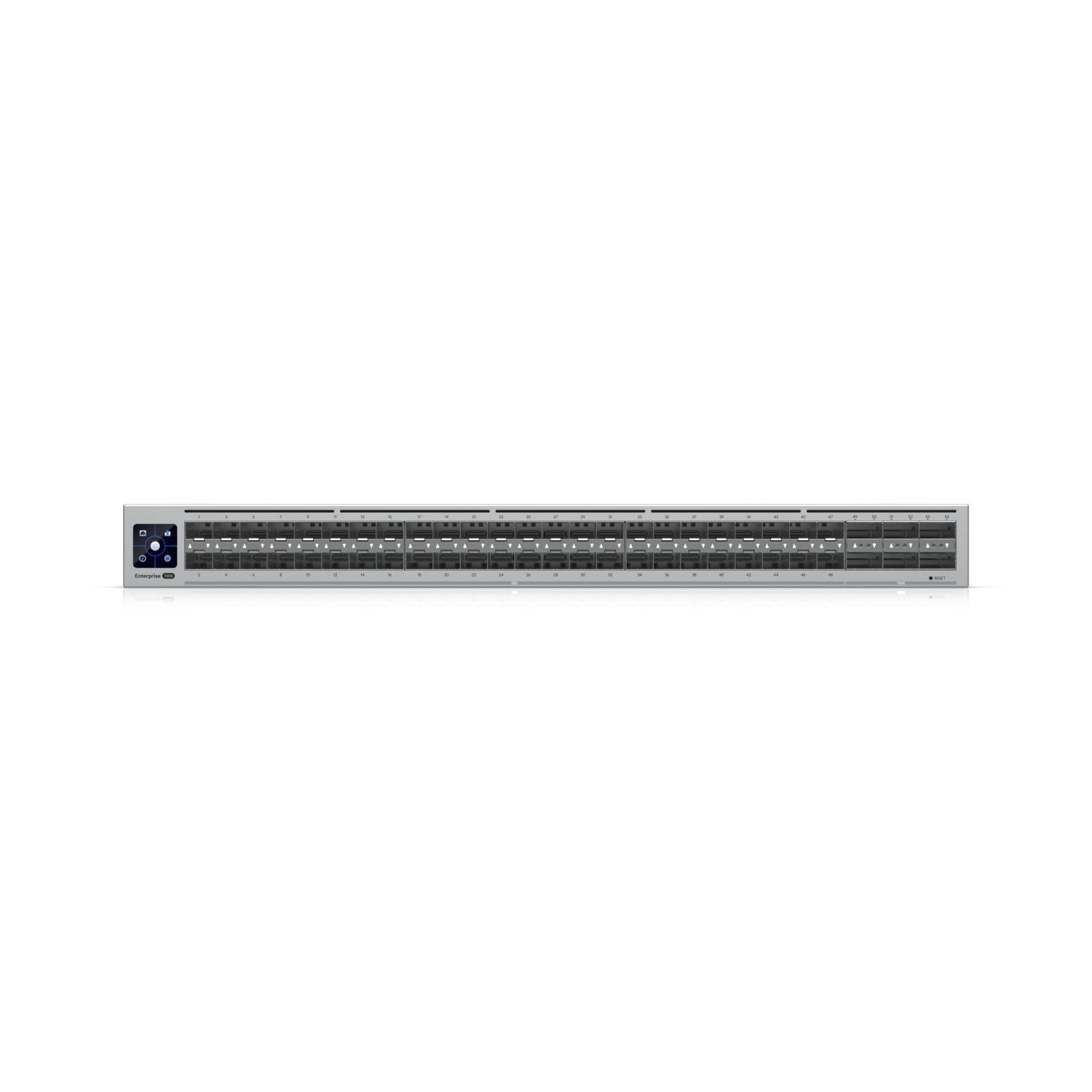

The Ubiquiti ECS-Aggregation is a 1U enterprise Layer 3 Etherlighting switch with forty-eight 25G SFP28 ports, six 100G QSFP28 ports and 1.8 Tbps of non-blocking throughput.
48 x 25G SFP286 x 100G QSFP281.8 Tbps non-blocking3.6 Tbps switching
DeviceDeal authorised Ubiquiti reseller 1 Year Ubiquiti manufacturer warranty
What is the ECS-Aggregation?
The Ubiquiti ECS-Aggregation is a 1U enterprise Layer 3 Etherlighting switch with forty-eight 25G SFP28 ports, six 100G QSFP28 ports and 1.8 Tbps of non-blocking throughput.
Designed around the requirements that matter
Product-specific capabilities, deployment details and purchasing considerations for the ECS-Aggregation.
01Dense 25G aggregation
Forty-eight 25G SFP28 interfaces provide high-density server, access-switch and distribution connectivity.
02Six 100G uplinks
Six QSFP28 interfaces support 100G backbone and core-network connections.
031.8 Tbps non-blocking fabric
The switching fabric delivers 1.8 Tbps non-blocking throughput and 3.6 Tbps switching capacity.
04MC-LAG support
MC-LAG can be deployed with a second ECS-Aggregation switch for multi-chassis link resilience.

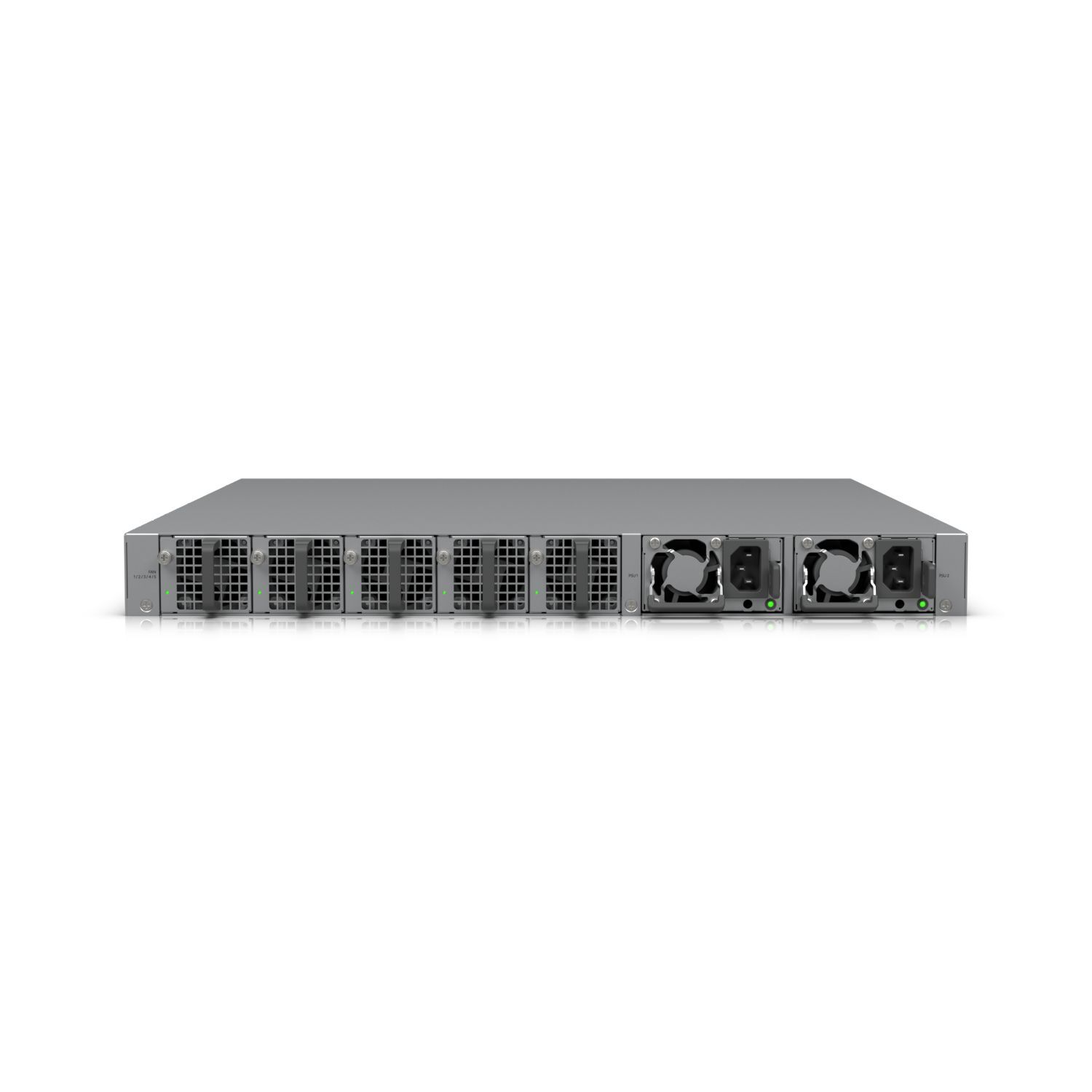

05Hot-swappable redundant power
Two hot-swappable power supplies operate in a 1+1 redundant arrangement.
06Resilient fan system
Five hot-swappable fans operate in a 4+1 arrangement.
i
What to know before buying
- The SFP28 interfaces do not support 1 GbE operation.
- MC-LAG requires a second ECS-Aggregation switch.
- End-user information may be required for deal registration and project quotation.
1 YearManufacturer warranty
Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-Aggregation is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Frequently asked questions
Clear answers to common pre-purchase questions about the Ubiquiti ECS-Aggregation.
What is the Ubiquiti ECS-Aggregation?
It is a high-density enterprise Layer 3 aggregation switch with 48x25G SFP28 and 6x100G QSFP28 interfaces.
How many 25G ports are included?
It provides forty-eight 25G SFP28 ports.
How many 100G ports are included?
It provides six 100G QSFP28 ports.
What switching performance is provided?
It provides 1.8 Tbps non-blocking throughput and 3.6 Tbps switching capacity.
Does it support MC-LAG?
Yes. MC-LAG is supported when the switch is paired with a second ECS-Aggregation unit.
Do the SFP28 ports support 1 GbE?
No. The SFP28 interfaces do not support 1 GbE operation.
What warranty does the Ubiquiti ECS-Aggregation include?
The Ubiquiti ECS-Aggregation is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(ECS-Aggregation)
Features and highlights
The Ubiquiti ECS-Aggregation is a 1U enterprise Layer 3 Etherlighting switch with forty-eight 25G SFP28 ports, six 100G QSFP28 ports and 1.8 Tbps of non-blocking throughput.
01Dense 25G aggregation
Forty-eight 25G SFP28 interfaces provide high-density server, access-switch and distribution connectivity.
02Six 100G uplinks
Six QSFP28 interfaces support 100G backbone and core-network connections.
031.8 Tbps non-blocking fabric
The switching fabric delivers 1.8 Tbps non-blocking throughput and 3.6 Tbps switching capacity.
04MC-LAG support
MC-LAG can be deployed with a second ECS-Aggregation switch for multi-chassis link resilience.
05Hot-swappable redundant power
Two hot-swappable power supplies operate in a 1+1 redundant arrangement.
06Resilient fan system
Five hot-swappable fans operate in a 4+1 arrangement.
Key product points
- 48 x 25G SFP28
- 6 x 100G QSFP28
- 1.8 Tbps non-blocking
- 3.6 Tbps switching
- The SFP28 interfaces do not support 1 GbE operation.
- MC-LAG requires a second ECS-Aggregation switch.
1 YearManufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-Aggregation is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Product details
| Brand | Ubiquiti |
|---|
| Model / SKU | ECS-Aggregation |
|---|
| Product type | Enterprise Layer 3 aggregation switch |
|---|

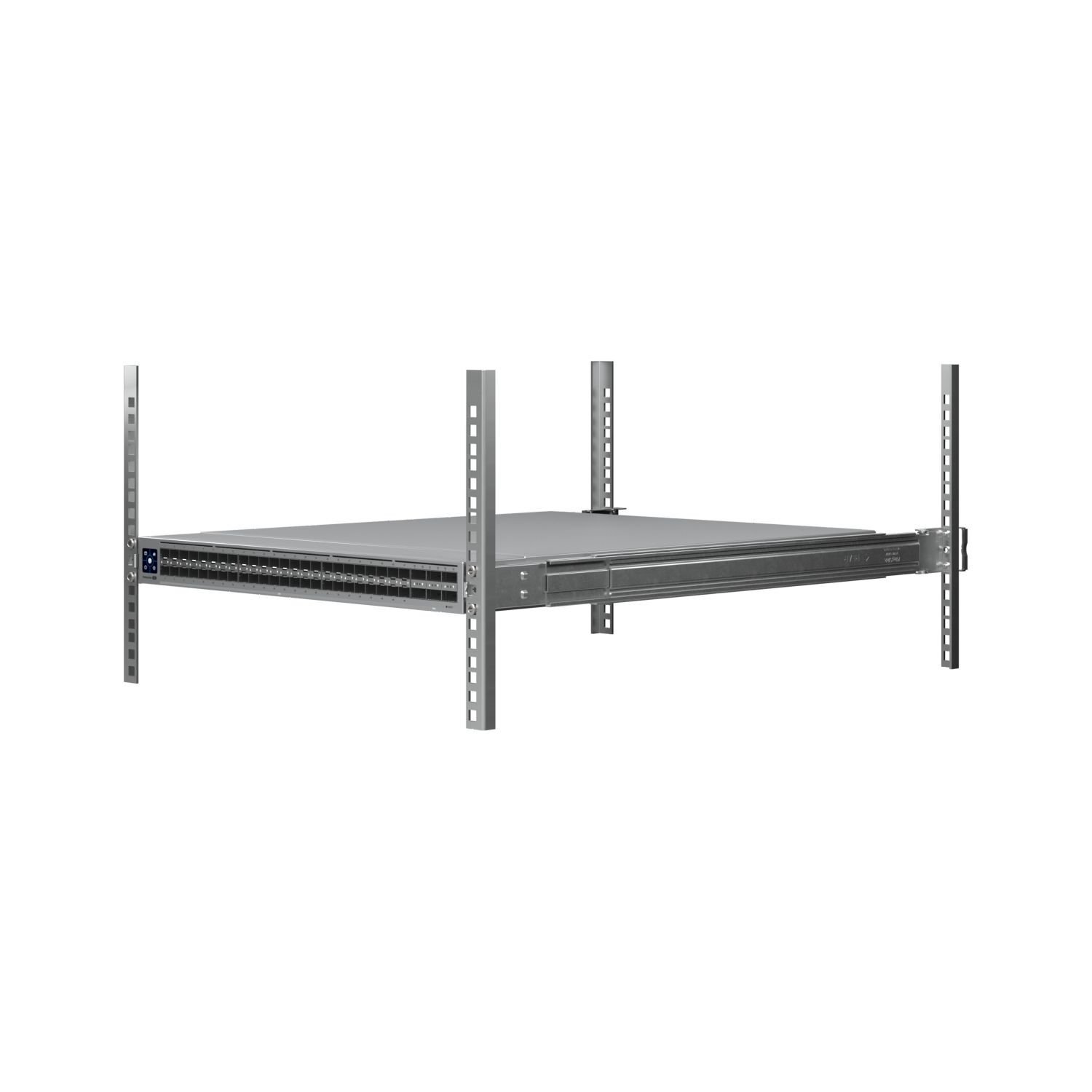

| Form factor | 1U rackmount |
|---|
Interfaces
| 25G SFP28 ports | 48 |
|---|
| 100G QSFP28 ports | 6 |
|---|
| 1 GbE support | Not supported on the SFP28 interfaces |
|---|
Switching performance
| Non-blocking throughput | 1.8 Tbps |
|---|
| Switching capacity | 3.6 Tbps |
|---|
High availability
| MC-LAG | Supported with a second ECS-Aggregation switch |
|---|
| Power supplies | 2 x hot-swappable, 1+1 redundant |
|---|
| Fans | 5 x hot-swappable, 4+1 arrangement |
|---|
Physical
| Dimensions | 442.4 x 43.7 x 496 mm |
|---|
| Weight | 9.9 kg |
|---|
Warranty and purchasing confidence
| Manufacturer warranty | 1 Year Ubiquiti manufacturer warranty |
|---|
| Reseller | DeviceDeal is an authorised Ubiquiti reseller |
|---|
| SKU |
ECS-Aggregation |
| Barcode # |
810084697160 |
| Brand |
Ubiquiti |
| Shipping Weight |
10.0000kg |
| Shipping Width |
0.270m |
| Shipping Height |
0.080m |
| Shipping Length |
0.550m |
| Shipping Cubic |
0.010913000m3 |
1 YearManufacturer warranty
Buying confidence Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-Aggregation is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Warranty typeUbiquiti manufacturer warranty Warranty duration1 Year Authorised resellerDeviceDeal
