High-Performance airMAX® Bridge

Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.

Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation

The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.

Incredible Antenna “Beam” Performance

The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.



Protective Radome

The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.

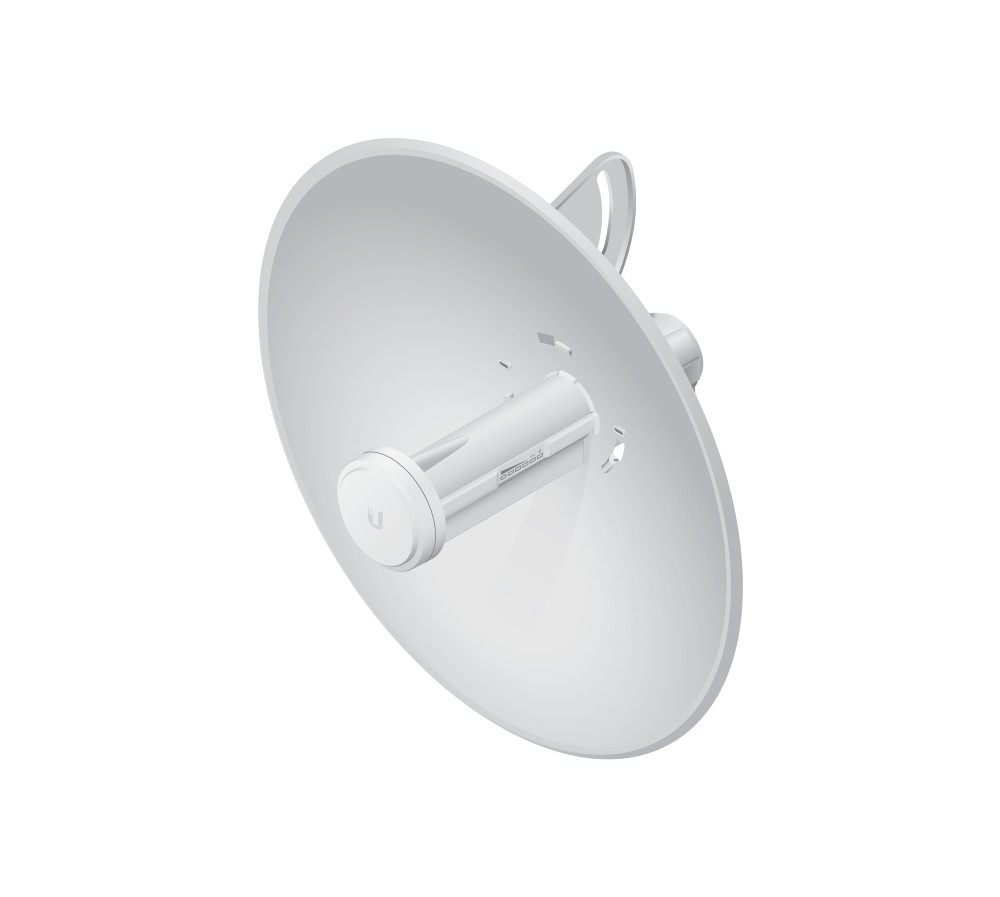

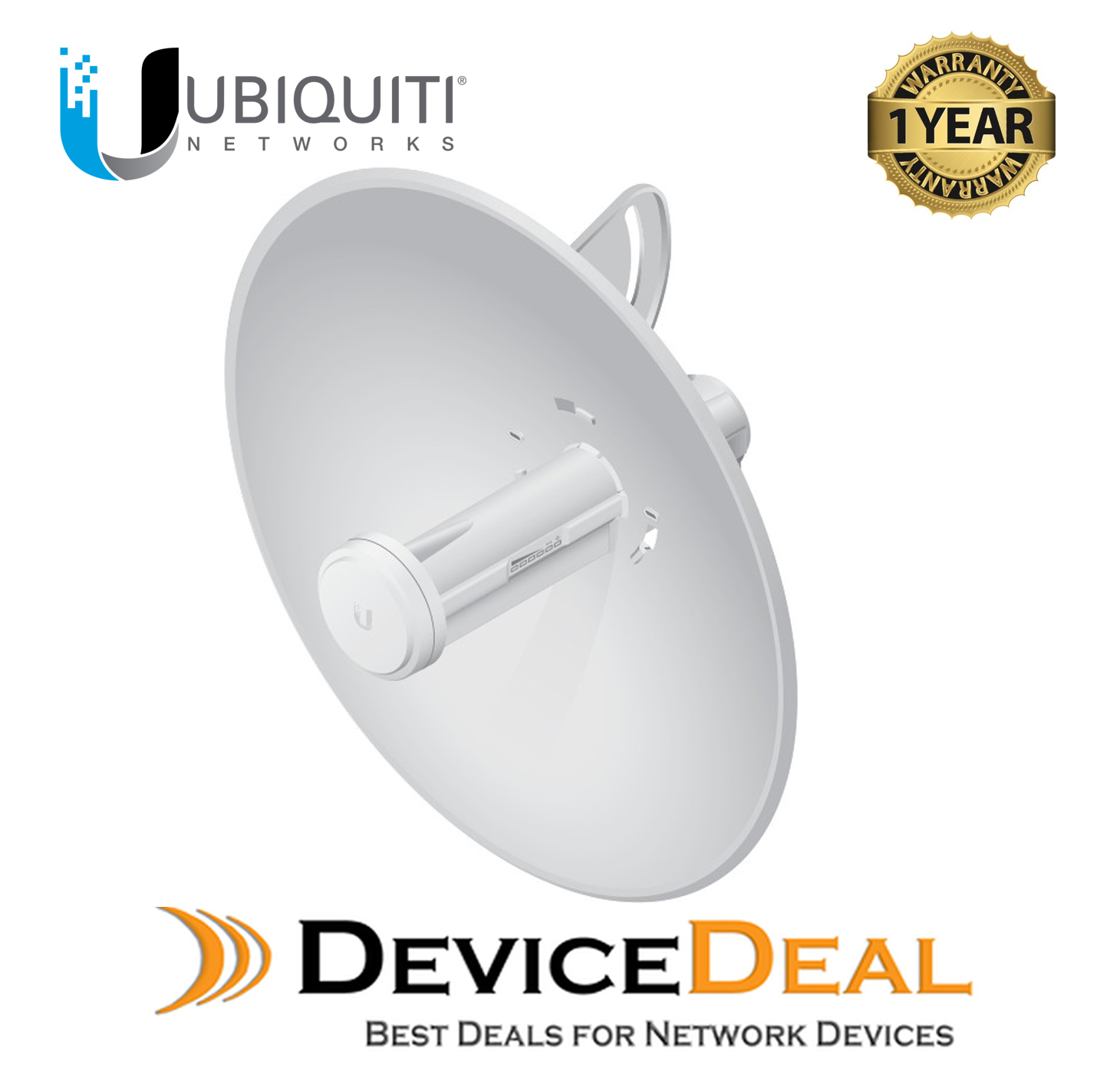

Ubiquiti Networks PowerBeam PBE-M5-300 5GHz 22dBi airMAX Bridge - 400 mm Dish Reflector - 5170-5875 MHz Operating Frequency - 22 dBi Gain - 24V, 0.5A PoE Power Supply - Atheros MIPS 74Kc, 560 MHz Processor - 64 MB DDR2, 8 MB Flash Memory - 1x 10/100 Ethernet Port - Dual Linear Polarization - 1 Year Warranty
