Critical Power, Cooling and Racks > Racks and Accessories > Racks and Enclosures > Easy Rack > ER8282

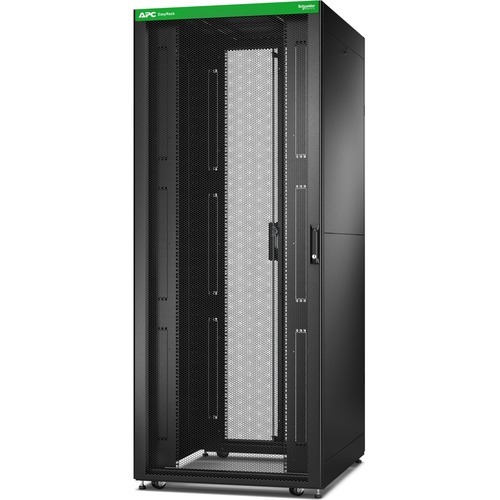

APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 1991H x 800W x 800D mm

SKU: ER8282 | Brand: APC Brand

Key Features

Easy to choose, install and accessorize
APC quality, reliability and solution compatibility
Standard 5 year factory warranty for peace of mind
Ready for High Density Cable management
UL 2146 Certified Integrated electrical grounding

Description

Easy Rack ER8282 is EIA-310 standard pre-assembled IT enclosure with essential features for fast, easy deployment in networking and patching applications.
ER8282 is an ideal choice for tight spaces in SMBs, with 800mm wide & shallow depth, ventilated doors with 81% perforation and load ratings static 1200kg & dynamic 600kg.
This rack comes in 42U height, with Roof, side panels, keys, levelling feet, casters, mounting hardware, PDU mounting brackets and without bottom.
This Rack's depth allows front-to-back cabling while ensuring clearance for rack accessories and limiting interference with IT device hot swap components.
This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite.
Easy Rack is designed with multi functional roof for managing cables & proper airflow and have rear accesory brackets for toolless installations.
This has integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories.
This is Wide, Deep and Tall Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications.
Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.

Product Images

Downloads & Documents

Compatible Products & Accessories

PDU

EPDU2016M

Easy PDU Metered 1U 16A 230V (8)C13

EPDU2116M

Easy PDU Metered ZeroU 16A 230V (18)C13 (3)C19 IEC309

EPDU2216M

Easy PDU Metered Zero U 11 kW 230V (21) C13 (3) C19 IEC309

EPDU2232M

Easy PDU Metered Zero U 22 kW 230V (18) C13 (6) C19 IEC309

EPDU2016S

Easy PDU Switched 1U 16A 230V (8)C13

EPDU2116S

Easy PDU Switched ZeroU 16A 230V (20)C13 (4)C19 IEC309

EPDU2132S

Easy PDU Switched Zero U 32A 230V(20)C13 (4)C19 IEC309

EPDU2216S

EasyPDU, Switched, Zero U, 11 kW, 230V, (21) C13 & (6) C19；I...

EPDU2232S

EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；I...

EPDU2232SX3620

EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19；I...

EPDU2116MBO

Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 3.7kW, 230V, 16A...

EPDU2132MBO

Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 7.4kW, 230V, 32A...

Racks

AP5717

APC 17" Rack LCD Console

AP5719

APC 19" Rack LCD Console

AP5808

17" Rack LCD Console with Integrated 8 Port Analog KVM Switc...

AP5816

17" Rack LCD Console with Integrated 16 Port Analog KVM Swit...

AP7152B

In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G

AP7155B

In-Line Current Meter, 32A, 230V, IEC309-32A, 2P+G

AP7175B

In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

AP9335T

Wired, Sensor, NetBotz, Temperature, 13 ft

AP9335TH

APC Temperature & Humidity Sensor

AP9513

NetShelter VX/SX Door Sensor Switch Kit

AP9520TH

Wired, Sensor, NetBotz, Temperature & Humidity Display

AP9625

APC SmartUPS/SmartUPS RT 2 Post Rail Kits

(ER8282)

Specifications - ER8282

Overview

Lead time

Usually in Stock

Main

Product or component type	Rack enclosure
Number of rack unit	42U
Provided equipment	Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting hardware Pre-installed casters Side panels

Physical

Height	1911 mm
Width	800 mm
Depth	800 mm
Net weight	120.8 kg
Colour	Black
Mounting preference	No preference
Mounting mode	Not rack-mountable
Maximum mounting depth	641.4 mm
Minimum mounting depth	190.5 mm
Rack width	19"
Marking	18 gauge front door 19 gauge rear door 16 gauge post 14 gauge EIA mounting rail
Permanent permissible load	1199.8 kg static 599.6 kg dynamic

Conformance

Standards

UL 60950-1
UL 2416
EIA-310E

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	215.000 cm
Package 1 Width	82.000 cm
Package 1 Length	82.000 cm
Package 1 Weight	130.000 kg
