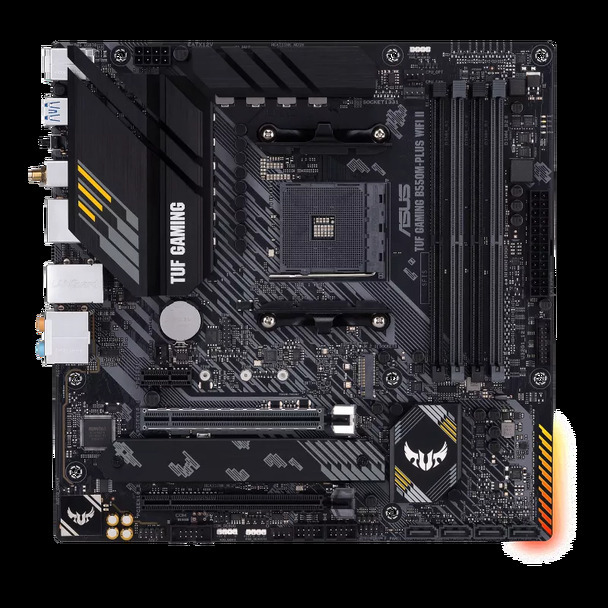

ASUS TUF GAMING B550M-PLUS WIFI II//AM4,B550,DUAL
MODEL # 90MB19Y0-M0UAY0
-
SKU: 90MB19Y0-M0UAY0
- Pick Up Available
- Australian Warranty
- Checkout Securely
(90MB19Y0-M0UAY0)
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
| Chipset | B550 |
| Form Factor | microATX 24.4cm x 24.4cm |
| I/O Connectors | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI®port*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.2. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory |
| PCI Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)* AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slot** * Support PCIe bifurcation for RAID on CPU function. ** PCIEX16_2 will run x2 mode when PCIEX1 slot is used. |
| Processor Support | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Raid | Support RAID 0, 1, 10 |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory |
| Socket | AM4 |
| Storage Interface | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 |
| SKU | 90MB19Y0-M0UAY0 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
