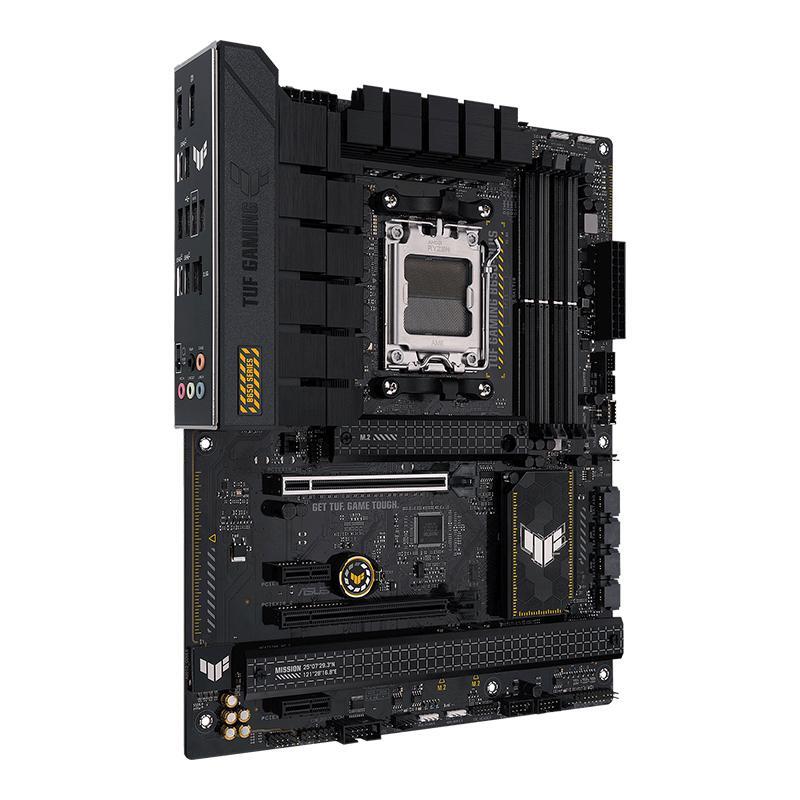

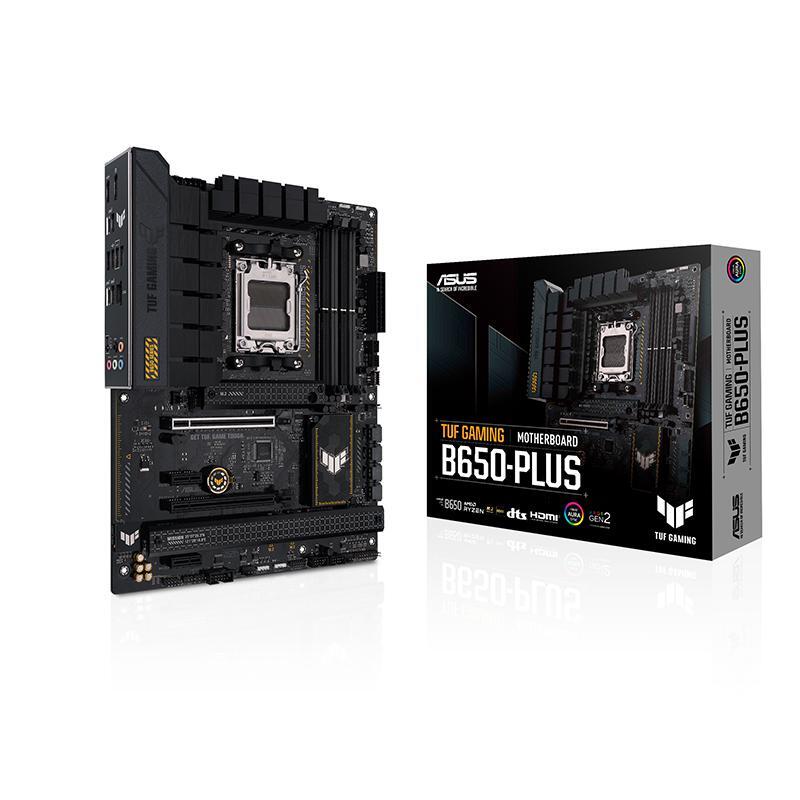

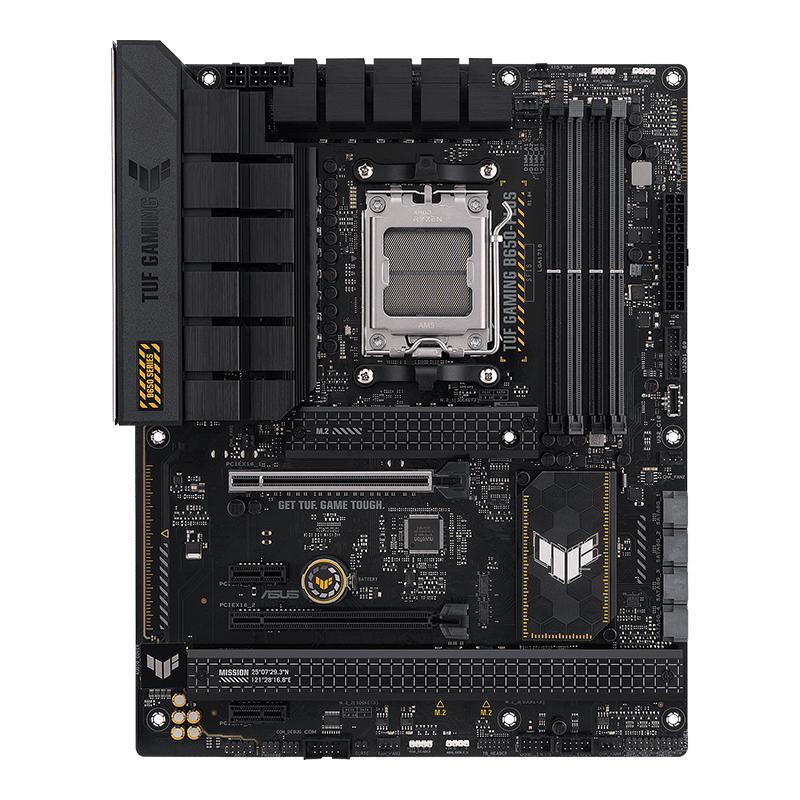

ASUS TUF Gaming B650-PLUS AM5 ATX Motherboard
Model # TUF GAMING B650-PLUS
-
SKU: TUF-GAMING-B650-PLUS
- Pick Up Available
- Australian Warranty
- Checkout Securely
- ASUS TUF Gaming B650-PLUS AM5 ATX Motherboard
- Chipset: AMD B650
- Socket: AM5
- Memory: 4x DDR5 (Up to 128GB, 6400MHz OC)
- Expansion Slots: 1x PCIe 4.0/3.0 x16 slot, 1x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2x PCIe 4.0/3.0 x1 slots
- Storage: 3x M.2 slots, 4x SATA 6Gb/s
- I/O: 1x USB-C 3.2 Gen2x2, 1x USB-C 3.2 Gen2, 2x USB-A 3.2 Gen2, 4x USB-A 2.0, 1x DisplayPort, 1x HDMI, 1x 2.5Gb LAN, 5x Audio jacks
- Form Factor: ATX
- TUF GAMING B650-PLUS
(TUF-GAMING-B650-PLUS)
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | AMD |
Video
| Onboard Video | CPU Dependent Video |
Warranty
| Limited Warranty | 3 Year |
Network & Communication
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
I/O Controller
| RAID Levels | 1 |
| 0 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-6400/PC5-51200 |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 5400 MHz |
| 5000 MHz | |
| 5600 MHz | |
| 5200 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 4800 MHz | |
| 5800 MHz | |
| 6400 MHz |
Processor & Chipset
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express 4.0 | |
| Total Number of PCI Express Slots | 4 |
General Information
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | TUF GAMING B650-PLUS |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | B650-PLUS |
| Product Name | B650-PLUS Gaming Desktop Motherboard |
| Brand Name | TUF |
Interfaces/Ports
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Thunderbolt 4 Ports | 1 |
| SKU | TUF-GAMING-B650-PLUS |
| Barcode # | 4711081912774 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
