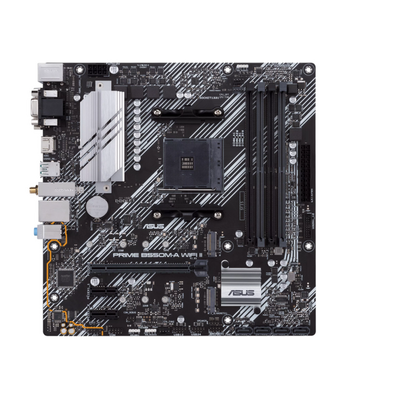

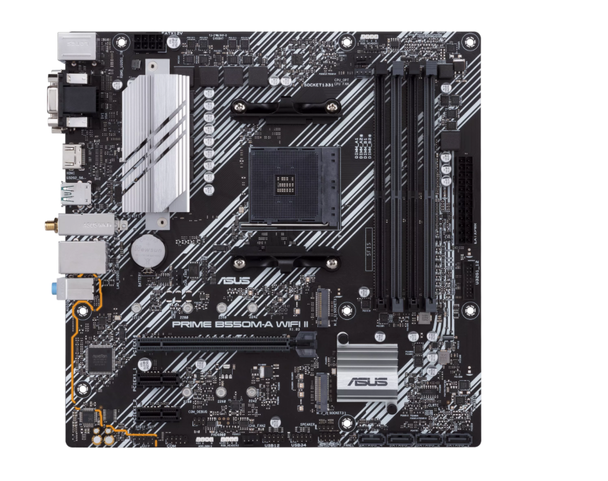

ASUS AMD ASUS PRIME-B550M-A-WIFI-II Gaming Motherboard
MODEL # 90MB19X0-M0UAY0
-
SKU: 90MB19X0-M0UAY0
- Pick Up Available
- Australian Warranty
- Checkout Securely
(90MB19X0-M0UAY0)
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD B550 |
| Form Factor | micro ATX |
| I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Integrated CPU Graphics | 1 x D-Sub, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI® port ( Supports 4K@60Hz as specified in HDMI 2.1) |
| LAN | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory |
| PCI Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 3.0 x16 slot (supports x16 mode), 2 x PCIe 3.0 x1 slots |
| Processor Support | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Raid | Support RAID 0, 1, 10 |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory |
| Socket | Ryzen AM4 |
| Storage Interface | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - Lighting Control ASUS CPU-Z AI Charger DAEMON Tools MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 header |
| USB | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| SKU | 90MB19X0-M0UAY0 |
| Barcode # | 4711081309758 |
| Brand | ASUS |
| Shipping Weight | 1.1600kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.035m |
| Shipping Length | 0.030m |
