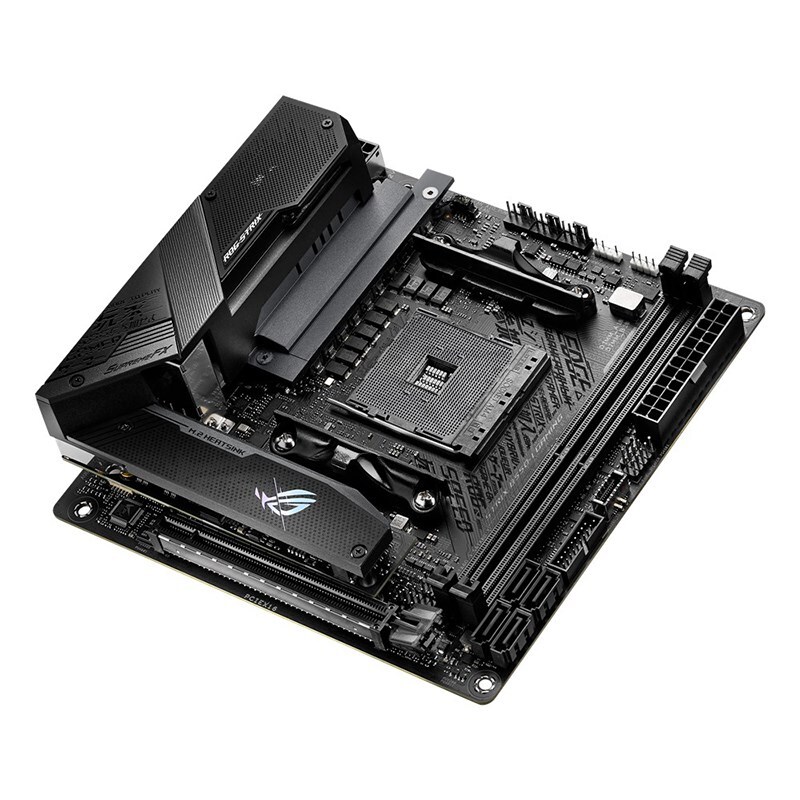

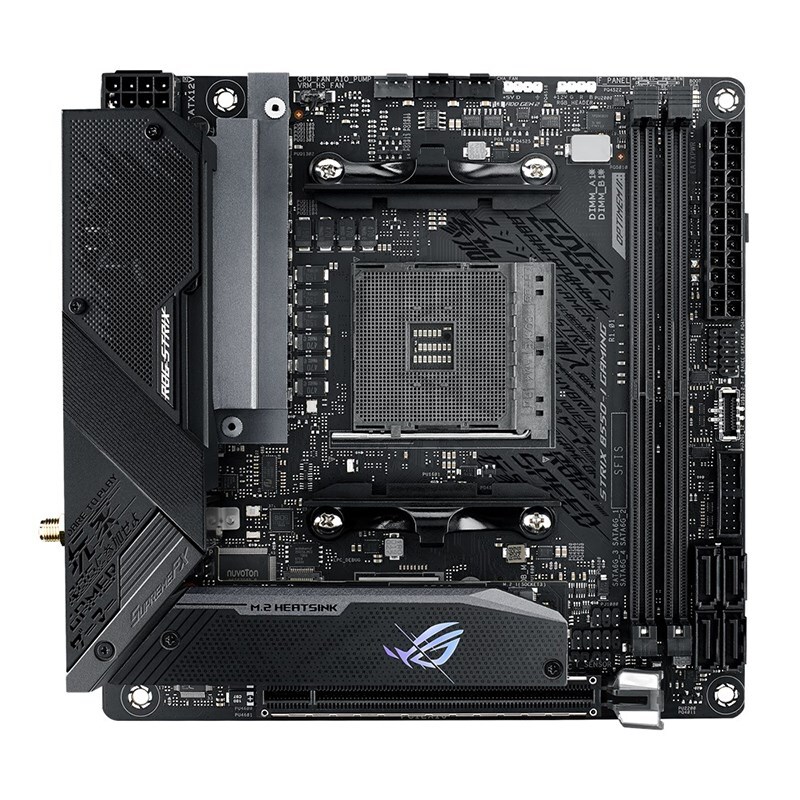

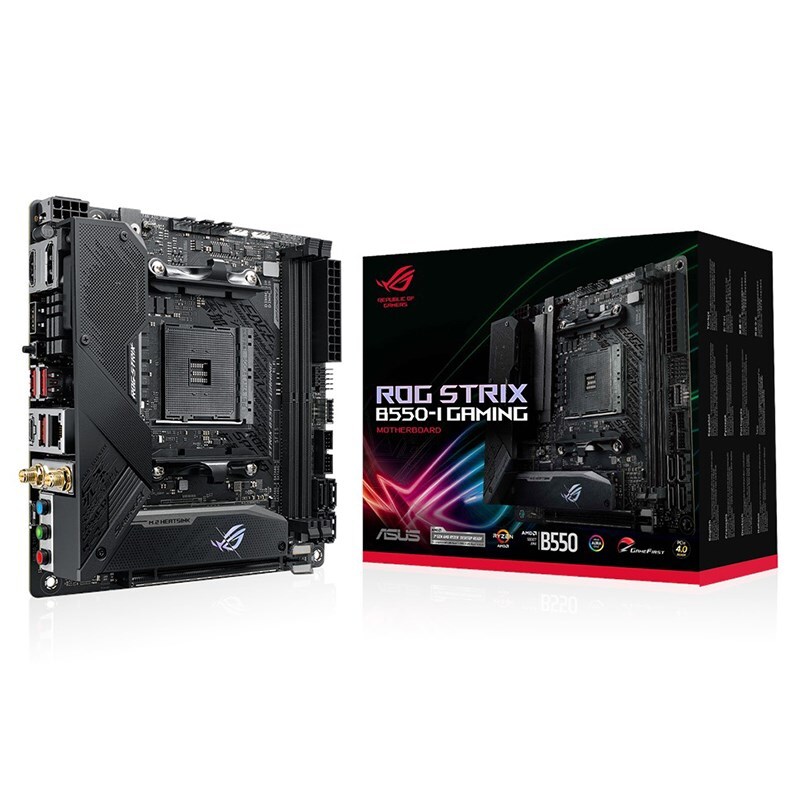

ASUS ROG STRIX B550-I GAMING AM4 Mini-ITX Motherboard
Model # ROG STRIX B550-I GAMING
-
SKU: ROG-STRIX-B550-I-GAMING
- Pick Up Available
- Australian Warranty
- Checkout Securely
ASUS ROG STRIX B550-I GAMING AM4 Mini-ITX Motherboard - Memory Support: 2x DDR4 DIMM Slots (64GB, 5000 MHz O.C) - Expansion Slots: 1x PCIe 4.0 x16 (x16 Mode) - Storage Support: 2x M.2 Slots & 4 SATA 6Gb/s Connectors - Network: Intel® Wi-Fi 6 AX200, Bluetooth 5.1 & Intel® I225-V 2.5Gb LAN - SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Rear USB Ports: 4x USB 3.2 Gen 2 (1x USB-C), 1x USB 2.0 & 1x USB 2.0 (Audio USB Type-C) - 3 Years Limited Warranty
(ROG-STRIX-B550-I-GAMING)
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX B550-I GAMING |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 2×288pin |
|---|---|
| Memory Standard | DDR4 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 * ECC memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors List). |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x16) |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 3rd Gen AMD Ryzen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic 1 x DisplayPort 1.4* 1 x HDMI 2.1 (4K@60Hz)* * Graphics specifications may vary between CPU types. |
|---|
| Audio Chipset | ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A |
|---|---|
| Audio Channels | 7.1 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1-Channel audio. |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4/5GHz transfer speed Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Bluetooth | Bluetooth v5.1 * Bluetooth 5.1 function will be ready in Windows 10 build 19041 or later. |

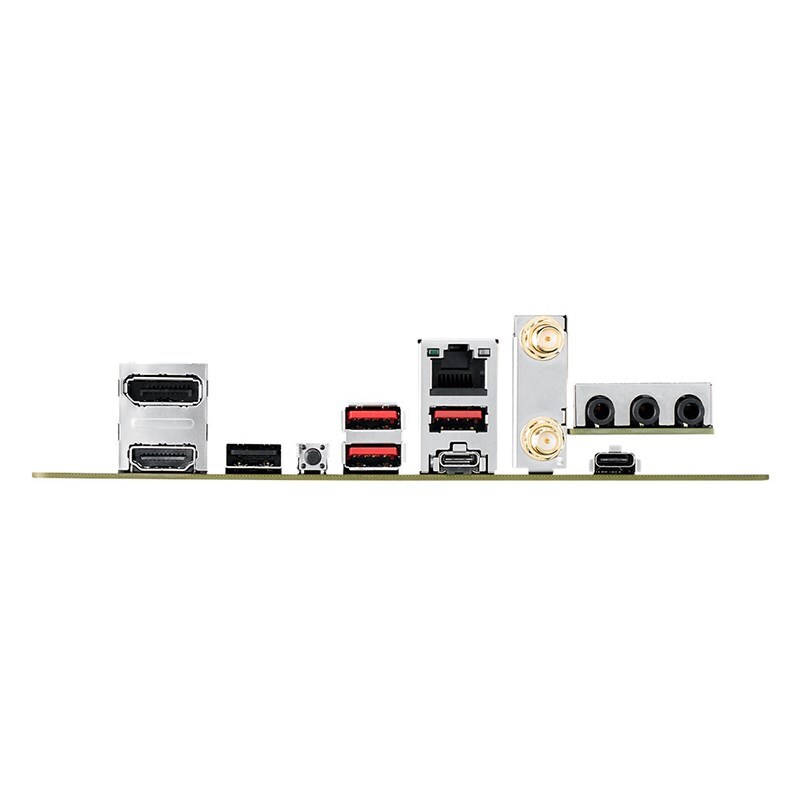

| Back I/O Ports | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 1 x USB 2.0 port 1 x USB 2.0 port (1 x audio USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x BIOS FlashBack button 1 x Intel I225-V 2.5Gb Ethernet 3 x LED-illuminated audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 Front panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU Fan header 1 x 4-Pin Chassis Fan header 1 x VRM heatsink Fan header Miscellaneous 1 x AURA Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync -AI Noise Cancelling Microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS Flashback button - BIOS FlashBack LED - Clear CMOS header - Procool - Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit |
|---|
| Package Contents | Accessories: Cables 1 x Addressable RGB extension cable 1 x ROG audio USB Type-C cable 1 x Panel Cable 4 x SATA 6Gb/s cables Miscellaneous 1 x Cable ties pack 2 x M.2 SSD screw packages 1 x I/O shield 1 x M.2 mounting kit 1 x ROG Strix sticker 1 x ROG Strix thank you card 1 x ASUS 2x2 dual band Wi-Fi moving antennas Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
| SKU | ROG-STRIX-B550-I-GAMING |
| Barcode # | 4718017786379 |
| Brand | ASUS |
| Shipping Weight | 1.1100kg |
Manufacturer Warranty: 3 Years Limited Warranty
