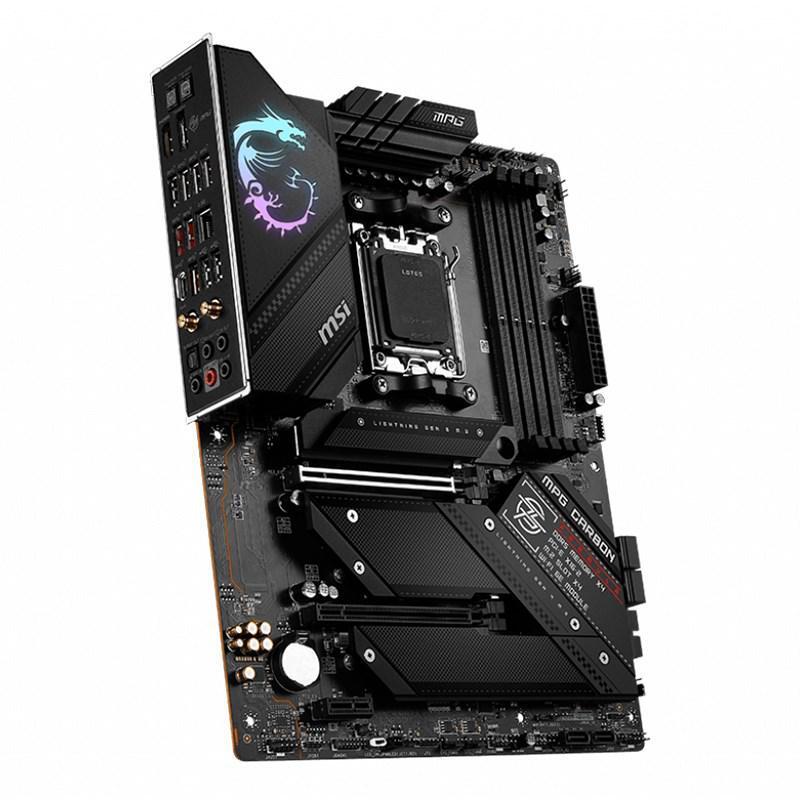

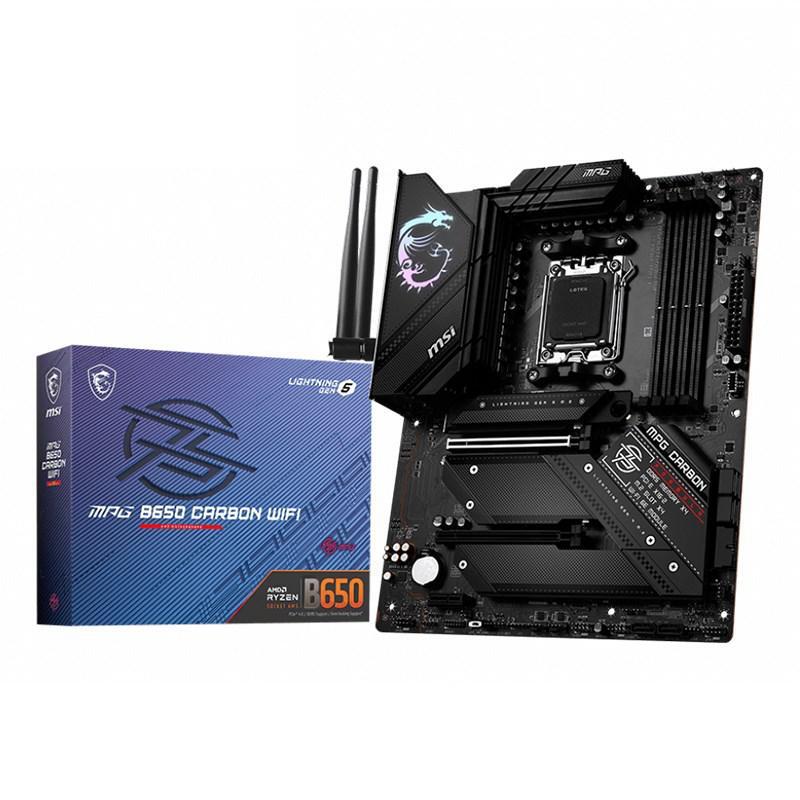

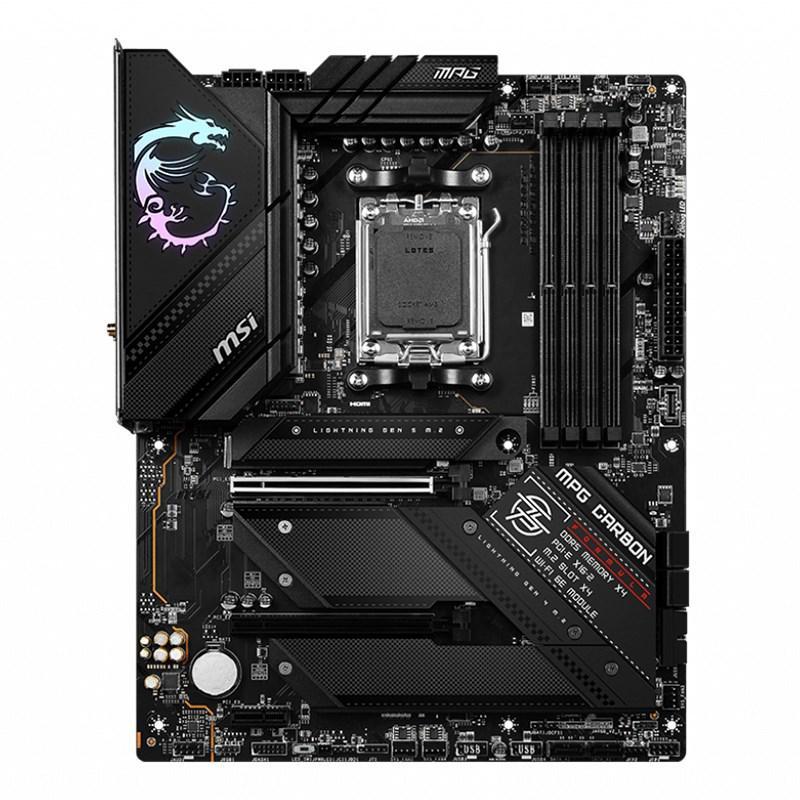

MSI MPG B650 Carbon WiFi AM5 ATX Motherboard
Model # MPG B650 CARBON WIFI
-
SKU: MPG-B650-CARBON-WIFI
- Pick Up Available
- Australian Warranty
- Checkout Securely
- MSI MPG B650 Carbon WiFi AM5 ATX Motherboard
- Socket: AMD AM5
- Chipset: B650
- Memory: 4x DDR5 Slots (Up to 128GB, Max 6600MHz OC)
- Expansion Slots: 2x PCIe 4.0 x16, 1x PCIe 3.0 x1
- Storage: 6x SATA3, 4x M.2 PCIe (1x Gen5, 3x Gen4)
- Network: Wi-Fi 6E + Bluetooth 5.2, 1x 2.5G RJ45
- Rear I/O: USB-C 3.2 Gen2x2, 7x USB-A 3.2 Gen2, 2x USB-A 2.0, HDMI 2.1, DisplayPort 1.4, Optical S/PDIF Out, Audio Connectors, Wi-Fi Module
- Form Factor: ATX
- MPG B650 CARBON WIFI
(MPG-B650-CARBON-WIFI)
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | AMD |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
Processor & Chipset
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
I/O Controller
| RAID Levels | 1 |
| 5 | |
| 10 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 6200 MHz |
| 4000 MHz | |
| 5600 MHz | |
| 5000 MHz | |
| 4800 MHz | |
| 6600 MHz | |
| 6400 MHz | |
| 5200 MHz | |
| 6000 MHz | |
| 5800 MHz | |
| 5400 MHz |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 3 |
Network & Communication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 7 |
General Information
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | MPG B650 CARBON WIFI |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | B650 CARBON WIFI |
| Product Name | MPG B650 CARBON WIFI Gaming Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |
| SKU | MPG-B650-CARBON-WIFI |
| Brand | MSI |
| Shipping Weight | 2.0000kg |
Manufacturer Warranty : 3 Years Manufacturer Warranty
