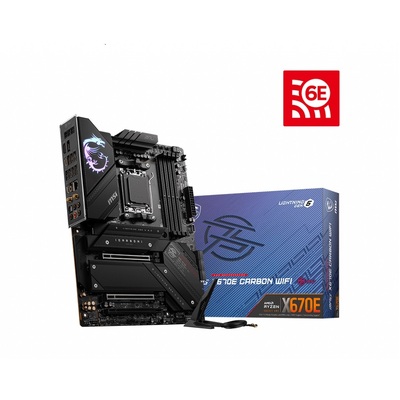

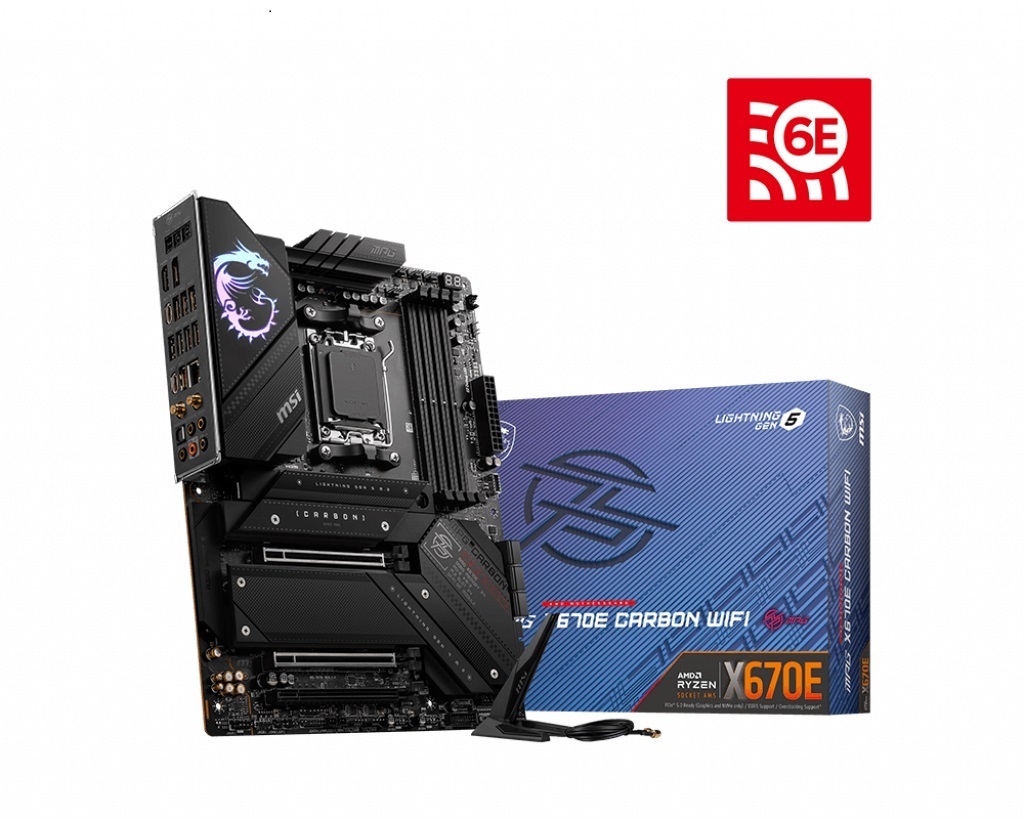

MSI MEG X670E CARBON WIFI, AMD AM5 ATX Motherboard 4x DDR5~128GB,3x PCIe x16, 4x M.2,6x SATA 6Gb/s,13x USB 3.2,6x USB 2.0

Specifications:
CHIPSET: AMD X670
CPU SUPPORT: Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY:4x DDR5, Maximum Memory Capacity 128GB
EXPANSION SLOT:3x PCI-E x16 slotm Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE: 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
ONBOARD GRAPHICS: 1x HDMI™
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x Display Port
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU: Supports AMD MULTI-GPU
LAN: Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH: AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
304.8mmx243.84mm

Manufacturer Warranty: 3 Years Manufacturer Warranty
