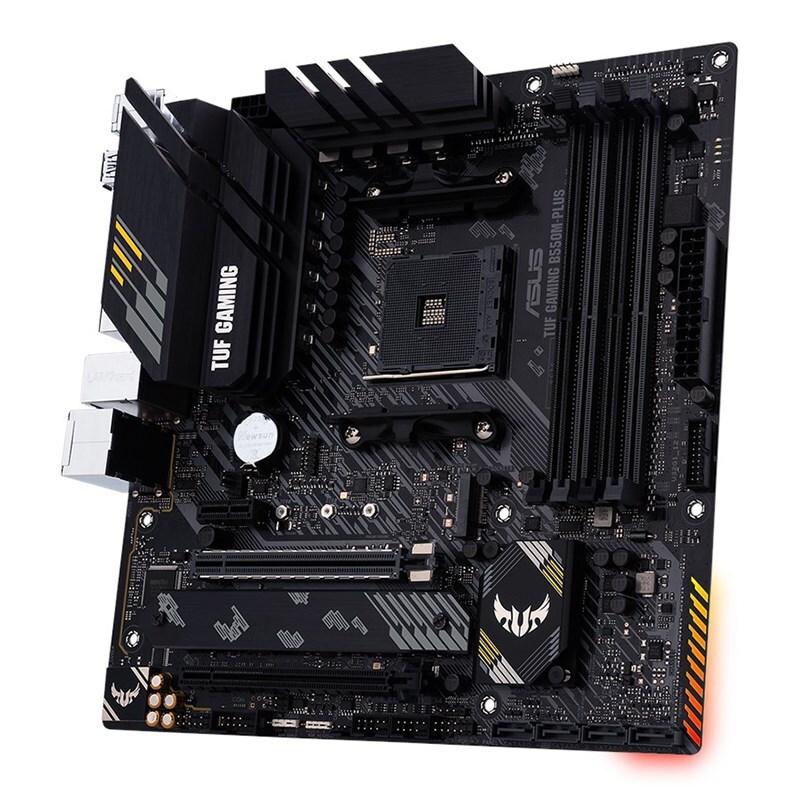

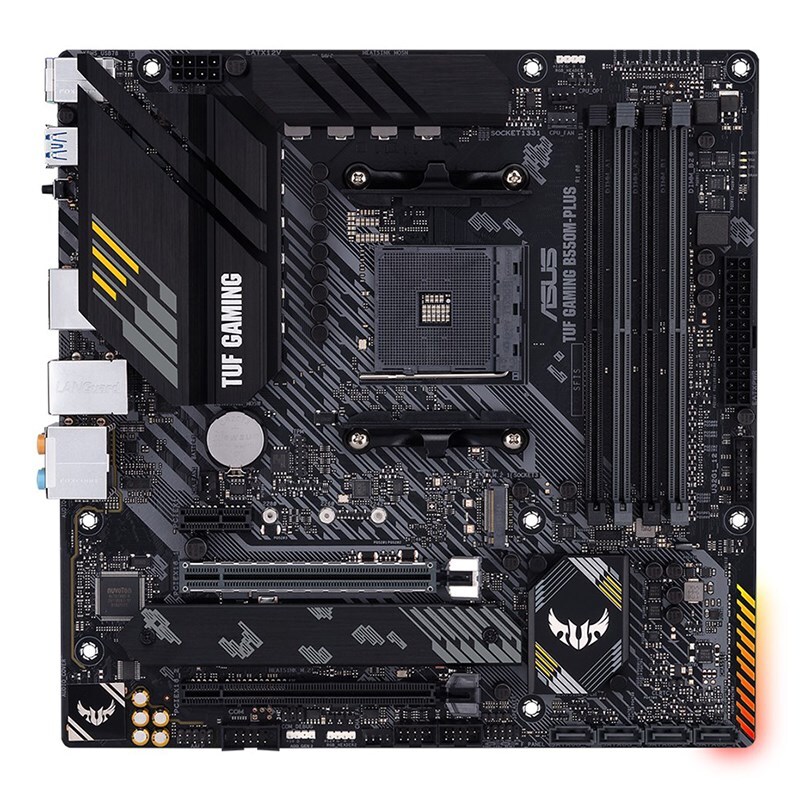

ASUS TUF GAMING B550M-PLUS AM4 Micro-ATX Motherboard
Model # TUF GAMING B550M-PLUS
-
SKU: TUF-GAMING-B550M-PLUS
- Pick Up Available
- Australian Warranty
- Checkout Securely
ASUS TUF GAMING B550M-PLUS AM4 Micro-ATX Motherboard - Memory Support: 4x DDR4 DIMM Slots (128GB Max) - Expansion Slots: 1x PCIe 4.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x4 Mode) & 1x PCIe 3.0 x1 - Storage Support: 2x M.2 Slot & 4x SATA 6Gb/s Connectors - Network: Realtek RTL8125B 2.5Gb Ethernet - Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Rear USB Ports: 2x USB 3.2 Gen 2 (1x USB-C), 4x USB-A 3.2 Gen 1 & 2x USB 2.0 - TUF GAMING B550M-PLUS - 3 Years Limited Warranty
(TUF-GAMING-B550M-PLUS)
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B550M-PLUS (WI-FI) |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | AMD AM4 Socket for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Desktop Processors BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | AMD Ryzen 5000 Series / 3000 Series Desktop Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * AMD Ryzen 4000 G-Series Desktop Processors DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | AMD Ryzen 5000 Series / 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) |
|---|---|
| PCI Express 3.0 x16 | AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * * PCIEX16_2 will run x2 mode when PCIEX1 is used. |
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | AMD Ryzen 5000 Series / 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DisplayPort 1.2 1 x HDMI 2.1 (4K@60HZ) |
|---|
| Audio Chipset | Realtek ALC S1200A Surround Sound High Definition Audio CODEC |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface |
| Bluetooth | Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later. |

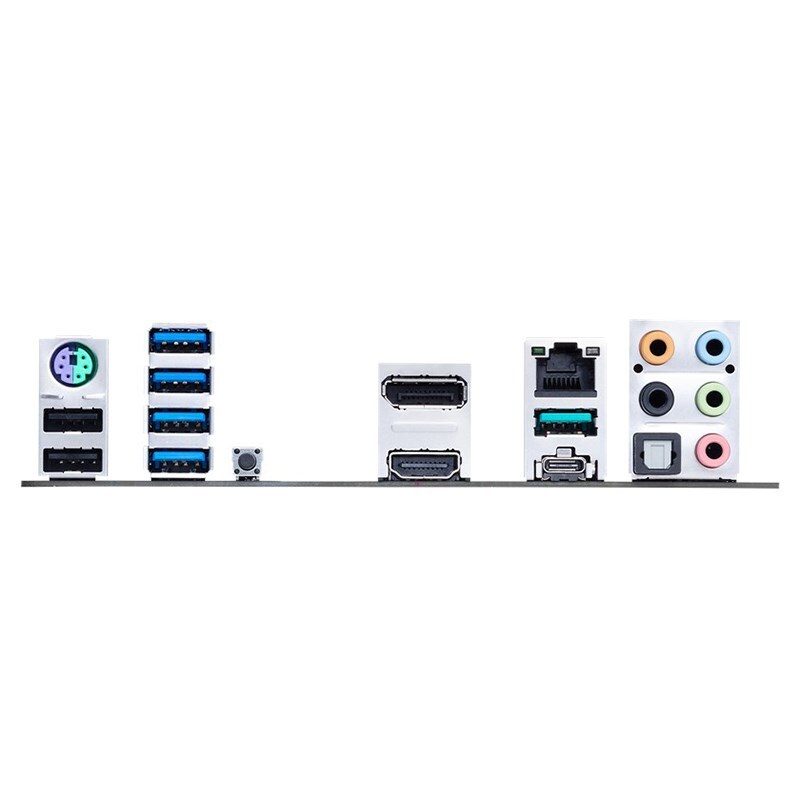

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack Button(s) 1 x ASUS Wi-Fi Module |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors |
| Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PXE Operating System: Windows 10 64-bit |
|---|
| SKU | TUF-GAMING-B550M-PLUS |
| Barcode # | 4718017623544 |
| Brand | ASUS |
| Shipping Weight | 1.3000kg |
Manufacturer Warranty: 3 Years Limited Warranty
