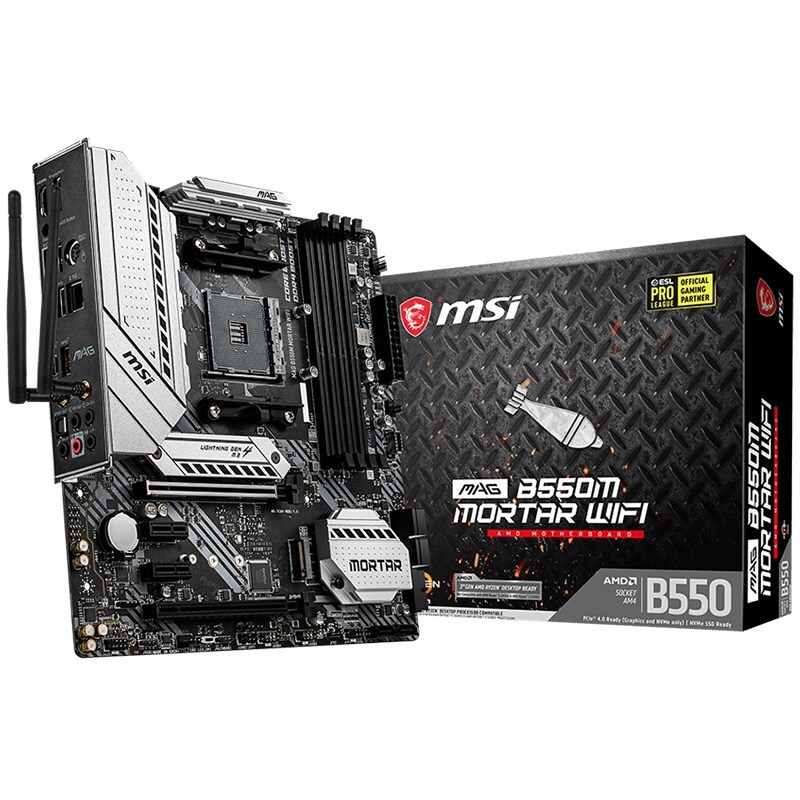

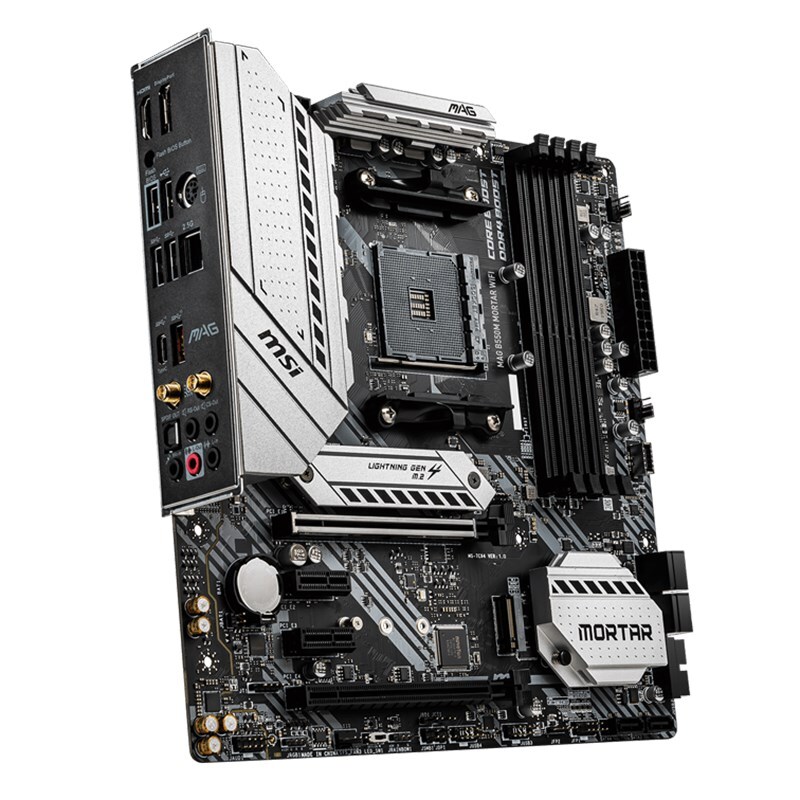

MSI MAG B550M MORTAR WIFI AM4 M-ATX Motherboard, 4xDDR4 4xPCIE 2xM.2 DP HDMI RAID LAN 6xSATAIII 2xUSB3.2 6xUSB2.0
Model # MAG B550M MORTAR WIFI
-
SKU: MAG-B550M-MORTAR-WIFI
- Pick Up Available
- Australian Warranty
- Checkout Securely
MSI MAG B550M MORTAR WIFI AM4 M-ATX MB 4xDDR4 4xPCIE 2xM.2 DP HDMI RAID LAN 6xSATAIII 2xUSB3.2 6xUSB2.0
(MAG-B550M-MORTAR-WIFI)
| Brand | MSI |
|---|---|
| Series | Because post air mail refuse the goods with battery,In order to successfully pass security,the goods we ship out not include CMOS battery(CR2032),hope u can understand. |
| Model | MAG B550M MORTAR WIFI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 3.0/4.0 x16 slot (PCI_E1) * * The supported specification depends on installed processor. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode ** ** PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot. |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Other Slots | 1 x Key E (WiFi/BT) |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048MB * Available for the processor with integrated graphics. |
|---|
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth 5.1 |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |

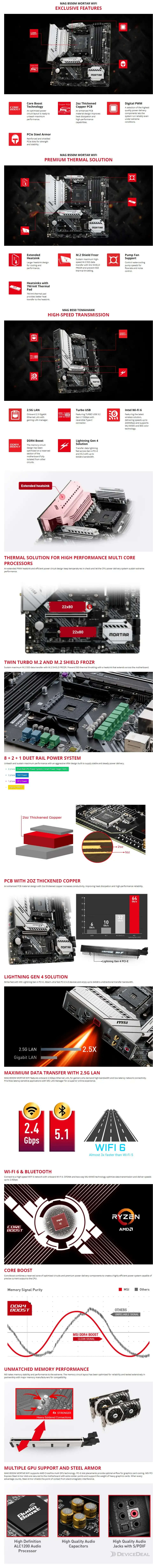

| Features | Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update Supports DDR4 Memory, up to 4400+(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2 Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire |
|---|
| SKU | MAG-B550M-MORTAR-WIFI |
| Barcode # | 4719072728649 |
| Brand | MSI |
| Shipping Weight | 1.4000kg |
Manufacturer Warranty: 3 Years Limited Warranty
