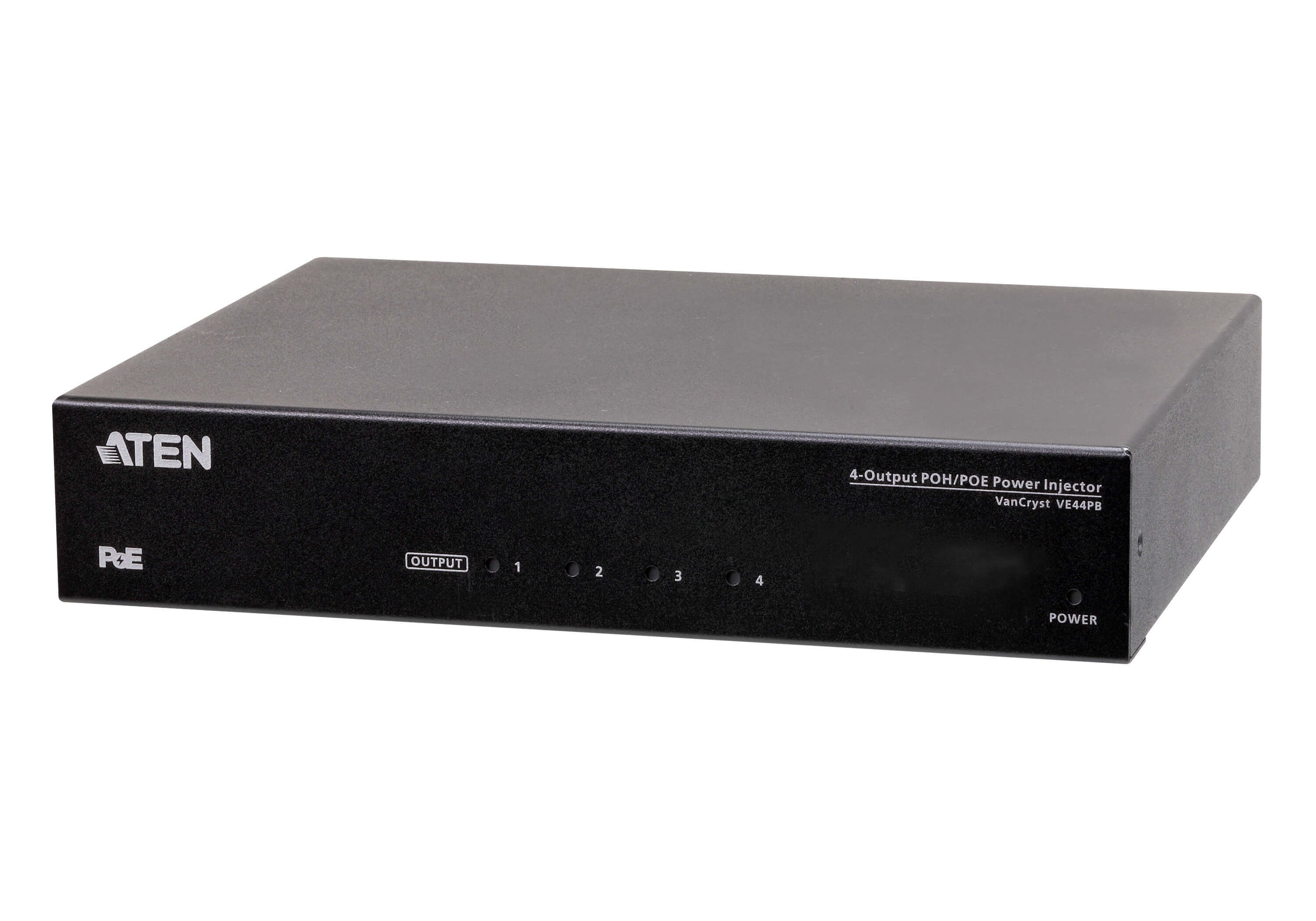

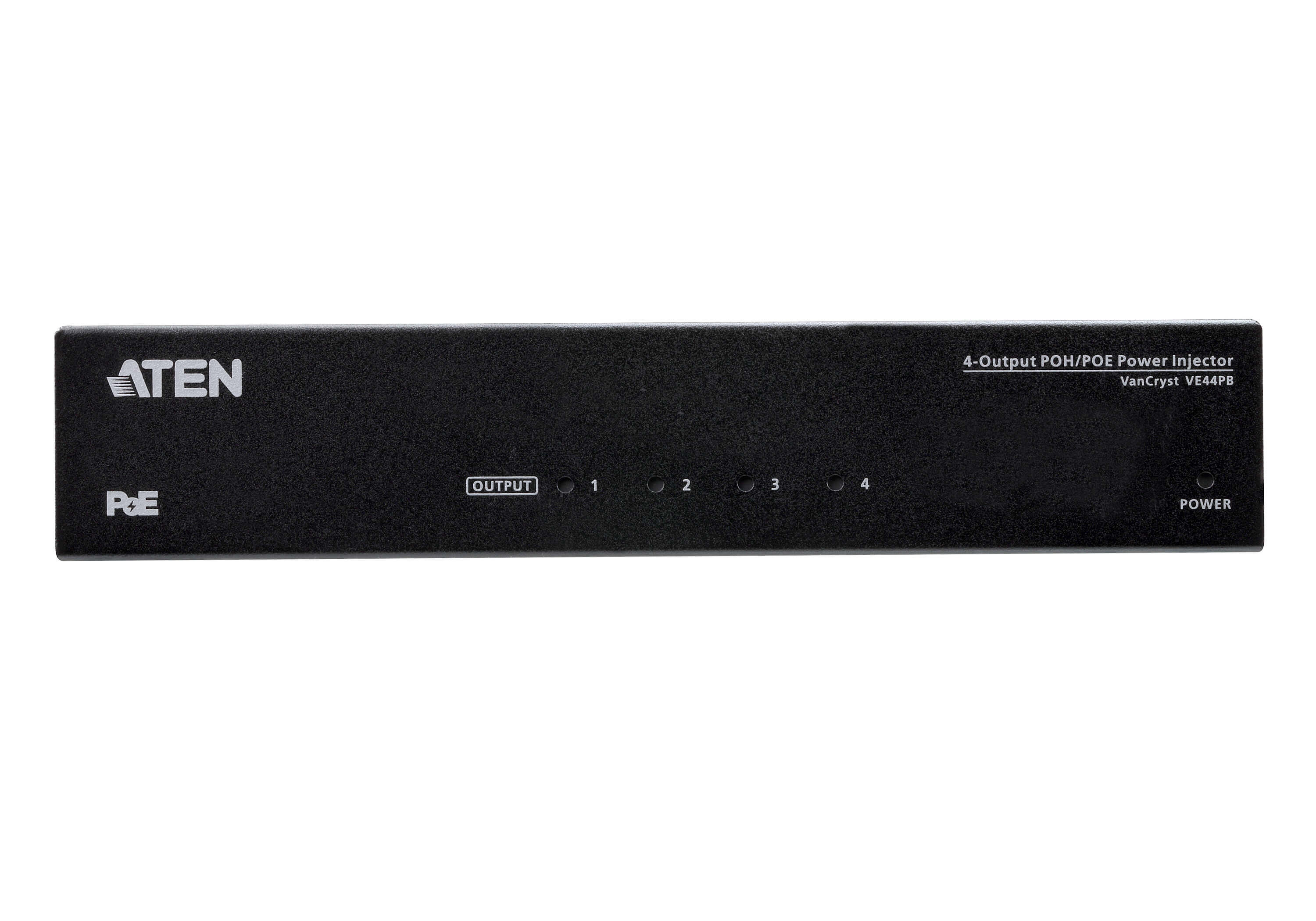

The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.

Package Contents

1x 4-Output POH/POE Power Injector
1x Mounting Kit
1x Power Cord Cable
1x User Instructions

(VE44PB-AT-U)

Video
Max. Data Rate	10.2Gbps per port (Support HDBaseT POH PD ready models)
Connectors
Input	4 x RJ-45 Female
Output	4 x RJ-45 Female (with POH/POE PSE)
Power	1 x 3-Prong AC Socket
Switches
Power	1 x On/Off Switch
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz
Power Consumption	AC110V:1.2W:294BTU AC220V:1.1W:293BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.23 kg ( 2.71 lb )
Dimensions (L x W x H)	21.50 x 16.12 x 4.18 cm (8.46 x 6.35 x 1.65 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
