Grandstream weatherproof long-range Wi-Fi 6 access point

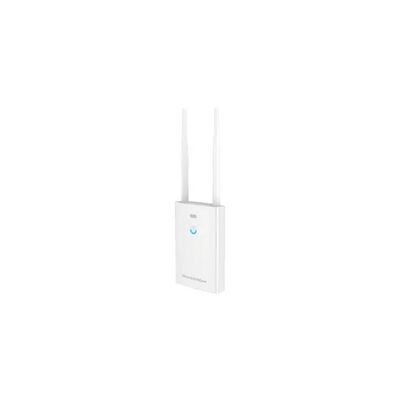

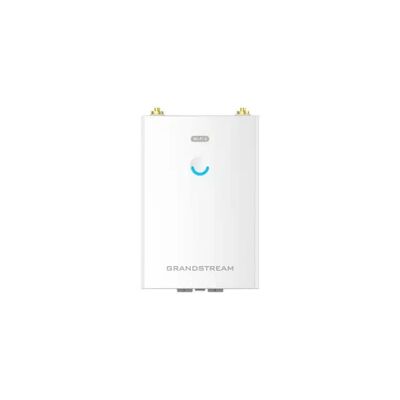

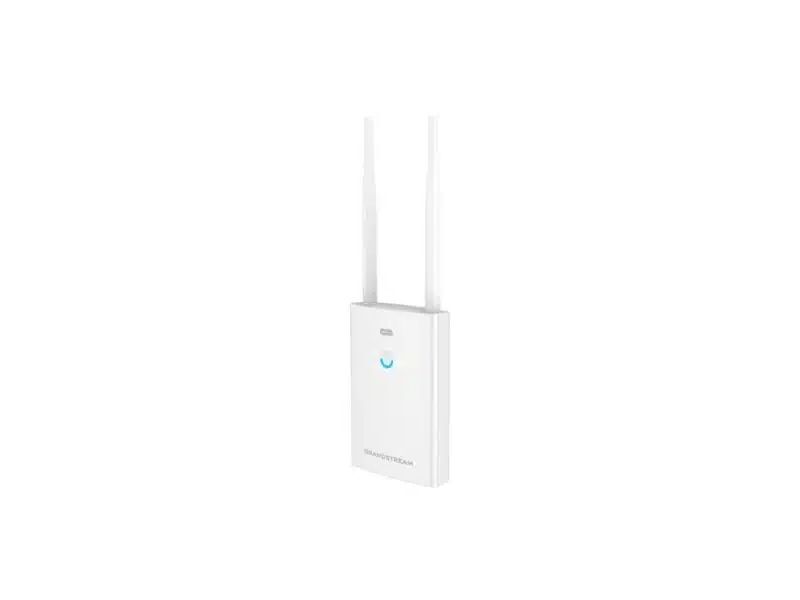

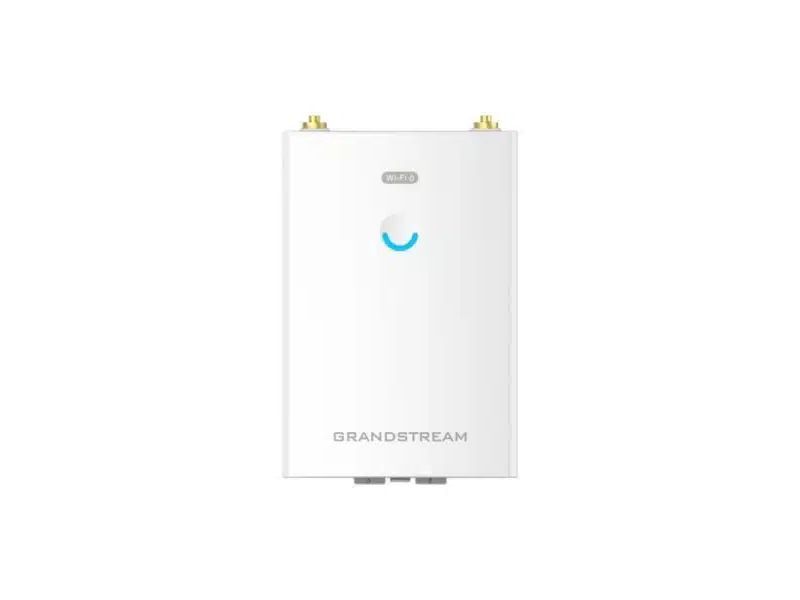

Grandstream GWN7660LR Weatherproof Long-Range Wi-Fi 6 Access Point

A weatherproof long-range Wi-Fi 6 access point with 1.77Gbps aggregate throughput, dual Gigabit Ethernet, 2x2:2 MU-MIMO with OFDMA and coverage up to 250 metres.

1.77Gbps aggregate throughput
2 × Gigabit Ethernet
Up to 250m coverage
Weatherproof long-range design

Product highlights

Long-range Wi-Fi 6

Designed for next-generation indoor and outdoor wireless coverage.

Wireless performance

Provides 1.77Gbps aggregate throughput with dual-band 2x2:2 MU-MIMO and downlink/uplink OFDMA.

Gigabit connectivity

Includes two autosensing Gigabit Ethernet ports.

Outdoor-ready design

Weatherproof and heat-resistant construction supports exposed deployments.

What to know before ordering

Review the stated model, capacity and compatibility details for SKU GWN7660LR. Only the specifications supplied for this exact product are shown.

Frequently asked questions

What is the Grandstream GWN7660LR?

The GWN7660LR is a weatherproof long-range Wi-Fi 6 access point for indoor and outdoor deployments.

What wireless throughput is supplied?

The coherent exact-model profile states 1.77Gbps aggregate throughput.

What coverage range is used for this listing?

The coherent exact-model profile and specification table state up to 250 metres.

How many Ethernet ports are included?

It includes two autosensing Gigabit Ethernet ports.

Does it support PoE?

Yes. IEEE 802.3af and 802.3at PoE/PoE+ are listed.

What radio technology is supplied?

Dual-band 2x2:2 MU-MIMO with downlink and uplink OFDMA is supplied.

Can the antennas be changed?

Yes. Two detachable dual-band external antennas are listed.

How can it be mounted?

Wall and pole mounting are specified.

Why are some source-row figures excluded?

A later paragraph names different legacy models and conflicts with the coherent GWN7660LR profile, so those mismatched details are excluded.

What warranty applies to the GWN7660LR?

DeviceDeal is an authorised Grandstream reseller. The applicable Grandstream manufacturer warranty is subject to Grandstream terms; no exact warranty period was supplied.

(GWN7660LR)

GWN7660LR

Features and highlights

Long-range Wi-Fi 6

Designed for next-generation indoor and outdoor wireless coverage.

Wireless performance

Provides 1.77Gbps aggregate throughput with dual-band 2x2:2 MU-MIMO and downlink/uplink OFDMA.

Gigabit connectivity

Includes two autosensing Gigabit Ethernet ports.

Outdoor-ready design

Weatherproof and heat-resistant construction supports exposed deployments.

Coverage

The coherent exact-model profile states coverage up to 250 metres.

PoE installation

Supports IEEE 802.3af and 802.3at PoE/PoE+ with automatic power adaptation.

Flexible antennas

Two detachable dual-band antennas support different application scenarios.

Management and security

The exact-model profile lists an embedded controller for up to 50 local GWN APs, GWN.Cloud, GWN Manager, advanced QoS and secure boot.

Key points

1.77Gbps aggregate throughput
2 × Gigabit Ethernet
Up to 250m coverage
Weatherproof long-range design

Technical specifications

Grandstream GWN7660LR Weatherproof Long-Range Wi-Fi 6 Access Point

Specifications below are organised from the information supplied for SKU GWN7660LR.

Wireless
Wi-Fi standard	IEEE 802.11a/b/g/n/ac/ax
Radio	Dual-band 2x2:2 MU-MIMO with DL/UL OFDMA
Aggregate throughput	1.77Gbps
2.4GHz throughput	573.5Mbps
5GHz throughput	1201Mbps
Coverage	Up to 250 m
SSIDs	32 total; 16 per radio
Network, power and physical
Ports	2 × autosensing 10/100/1000 Base-T Ethernet
Power	PoE 802.3af/802.3at
Maximum consumption	12.9W
Antennas	2 detachable dual-band external antennas
Dimensions	180.4 × 180.4 × 40.8 mm
Mounting	Wall or pole
Source note
Conflict handling	Mismatched legacy GWN7630LR/GWN7600LR paragraph excluded; coherent exact-model GWN7660LR profile retained

SKU	GWN7660LR
Barcode #	694727370353
Brand	Grandstream
Shipping Weight	3.0000kg
