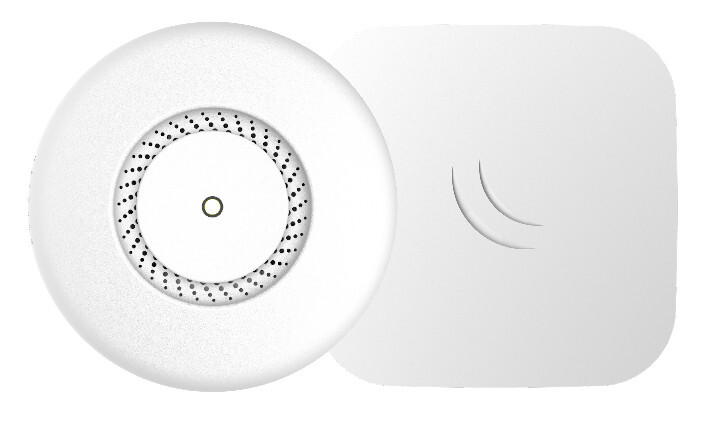

MikroTik RBcAPGi-5acD2nD-XL cAP XL ac Dual Band Dual Chain



Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.



Specifications:

Product code RBcAPGi-5acD2nD-XL

Architecture ARM 32bit

CPU IPQ-4018

CPU core count 4

CPU nominal frequency 716 MHz

RouterOS license 4

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 70°C

IPsec hardware acceleration Yes



Wireless capabilities:

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 6

Wireless 2.4 GHz chip model IPQ-4018

Wireless 2.4 GHz generation Wi-Fi 4

Wireless 5 GHz Max data rate 867 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac

Antenna gain dBi for 5 GHz 5.5

Wireless 5 GHz chip model IPQ-4018

Wireless 5 GHz generation Wi-Fi 5

AC speed AC1200



Ethernet:

10/100/1000 Ethernet ports 2

Number of 1G Ethernet ports with PoE-out 1



Powering:

Number of DC inputs 1 (PoE-IN)

Max power consumption 24 W

Max power consumption without attachments 11 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 18-57 V

(RBcAPGi-5acD2nD-XL)

SKU RBcAPGi-5acD2nD-XL
Barcode # 4752224007278
Brand MIKROTIK
Shipping Weight 1.0000kg

Manufacturer Warranty
