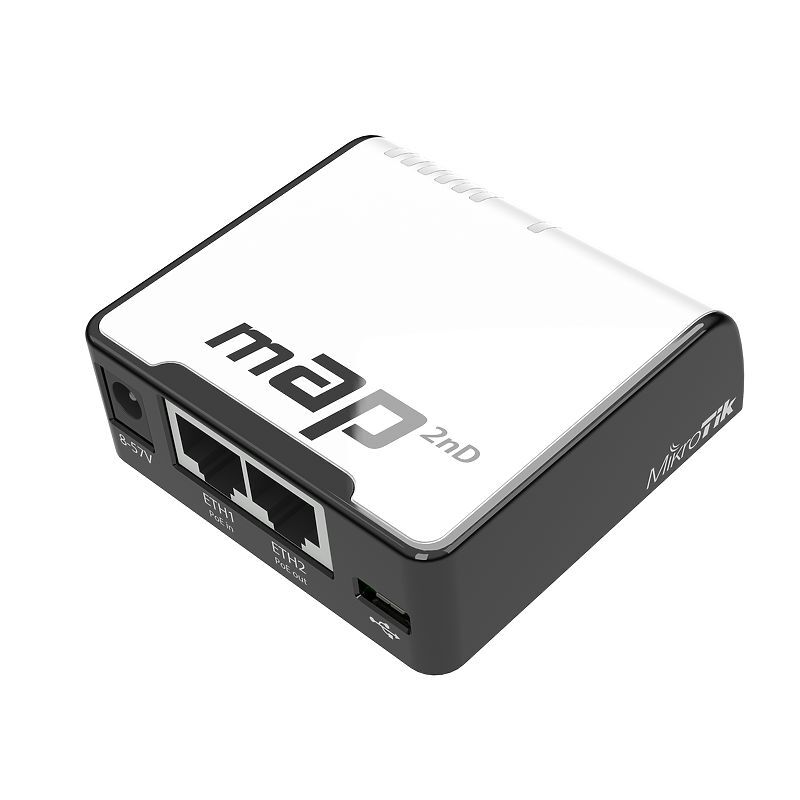

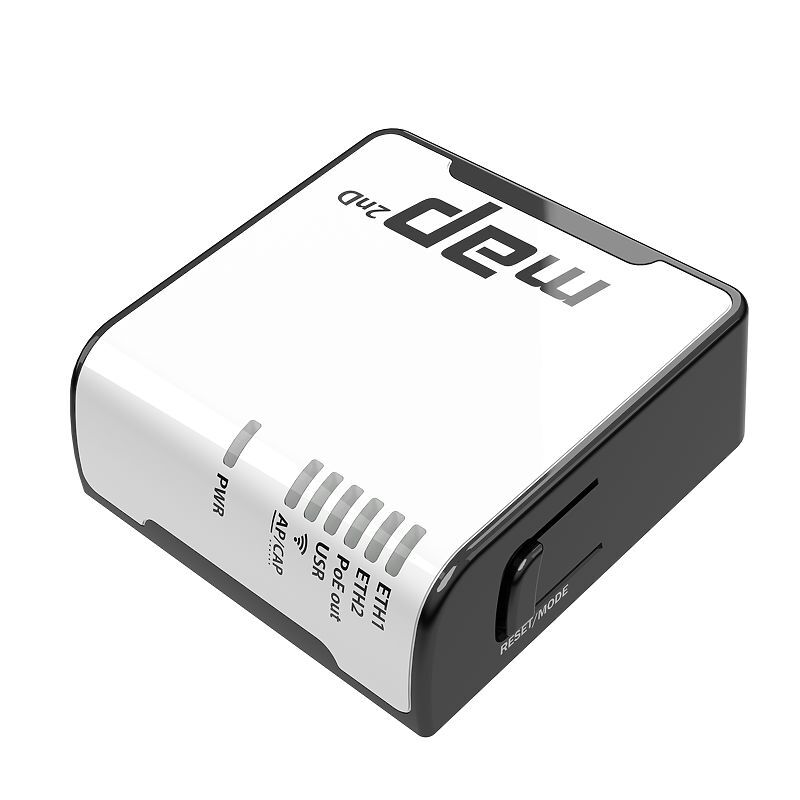

MikroTik RBmAP-2nD AR9331 CPU, 64MB RAM, 2xLAN, built-in 2.4Ghz 802.11bgn wireless
MikroTik mAP is a Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out.
The MikrotTik mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities.
It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack.
It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Specifications:DetailsProduct codeRBmAP2nDArchitectureMIPSBECPUQCA9531CPU core count1CPU nominal frequency650 MHzDimensions68x68x19mmLicense level4Operating SystemRouterOSSize of RAM64 MBStorage size16 MBStorage typeFLASHTested ambient temperature-10C to +70C tested
Powering:DetailsMax Power consumption5WMicroUSB input Voltage5-5 VPoE in802.3af/atPoE outPassive PoEPoE in input Voltage12-57 VNumber of DC inputs3 (DC jack, MicroUSB, PoE-IN)DC jack input Voltage8-57 V
Wireless:DetailsWireless 2.4 GHz number of chains2Wireless 2.4 GHz standards802.11b/g/nAntenna gain dBi for 2.4 GHz1.2Wireless 2.4 GHz chip modelQCA9531
Ethernet:Details10/100 Ethernet ports2
Peripherals:DetailsNumber of USB ports1USB Power ResetYesUSB slot typemicroUSB type ABMax USB current (A)1
Other:DetailsPCB temperature monitorYesVoltage MonitorYes
Wireless specifications:2.4 GHzTransmit (dBm)Receive Sensitivity1MBit/s22-9611MBit/s22-896MBit/s20-9354MBit/s18-74MCS020-93MCS716-71
