Wide sector coverage
The built-in antenna has a 90° beamwidth. The radio supports a maximum data rate of 300 Mbit/s, and RouterOS provides routing, firewall and bandwidth-management functions.

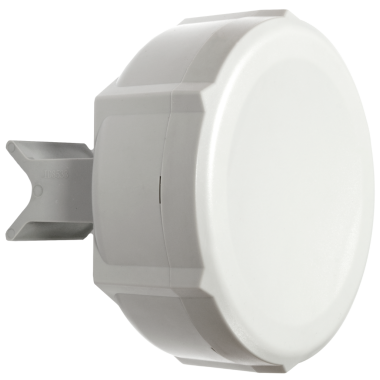

MikroTik RBSXTG-5HPnD-SAr2 SXT 5 GHz Sector Access Point, 14 dBi, 90°
-
SKU: RBSXTG-5HPnD-SAr2
- Pick Up Available
- Australian Warranty
- Checkout Securely
MikroTik RBSXTG-5HPnD-SAr2 SXT 5 GHz Sector Access Point, 14 dBi, 90°
The MikroTik RBSXTG-5HPnD-SAr2 combines a 5 GHz 802.11a/n radio, an integrated 14 dBi dual-chain sector antenna and a Gigabit Ethernet port. The ready-to-mount enclosure provides one-hand access and rear signal-strength indicators.
End-of-life product. Available only while current and expected arriving stocks last.
This 90° sector model is not recommended for point-to-point links or CPE applications.
Connections and monitoring
The device has a USB Type-A port with USB 2.0 specified in the description, voltage and temperature monitoring, and passive PoE input at 630 V. The enclosure measures 140 × 140 × 56 mm and is rated IP54.
Product video
(RBSXTG-5HPnD-SAr2)
Features
- 5 GHz 802.11a/n wireless
- Integrated 14 dBi dual-chain sector antenna
- 90° antenna beamwidth
- One Gigabit Ethernet port
- Passive PoE input at 630 V
- USB 2.0, voltage and temperature monitoring
- Rear signal-strength indicators
- Extended L2MTU support
Specifications
Product specifications
| Product code | RBSXTG-5HPnD-SAr2 |
|---|---|
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
Powering
| Number of DC inputs | 1 (PoE-IN) |
|---|---|
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 6-30 V |
Ethernet
| 10/100/1000 Ethernet ports | 1 |
|---|
Peripherals
| Number of USB ports | 1 |
|---|---|
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Certification & Approvals
| Certification | CE, FCC, IC, EAC, ROHS |
|---|---|
| IP | IP54 |
Other
| PCB temperature monitor | Yes |
|---|---|
| Voltage Monitor | Yes |
| Beeper | Yes |
Wireless specifications
| Wireless 5 GHz Max data rate | 300 Mbit/s |
|---|---|
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
5 GHz TX/RX
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -95 |
| MCS7 | 26 | -73 |
Additional product details
| Antenna type | Sector |
|---|---|
| Antenna beamwidth | 90 degrees |
| USB standard | USB 2.0 |
| Application restriction | Not recommended for point-to-point or CPE applications |
| Product lifecycle | End of life; available while current and expected arriving stocks last |
| SKU | RBSXTG-5HPnD-SAr2 |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
Warranty assistance
For warranty assistance, contact DeviceDeal and quote product SKU RBSXTG-5HPnD-SAr2.
