SKU: RBwAPR-2nDR11e-LR9G

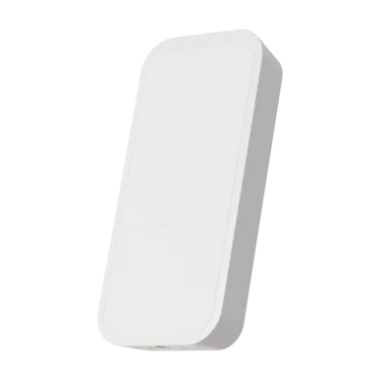

The MikroTik wAP LR9G kit is a rugged 915 MHz LoRa gateway with built-in GPS and 2.4 GHz Wi-Fi. A preinstalled UDP packet forwarder supports public or private LoRa networks, including The Things Network and The Things Industries.
Ships with RouterOS 7.23 or later for Australian LoRa frequency requirements.
There is no built-in LTE modem. The SIM slot can only be used after the LoRa interface card is removed and replaced with an LTE modem.
LoRa receive sensitivity reaches up to -141 dBm. Built-in GPS uses the MT3337V, and SMA female connectors provide external antenna options. The enclosure is designed for outdoor installations such as field and rooftop deployments.
Power is available through passive PoE, an automotive connector or a DC jack. The unit has one 10/100 Ethernet port, a miniPCI-e slot and RouterOS v7. Its Wi-Fi radio supports 802.11b/g/n and a maximum rate of 300 Mbit/s.
(RBwAPR-2nDR11e-LR9G)
| Product code | RBwAPR-2nD&R11e-LR9G |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
|---|---|
| DC jack input Voltage | 9-28 V |
| Automotive input Voltage | 12-30 V |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-28 V |
| 10/100 Ethernet ports | 1 |
|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
|---|---|
| MiniPCI-e slots | 1 |
| Certification | FCC, IC, EAC |
|---|---|
| IP | 54 |
| PCB temperature monitor | Yes |
|---|---|
| Voltage Monitor | Yes |
| GPS RF connector type | uUFL |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| LoRa frequency | 915 MHz |
|---|---|
| LoRa receive sensitivity | Up to -141 dBm |
| GPS module | MT3337V |
| External antenna connectors | SMA female |
| LTE modem | Not built in; requires replacing the LoRa interface card |
| Shipping RouterOS version | 7.23 or greater |
| SKU | RBwAPR-2nDR11e-LR9G |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
For warranty assistance, contact DeviceDeal and quote product SKU RBwAPR-2nD&R11e-LR9G.
