StarTech 90cm Mini DisplayPort MDP to DVI Adapter - MDP2DVIMM3B
Model # MDP2DVIMM3B
-
SKU: MDP2DVIMM3B
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech MDP2DVIMM3B 0.9m Mini DisplayPort to DVI Adapter Cable
0.9m Mini DisplayPort to DVI Adapter Cable designed for professional IT, electronics, security or workstation use.
Frequently asked questions
What is StarTech MDP2DVIMM3B?
It is a 0.9m passive Mini DisplayPort-to-DVI adapter cable that connects a DP++ Mini DisplayPort source directly to a DVI display at up to 1920 × 1200 or 1080p.
Which connections or mounting method are provided?

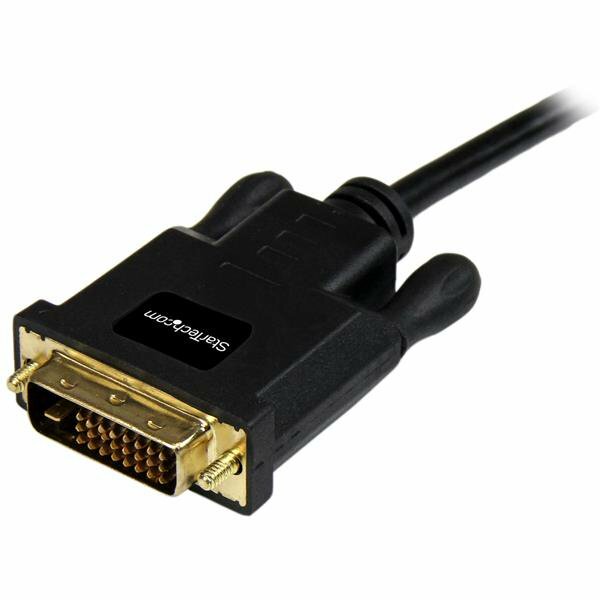

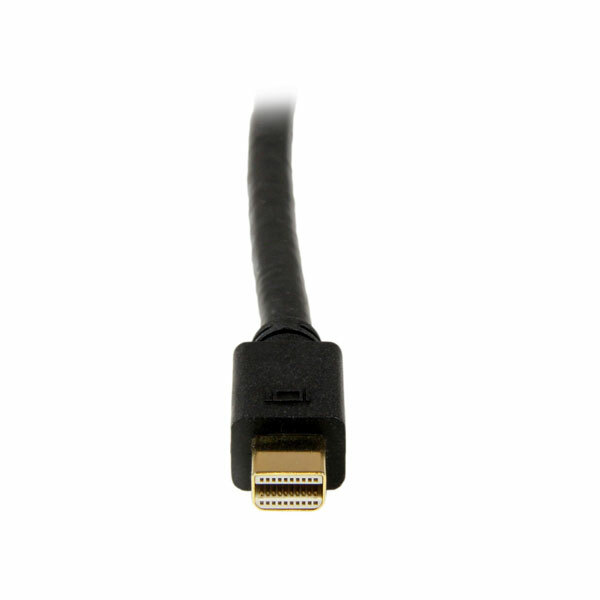

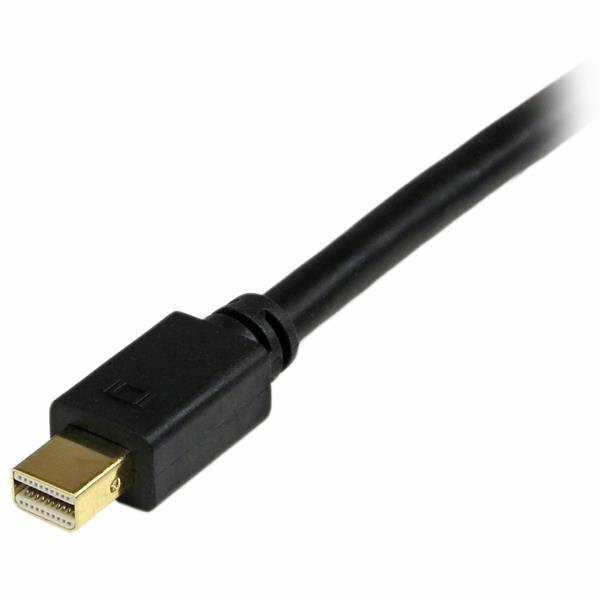

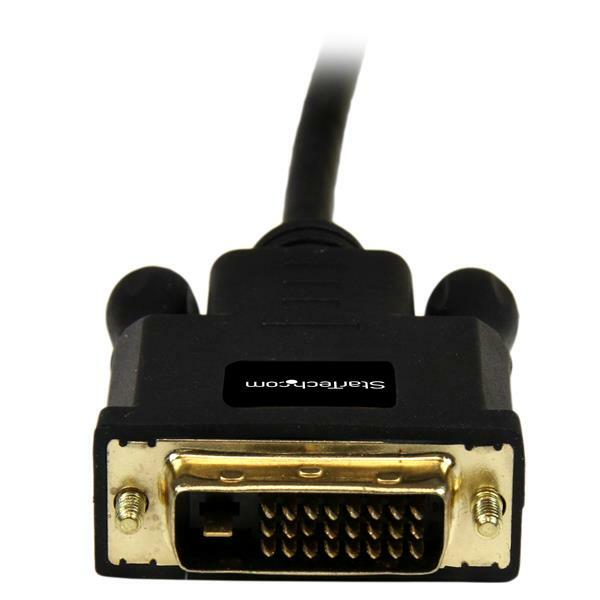

Mini DisplayPort 20-pin male to DVI-D 25-pin male
What performance is specified?
Up to 1920 × 1200 or 1080p; 0.9m maximum cable length; passive conversion; no audio
How is the product constructed?
Black 0.9m male-to-male cable adapter using an NXP 3361 chipset
Are both connectors male?
Yes. It has a Mini DisplayPort male source connector and a DVI-D male display connector.
Does it require DP++?
Yes. Passive DVI conversion requires a DP++ Mini DisplayPort source.
What should be checked before ordering?
A DP++ Mini DisplayPort source is required; the cable has male connectors at both ends and does not support audio.
What warranty applies?
MDP2DVIMM3B carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(MDP2DVIMM3B)
Why choose MDP2DVIMM3B?
MDP2DVIMM3B specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | 3 Years |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | DisplayPort |
| AV Output | DVI |
| Chipset ID | NXP - 3361 |
| Performance | |
| Maximum Cable Length | 3 ft [0.9 m] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Physical Characteristics | |
| Cable Length | 3 ft [0.9 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 36.2 in [92 cm] |
| Product Width | 1.5 in [38 mm] |
| Weight of Product | 2.5 oz [69.4 g] |
| Packaging Information | |
| Package Height | 0.7 in [17 mm] |
| Package Length | 8.7 in [22 cm] |
| Package Width | 7.9 in [20 cm] |
| Shipping (Package) Weight | 3 oz [86 g] |
| What's in the Box | |
| Included in Package | 1 - Mini DisplayPort® to DVI Adapter |
Sources: https://www.devicedeal.com.au/startech-90cm-mini-displayport-mdp-to-dvi-adapter and https://www.startech.com/
| SKU | MDP2DVIMM3B |
| Barcode # | 65030851527 |
| Brand | STARTECH |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000700000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the 3-year manufacturer warranty term listed for this exact product.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
