StarTech 7.1 USB Audio Adapter External Sound Card - ICUSBAUDIO7D
Model # ICUSBAUDIO7D
-
SKU: ICUSBAUDIO7D
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech ICUSBAUDIO7D 7.1 USB Audio Adapter External Sound Card
7.1 USB Audio Adapter External Sound Card for professional IT, AV or industrial connectivity applications.
Frequently asked questions
What is StarTech ICUSBAUDIO7D?
It is a 7.1-channel external USB sound card that adds analog and optical digital audio for 2, 5.1 or 7.1-channel computer sound.
Which connectors are provided?
USB Type-B; 2 × Toslink optical; multiple 3.5mm audio and microphone jacks
What performance is specified?
44.1/48kHz analog playback and recording; 48kHz SPDIF; up to 7.1-channel analog output
How is it powered?
Bus powered through USB
Does SPDIF carry 5.1 or 7.1 audio?
No. The optical SPDIF pass-through port is specified for two-channel audio at 48kHz; multi-channel output uses the analog connections.
Which channel layouts are supported?
The adapter supports 2, 5.1 and 7.1-channel analog output configurations.
What should be checked before ordering?
Confirm current operating-system support and speaker connections; SPDIF optical pass-through supports two-channel audio, not 5.1 or 7.1.
What warranty applies?
ICUSBAUDIO7D carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(ICUSBAUDIO7D)
Why choose ICUSBAUDIO7D?
ICUSBAUDIO7D specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Chipset | C-Media CM6206 |
| Host Interface | USB 2.0 |
| Material | Steel |
| Colour | Silver |
| Audio Performance | |
| Analog Channels | 2, 5.1 or 7.1 output |
| Analog Sampling | 44.1kHz and 48kHz playback / recording |
| SPDIF Sampling | 48kHz |
| SPDIF Pass-through | Two-channel audio only |
| Connectors | |
| Host | 1 × USB Type-B |

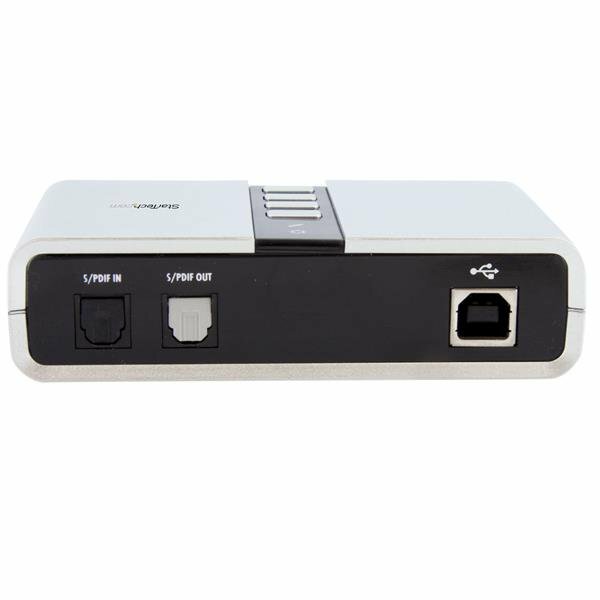

| Optical Audio | 2 × Toslink SPDIF |

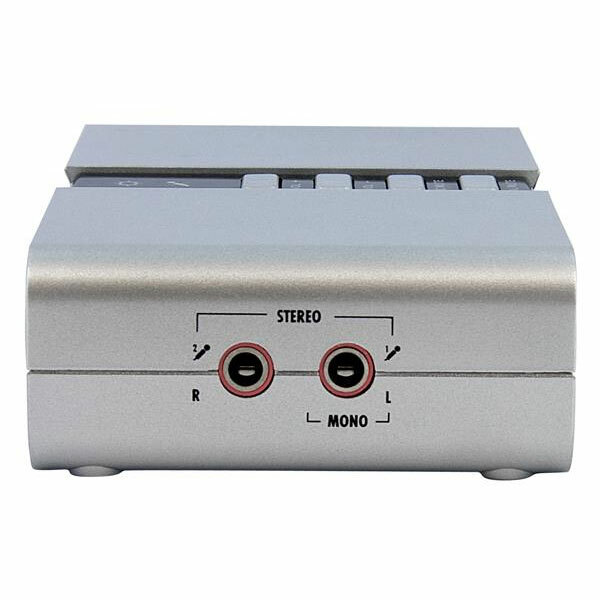

| Analog Audio | Headphone, line-in, speaker outputs and stereo microphone inputs via 3.5mm jacks |
| Power | |
| Power Source | Bus powered through USB |
| Environmental | |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | 0°C to 70°C |
| Humidity | 2080% RH, non-condensing |
| Physical Characteristics | |
| Dimensions | 100 × 60 × 25mm |
| Weight | 90g |
| USB Cable | 1m included |
| What's in the Box | |
| Included | USB sound card; 1m USB cable; software; model-specific documentation |
Sources: https://www.devicedeal.com.au/startech-7.1-usb-audio-adapter-external-sound-card and https://www.startech.com/
| SKU | ICUSBAUDIO7D |
| Barcode # | 65030835466 |
| Brand | Startech |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
