StarTech.com · ICUSB232V2

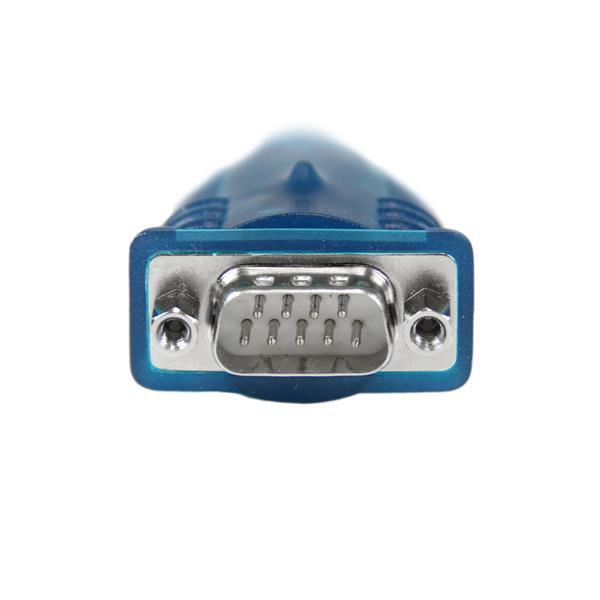

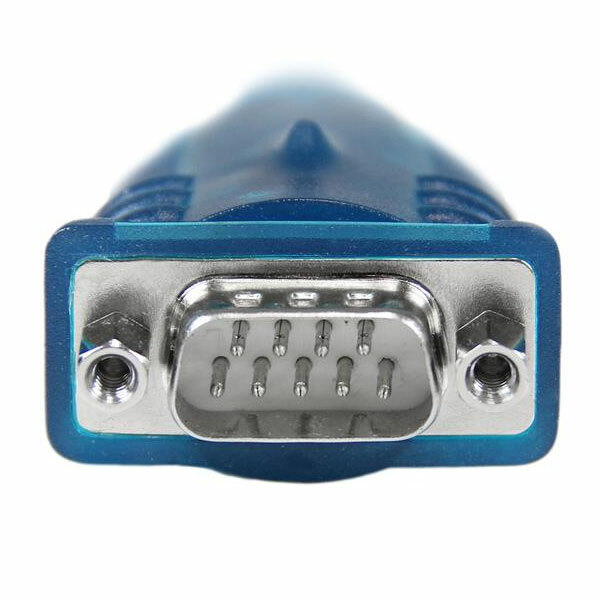

StarTech ICUSB232V2 1-Port USB-to-DB9 RS232 Serial Adapter

1-Port USB-to-DB9 RS232 Serial Adapter for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB232V2 converts one USB Type-A port into a DB9 RS232 serial connection at speeds up to 921.6Kbps.

Best forPOS terminals, serial modems, industrial equipment, console access and other compatible RS232 peripherals.

Check before orderingConfirm current driver support, USB host compatibility and the DB9 RS232 pinout and settings required by the device.

Answers before you buy

What is StarTech ICUSB232V2?

It is a compact adapter cable that converts one USB Type-A port into a DB9 RS232 serial connection at speeds up to 921.6Kbps.

How many RS232 ports are provided?

It provides 1 RS232 serial port.

Which connectors are fitted?

The host side uses USB Type-A male; the serial side provides 1 × DB9 male RS232.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the Prolific PL2303RA chipset.

Does it need an external power adapter?

No. It is powered through USB.

Which serial settings are supported?

It supports 58 data bits, common parity and flow-control modes, and 1, 1.5 or 2 stop bits.

What warranty applies?

ICUSB232V2 carries a StarTech.com 3-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB232V2)

Features & highlights

Why choose ICUSB232V2?

?Adds RS232 connectivityConnect one compatible serial device through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with 1 × DB9 male RS232.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformProlific PL2303RA chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageSupports common serial settings including 58 data bits, configurable parity, flow control and 1, 1.5 or 2 stop bits.

Compatibility reminder: Confirm current driver support, USB host compatibility and the DB9 RS232 pinout and settings required by the device.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Product Type	compact adapter cable
Ports	1
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	Prolific PL2303RA
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	1 × DB9 male RS232
Power
Power Source	USB powered
Physical Characteristics
Length	43cm (16.9in) overall
Dimensions / Weight	430 × 35 × 20mm; 40g
Colour	Black unless otherwise specified
Special Feature
Details	Supports common serial settings including 58 data bits, configurable parity, flow control and 1, 1.5 or 2 stop bits.
What's in the Box
Included	1-Port USB-to-DB9 RS232 Serial Adapter and model-specific supplied accessories
