StarTech.com · ICUSB2324

StarTech ICUSB2324 4-Port USB-to-RS232 Serial Adapter Hub

4-Port USB-to-RS232 Serial Adapter Hub for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB2324 adds four DB9 RS232 serial ports to a Mac or PC through one bus-powered USB connection.

Best forOffice, lab, POS and service-desk setups that need several RS232 devices without an external power adapter.

Check before orderingConfirm current driver support and that each connected device uses compatible DB9 RS232 signalling and pin assignments.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB2324?

It is a four-port desktop hub that adds four DB9 RS232 serial ports to a Mac or PC through one bus-powered USB connection.

How many RS232 ports are provided?

It provides 4 RS232 serial ports.

Which connectors are fitted?

The host side uses USB Type-A male; the serial side provides 4 × DB9 male RS232.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT232RL chipset.

Does it need an external power adapter?

No. It is powered through USB.

Does the hub need an external power adapter?

No. It is bus powered through the USB connection.

What warranty applies?

ICUSB2324 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB2324)

Features & highlights

Why choose ICUSB2324?

?Adds RS232 connectivityConnect up to 4 compatible serial devices through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with 4 × DB9 male RS232.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT232RL chipset supports the adapters stated serial feature set.

?Power and constructionUSB bus powered; plastic enclosure construction.

?Installation advantageBus-powered operation removes the need for a separate external power adapter.

Compatibility reminder: Confirm current driver support and that each connected device uses compatible DB9 RS232 signalling and pin assignments.

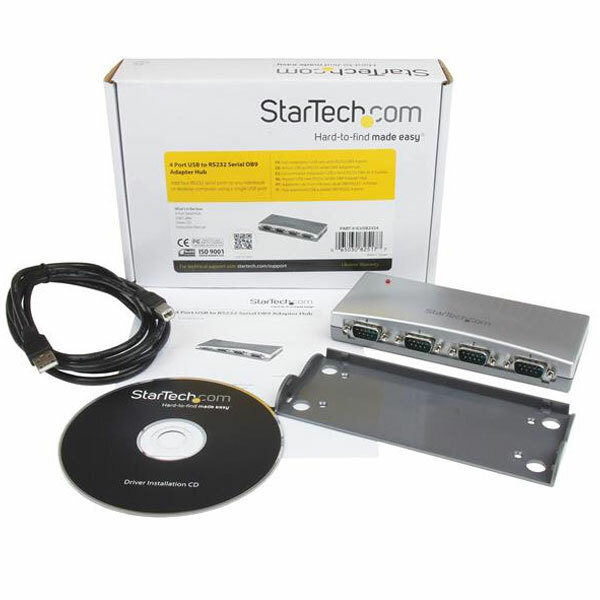

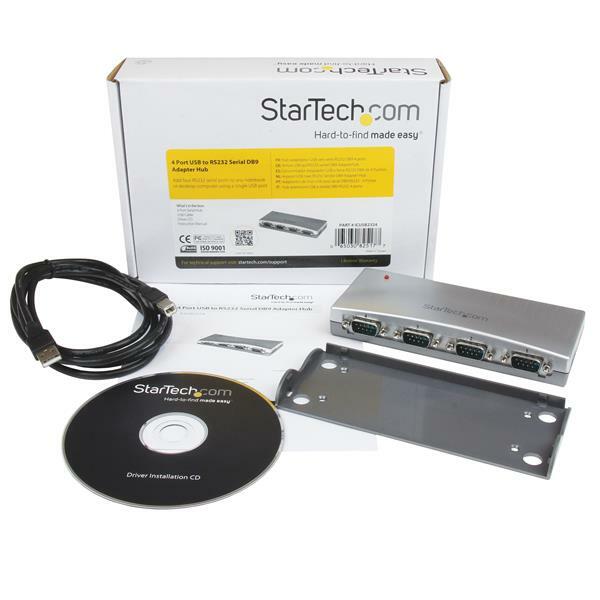

StarTech ICUSB2324 4-Port USB-to-RS232 Serial Adapter Hub product image

Technical specifications

ICUSB2324 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Product Type	four-port desktop hub
Ports	4
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	FTDI FT232RL
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	4 × DB9 male RS232
Power
Power Source	USB bus powered
Physical Characteristics
Length	1.8m (6ft) USB cable
Dimensions / Weight	150 × 66.5 × 26mm; 175g
Colour	Black unless otherwise specified
Special Feature
Details	Bus-powered operation removes the need for a separate external power adapter.
What's in the Box
Included	4-Port USB-to-RS232 Serial Adapter Hub and model-specific supplied accessories
