StarTech 4 Port USB A Female Slot Plate Adapter - USBPLATE4
Model # USBPLATE4
-
SKU: USBPLATE4
- Pick Up Available
- Australian Warranty
- Checkout Securely

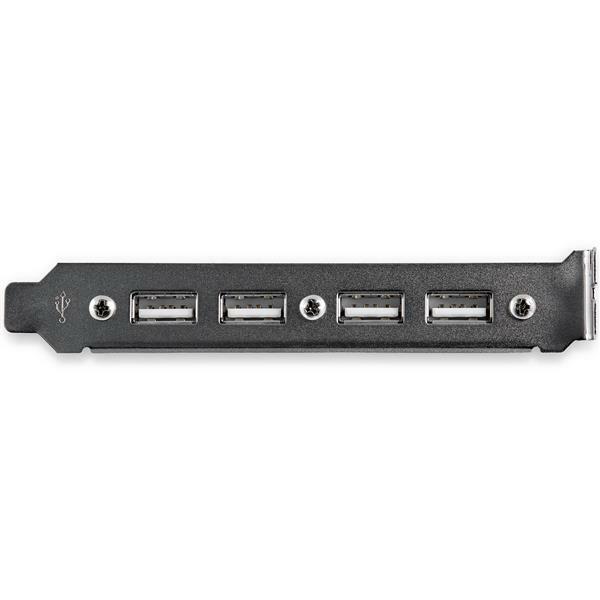

StarTech 4-Port USB-A Female Full-Height Slot Plate Adapter
Add four rear USB-A female ports to a compatible desktop case using a full-height bracket and two internal 10-pin motherboard USB header leads.
Why choose USBPLATE4?
Four USB-A female ports on a rear full-height bracket.
Two IDC 10-pin female motherboard-header connectors.
Supports two compatible rows of 4-pin or 5-pin USB connections.
Best-fit applications
- Adding four rear USB 2.0 ports to a desktop
- Using two available motherboard USB headers
- Connecting multiple low-bandwidth USB peripherals
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does USBPLATE4 add?
It adds four rear USB-A female ports using two compatible motherboard USB header connections.
How many motherboard headers are required?
It uses two IDC 10-pin female header connectors.
Is it a USB controller card?
No. It is a passive bracket that routes existing motherboard USB connections.
What data rate is supported?
It supports USB 2.0 connections up to 480Mbps with compatible hardware.
Does it fit a low-profile case?
It is a full-height slot plate, so confirm the chassis bracket format before purchase.
Why is the pinout important?
Incorrect USB header alignment can apply power to the wrong pins and damage connected equipment.
Does it share bandwidth?
Available bandwidth and power are determined by the connected motherboard USB headers and controller.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBPLATE4)
Features and highlights
- Four USB-A female ports on a rear full-height bracket
- Two IDC 10-pin female motherboard-header connectors
- Supports two compatible rows of 4-pin or 5-pin USB connections
- USB 2.0 data transfer up to 480Mbps
- 28.6cm internal cables for case routing
- Lifetime StarTech.com manufacturer warranty
StarTech 4-Port USB-A Female Full-Height Slot Plate Adapter
Product ID: USBPLATE4
Connections and performance
| Motherboard connectors | 2 x IDC 10-pin female |
|---|---|
| External ports | 4 x USB 2.0 Type-A female |
| Maximum data rate | 480Mbps |
| Compatible header rows | 4-pin or 5-pin USB connections, subject to motherboard pinout |
Environment
| Operating temperature | -5 to 40°C |
|---|---|
| Storage temperature | -5 to 80°C |
| Humidity | 20% to 60% RH |
Physical and package
| Bracket format | Full-height expansion-slot plate |
|---|---|
| Cable length | 286mm (11.3in) |
| Colour | Grey |
| Weight | 68g |
| Included | Four-port USB 2.0 connector backplate |
| Warranty | Lifetime |
| SKU | USBPLATE4 |
| Barcode # | 65030797092 |
| Brand | STARTECH |
| Shipping Weight | 0.0700kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001050000m3 |
