StarTech ICUSB232DB25 USB-to-RS232 DB9 and DB25 Serial Adapter Cable

USB-to-RS232 DB9 and DB25 Serial Adapter Cable for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB232DB25 connects a compatible DB9 or DB25 RS232 device through USB using the included DB9-to-DB25 adapter.

Best forLegacy modems, POS equipment, industrial controllers and other RS232 devices that use DB9 or DB25 connections.

Check before orderingConfirm whether the serial device requires DB9 or DB25, verify the pinout and check driver support for the operating system.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB232DB25?

It is a DB9/DB25 adapter cable that connects a compatible DB9 or DB25 RS232 device through USB using the included DB9-to-DB25 adapter.

How many RS232 ports are provided?

It provides 1 RS232 serial port.

Which connectors are fitted?

The host side uses USB Type-A male; the serial side provides DB9 RS232 connection plus included DB9-to-DB25 adapter.

What is the maximum baud rate?

The specified maximum baud rate is 230.4Kbps.

Which chipset is used?

It uses the Prolific PL2303 chipset.

Does it need an external power adapter?

No. It is powered through USB.

How are DB9 and DB25 devices supported?

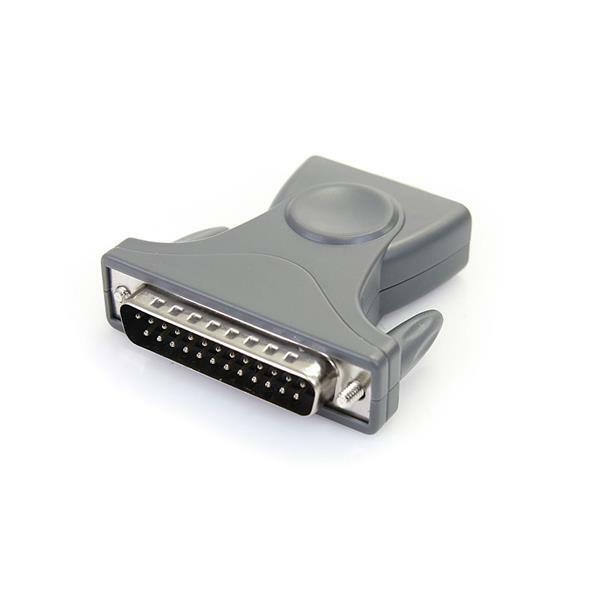

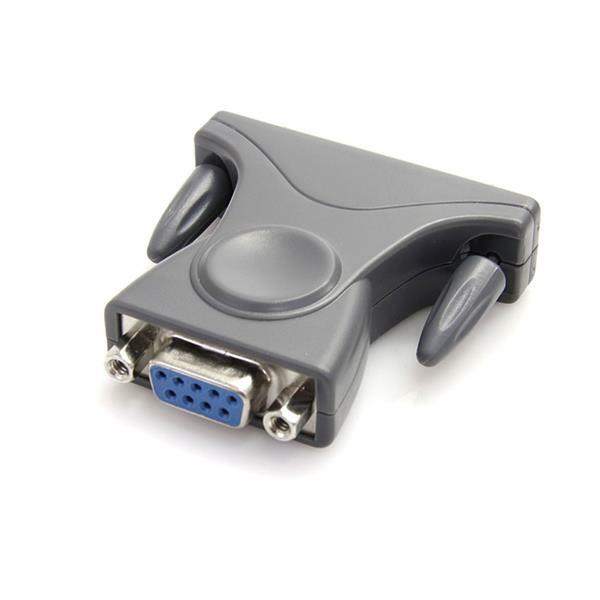

The USB-to-RS232 cable is supplied with a DB9-to-DB25 serial adapter for compatible 25-pin devices.

What warranty applies?

ICUSB232DB25 carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB232DB25)

Features & highlights

Why choose ICUSB232DB25?

?Adds RS232 connectivityConnect one compatible serial device through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with DB9 RS232 connection plus included DB9-to-DB25 adapter.

?Specified serial performanceSupports RS232 communication at baud rates up to 230.4Kbps.

?Defined hardware platformProlific PL2303 chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageAn included DB9-to-DB25 serial adapter supports either connector format without purchasing a separate converter.

Compatibility reminder: Confirm whether the serial device requires DB9 or DB25, verify the pinout and check driver support for the operating system.

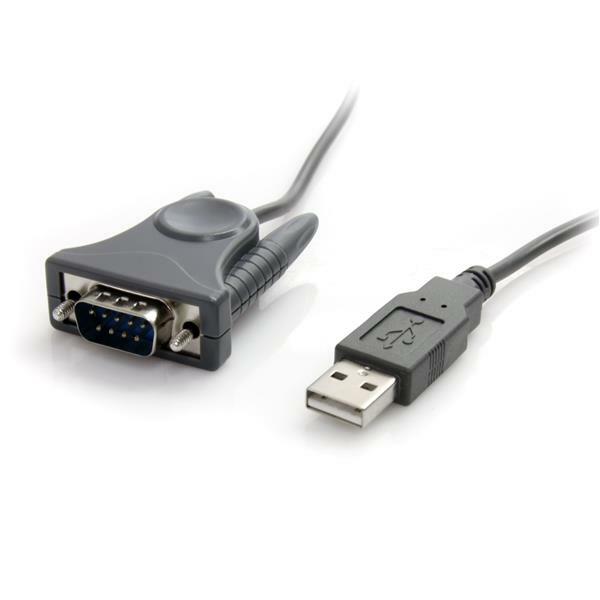

StarTech ICUSB232DB25 USB-to-RS232 DB9 and DB25 Serial Adapter Cable product image

Technical specifications

ICUSB232DB25 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	DB9/DB25 adapter cable
Ports	1
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	Prolific PL2303
Enclosure	Plastic
Performance
Maximum Baud Rate	230.4Kbps
Serial Ports	DB9 RS232 connection plus included DB9-to-DB25 adapter
Power
Power Source	USB powered
Physical Characteristics
Length	0.9m (3ft)
Dimensions / Weight	Cable 0.9m; 75g; grey
Colour	Black unless otherwise specified
Special Feature
Details	An included DB9-to-DB25 serial adapter supports either connector format without purchasing a separate converter.
What's in the Box
Included	USB-to-RS232 DB9 and DB25 Serial Adapter Cable and model-specific supplied accessories
