StarTech.com · ICUSBAUDIO2D

StarTech ICUSBAUDIO2D USB Stereo Audio Adapter with SPDIF

USB Stereo Audio Adapter with SPDIF for professional IT, AV or industrial connectivity applications.

Quick answer: ICUSBAUDIO2D adds optical SPDIF, 3.5mm audio and microphone connections through USB.

Best forLaptops and desktops needing an external stereo sound card, optical audio output, headset support or quick hardware volume control.

Check before orderingConfirm operating-system support and whether you need stereo microphone input; 5.1 output is supported on compatible Windows systems only.

Answers before you buy

Frequently asked questions

What is StarTech ICUSBAUDIO2D?

It is a external USB sound card that adds optical SPDIF, 3.5mm audio and microphone connections through USB.

Which connectors are provided?

USB 2.0 Type-A; 3.5mm headphone; 3.5mm TRRS headset/mic; Mini-Toslink SPDIF

What performance is specified?

Up to 96kHz / 24-bit playback; AC3 and DTS pass-through support

How is it powered?

USB powered

What digital audio formats are supported?

The SPDIF output supports AC3 Dolby Digital and DTS pass-through; system and software compatibility still apply.

Does it support 96kHz / 24-bit audio?

Yes. The USB DAC is specified for playback sampling rates up to 96kHz / 24-bit.

What should be checked before ordering?

Confirm operating-system support and whether you need stereo microphone input; 5.1 output is supported on compatible Windows systems only.

What warranty applies?

ICUSBAUDIO2D carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSBAUDIO2D)

Features & highlights

Why choose ICUSBAUDIO2D?

?Purpose-built connectivityUSB 2.0 Type-A; 3.5mm headphone; 3.5mm TRRS headset/mic; Mini-Toslink SPDIF

?Specified performanceUp to 96kHz / 24-bit playback; AC3 and DTS pass-through support

?Power arrangementUSB powered

?Construction and deploymentCompact black plastic adapter with attached 406.5mm USB cable

?Key capabilityHardware volume knob, bass/treble EQ switch and LED sample-rate indicators provide direct control.

?Installation advantageThe microphone input is stereo only; 5.1 surround output is supported on compatible Windows systems only.

Compatibility reminder: Confirm operating-system support and whether you need stereo microphone input; 5.1 output is supported on compatible Windows systems only.

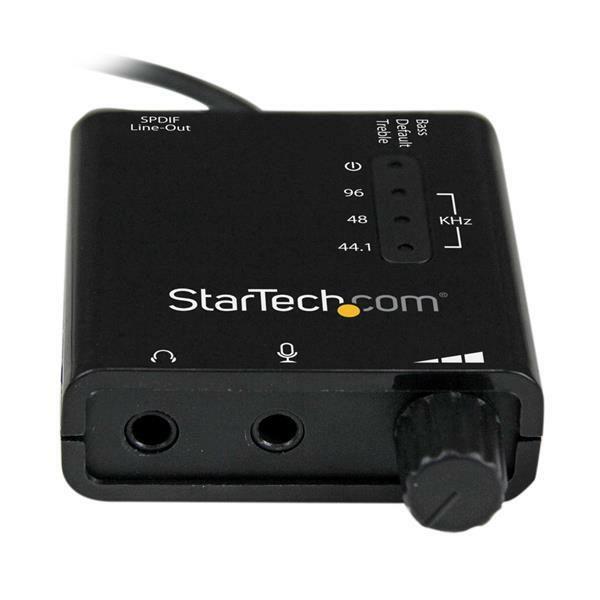

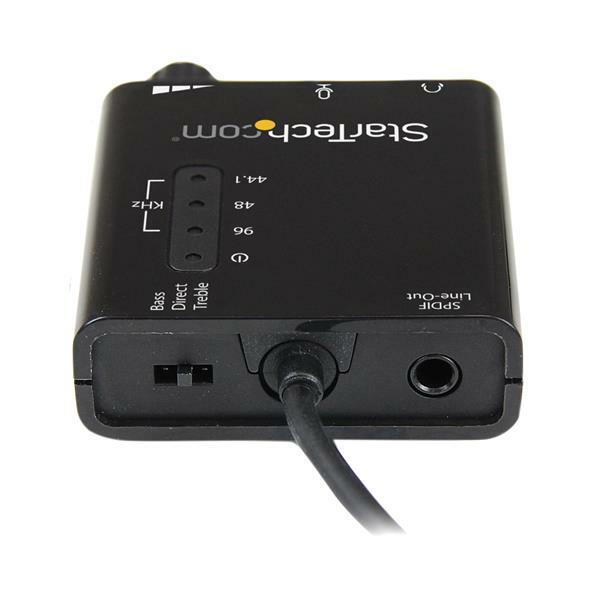

StarTech ICUSBAUDIO2D USB Stereo Audio Adapter with SPDIF product image

Technical specifications

ICUSBAUDIO2D specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 2.0
Chipset	C-Media CM6533
Material	Plastic
Colour	Black
Audio Performance
Maximum Playback Sampling	96kHz / 24-bit
Digital Audio	SPDIF with AC3 Dolby Digital and DTS pass-through
Surround Note	5.1 output supported on compatible Windows systems only
Microphone Note	Stereo microphone input only
Connectors
Host	1 × USB Type-A
Audio	1 × 3.5mm 3-position; 1 × 3.5mm 4-position TRRS
Digital Audio	1 × 3.5mm Mini-Toslink SPDIF optical
Power
Power Source	USB powered
Environmental
Operating Temperature	0°C to 60°C
Storage Temperature	0°C to 70°C
Humidity	1090% RH, non-condensing
Physical Characteristics
Cable Length	406.5mm
Adapter Dimensions	47 × 46 × 16mm
Weight	33g
What's in the Box
Included	USB stereo audio adapter; software CD; instruction manual

Sources: https://www.devicedeal.com.au/startech-usb-sound-card-audio-adapter-w-spdif and https://www.startech.com/

SKU	ICUSBAUDIO2D
Barcode #	65030852296
Brand	STARTECH
Shipping Weight	0.0900kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
