StarTech.com · ICUSBAUDIOB

StarTech ICUSBAUDIOB USB Audio Adapter External Sound Card

USB Audio Adapter External Sound Card for professional IT, AV or industrial connectivity applications.

Quick answer: ICUSBAUDIOB adds separate 3.5mm headphone and microphone ports to a USB-equipped computer.

Best forHeadsets and microphones on laptops or desktops with a spare USB port and separate 3.5mm audio connections.

Check before orderingThe microphone input is mono, not stereo. Confirm the headset uses separate headphone and microphone plugs rather than one TRRS plug.

Answers before you buy

Frequently asked questions

What is StarTech ICUSBAUDIOB?

It is a compact external USB sound adapter that adds separate 3.5mm headphone and microphone ports to a USB-equipped computer.

Which connectors are provided?

1 × USB 2.0 Type-A; 2 × 3.5mm three-position mini-jacks

What performance is specified?

USB Audio Device Specification 1.0; mono microphone input

How is it powered?

USB powered, 5V DC

Is the microphone input stereo?

No. The ICUSBAUDIOB microphone input supports mono audio only.

Does it accept a single four-pole headset plug?

No. It provides separate 3.5mm headphone and microphone ports, so a combined TRRS headset may require a splitter.

What should be checked before ordering?

The microphone input is mono, not stereo. Confirm the headset uses separate headphone and microphone plugs rather than one TRRS plug.

What warranty applies?

ICUSBAUDIOB carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSBAUDIOB)

Features & highlights

Why choose ICUSBAUDIOB?

?Purpose-built connectivity1 × USB 2.0 Type-A; 2 × 3.5mm three-position mini-jacks

?Specified performanceUSB Audio Device Specification 1.0; mono microphone input

?Power arrangementUSB powered, 5V DC

?Construction and deploymentCompact black plastic adapter

?Key capabilityPlug the adapter into USB and connect separate headphone and microphone plugs without opening the computer.

?Installation advantageWorks as an external sound interface and avoids repeatedly disconnecting other audio devices.

Compatibility reminder: The microphone input is mono, not stereo. Confirm the headset uses separate headphone and microphone plugs rather than one TRRS plug.

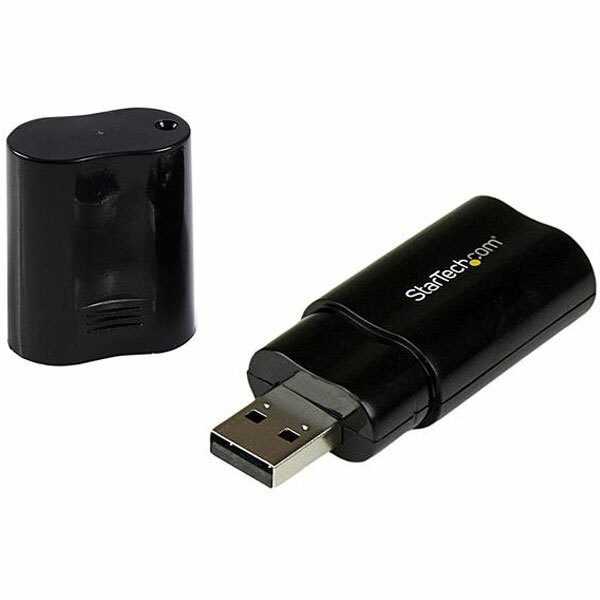

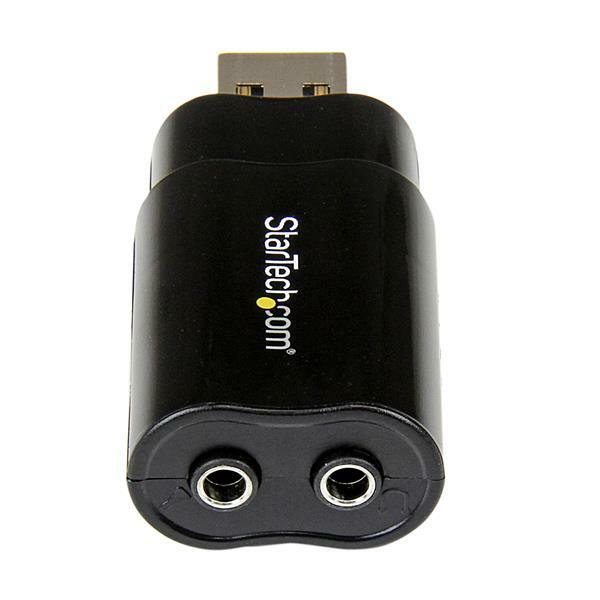

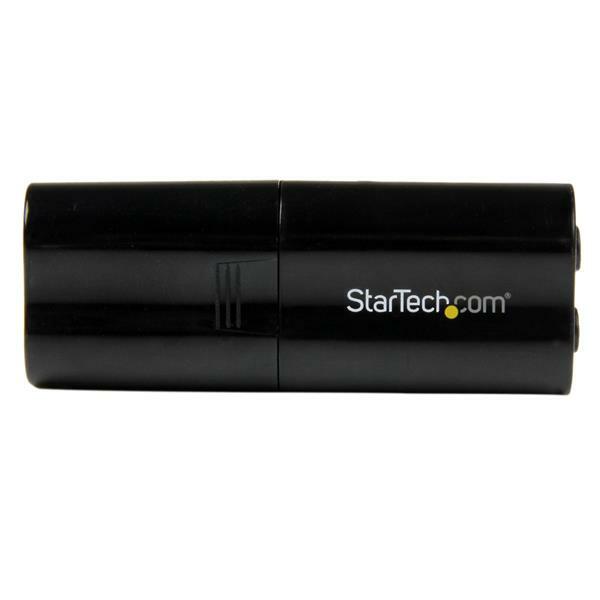

StarTech ICUSBAUDIOB USB Audio Adapter External Sound Card product image

Technical specifications

ICUSBAUDIOB specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Host Interface	USB 2.0
USB Audio Standard	USB Audio Device Specification 1.0
Chipset	C-Media CM108B
Material	Plastic
Colour	Black
Audio Performance
Headphone Output	3.5mm
Microphone Input	3.5mm mono input only
Connectors
Host	1 × USB Type-A
Audio	2 × 3.5mm three-position mini-jacks
Power
Input / Output Voltage	5V DC
Power Source	USB powered
Physical Characteristics
Product Type	Compact external sound adapter
What's in the Box
Included	USB audio adapter; instruction manual
