StarTech.com · ICUSBROLLOVR

StarTech ICUSBROLLOVR 1.8m Cisco-Compatible USB Console Rollover Cable

1.8m Cisco-Compatible USB Console Rollover Cable for professional IT, AV or industrial connectivity applications.

Quick answer: ICUSBROLLOVR connects a USB computer directly to an RJ45 console port on compatible network equipment.

Best forConfiguring compatible routers, switches, firewalls and servers from Windows, macOS or Linux computers.

Check before orderingThis is an RS-232 rollover console cable, not an Ethernet network cable. Confirm the device console pinout and driver support.

Answers before you buy

Frequently asked questions

What is StarTech ICUSBROLLOVR?

It is a USB-to-RJ45 console rollover cable that connects a USB computer directly to an RJ45 console port on compatible network equipment.

Which connectors are provided?

USB 2.0 Type-A male to RJ45 male

What performance is specified?

Up to 460.8Kbps; RS-232; 58 data bits

How is it powered?

Bus powered; no external adapter required

Can it be used as a regular Ethernet cable?

No. It is wired for RS-232 rollover console access and does not provide an Ethernet network link.

Which network brands are listed as compatible?

The source lists compatibility with many Cisco, Juniper, Ubiquiti and TP-Link console-equipped devices; verify the exact model pinout.

What should be checked before ordering?

This is an RS-232 rollover console cable, not an Ethernet network cable. Confirm the device console pinout and driver support.

What warranty applies?

ICUSBROLLOVR carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSBROLLOVR)

Features & highlights

Why choose ICUSBROLLOVR?

?Purpose-built connectivityUSB 2.0 Type-A male to RJ45 male

?Specified performanceUp to 460.8Kbps; RS-232; 58 data bits

?Power arrangementBus powered; no external adapter required

?Construction and deployment1.8m black PVC cable; 28AWG; Prolific chipset

?Key capabilityDirect console connection avoids a separate USB-to-serial adapter and rollover cable combination.

?Installation advantageSource compatibility includes many Cisco, Juniper, Ubiquiti and TP-Link console-equipped devices.

Compatibility reminder: This is an RS-232 rollover console cable, not an Ethernet network cable. Confirm the device console pinout and driver support.

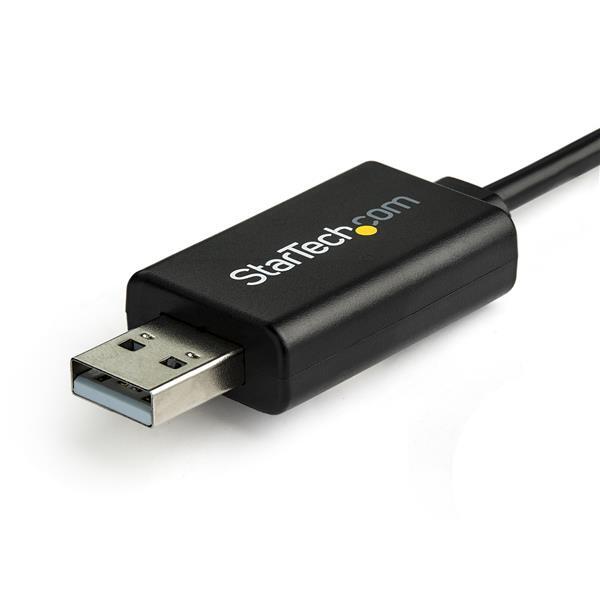

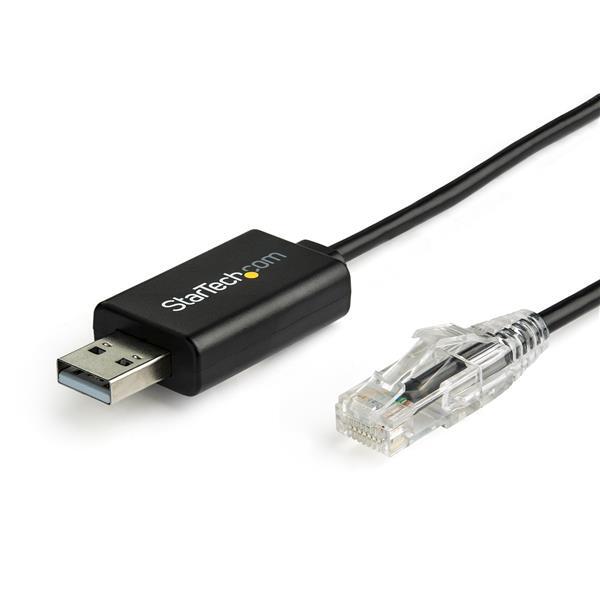

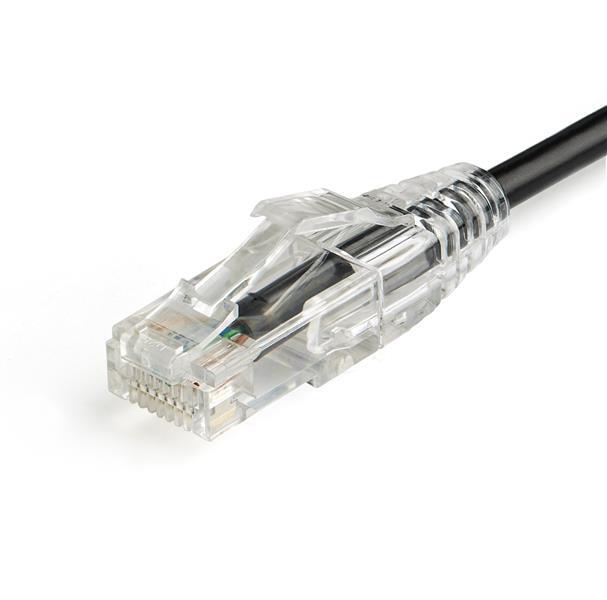

StarTech ICUSBROLLOVR 1.8m Cisco-Compatible USB Console Rollover Cable product image

Technical specifications

ICUSBROLLOVR specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 2.0
Chipset	Prolific PL2303 family
Supported Protocol	RS-232
Cable Jacket	PVC
Wire Gauge	28AWG
Performance
Maximum Baud Rate	460.8Kbps
Data Bits	5, 6, 7, 8
Parity	Odd, even, mark, space or none
Stop Bits	1, 1.5 or 2
Connectors
Connector A	USB Type-A male
Connector B	RJ45 male
Connector Plating	Nickel
Power
Power Source	Bus powered
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-20°C to 80°C
Humidity	2080% RH
Physical Characteristics
Cable Length	1.8m
Colour	Black
Weight	40g
What's in the Box
Included	USB-to-RJ45 rollover cable; quick-start guide

Sources: https://www.devicedeal.com.au/startech-6-ft-1.8-m-cisco-usb-console-cable-usb-to and https://www.startech.com/

SKU	ICUSBROLLOVR
Barcode #	65030880459
Brand	STARTECH
Shipping Weight	0.0900kg
Shipping Width	0.140m
Shipping Height	0.030m
Shipping Length	0.170m
Shipping Cubic	0.000714000m3

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
