StarTech.com · ICUSB2328I

StarTech ICUSB2328I 8-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts

8-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB2328I adds eight RS232 ports in a rugged steel enclosure with included wall and DIN-rail mounting hardware.

Best forIndustrial control, automation, POS, laboratory and equipment-room installations connecting up to eight RS232 devices.

Check before orderingConfirm driver support, mounting space, USB power availability and the DB9 pin requirements of every connected device.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB2328I?

It is a industrial eight-port hub that adds eight RS232 ports in a rugged steel enclosure with included wall and DIN-rail mounting hardware.

How many RS232 ports are provided?

It provides 8 RS232 serial ports.

Which connectors are fitted?

The host side uses USB Type-B female; the serial side provides 8 × DB9 RS232 ports.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT232RL chipset.

Does it need an external power adapter?

No. It is powered through USB.

Which mounting options are included?

The hub includes wall-mounting brackets and top-hat DIN-rail clips.

What warranty applies?

ICUSB2328I carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB2328I)

Features & highlights

Why choose ICUSB2328I?

?Adds RS232 connectivityConnect up to 8 compatible serial devices through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-B female host connection with 8 × DB9 RS232 ports.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT232RL chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered, 5V DC / 250mA stated input; steel enclosure construction.

?Installation advantageIncluded wall brackets and top-hat DIN-rail clips support secure mounting in industrial environments.

Compatibility reminder: Confirm driver support, mounting space, USB power availability and the DB9 pin requirements of every connected device.

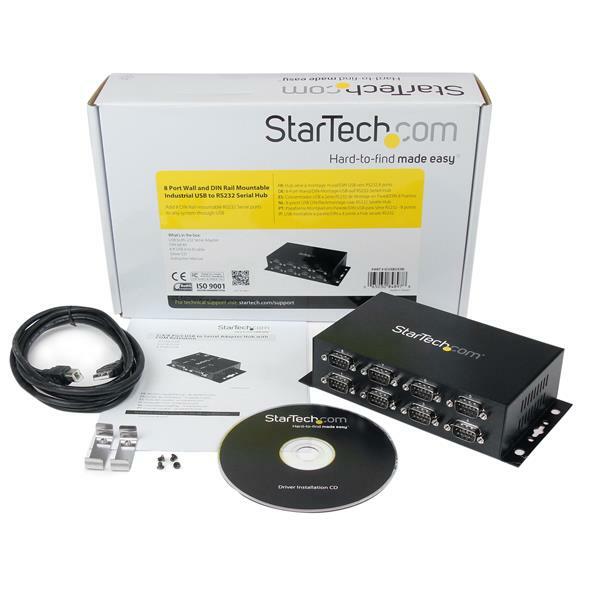

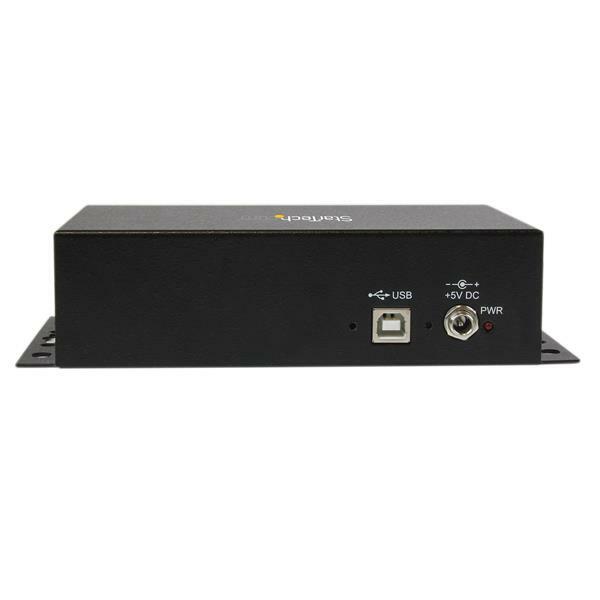

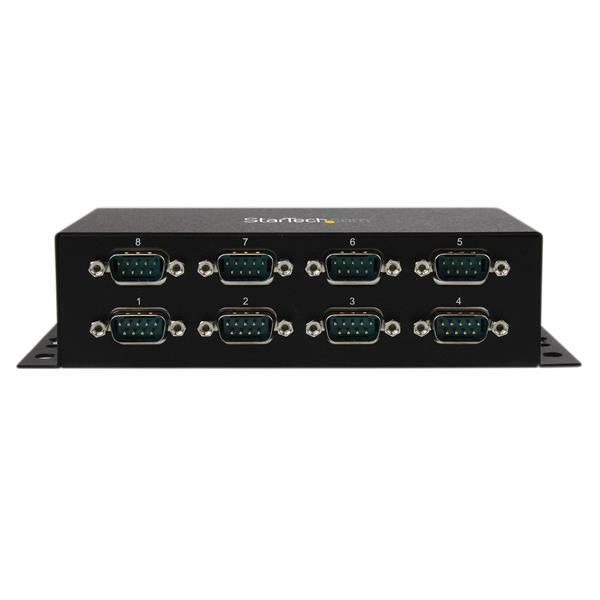

StarTech ICUSB2328I 8-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts product image

Technical specifications

ICUSB2328I specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	industrial eight-port hub
Ports	8
Bus / Host Interface	USB Type-B female
Serial Protocol	RS-232
Chipset	FTDI FT232RL
Enclosure	Steel
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	8 × DB9 RS232 ports
Power
Power Source	USB powered, 5V DC / 250mA stated input
Physical Characteristics
Length	1.8m (6ft) USB-A to USB-B cable included
Dimensions / Weight	180 × 100 × 43mm; 553g
Colour	Black unless otherwise specified
Special Feature
Details	Included wall brackets and top-hat DIN-rail clips support secure mounting in industrial environments.
What's in the Box
Included	8-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts and model-specific supplied accessories
