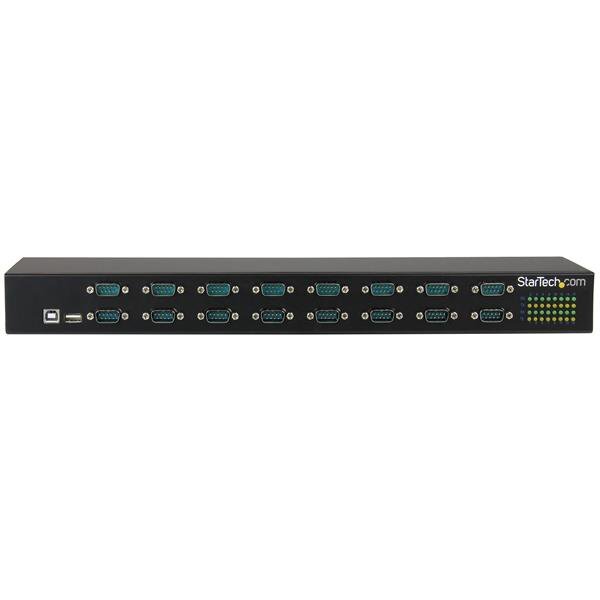

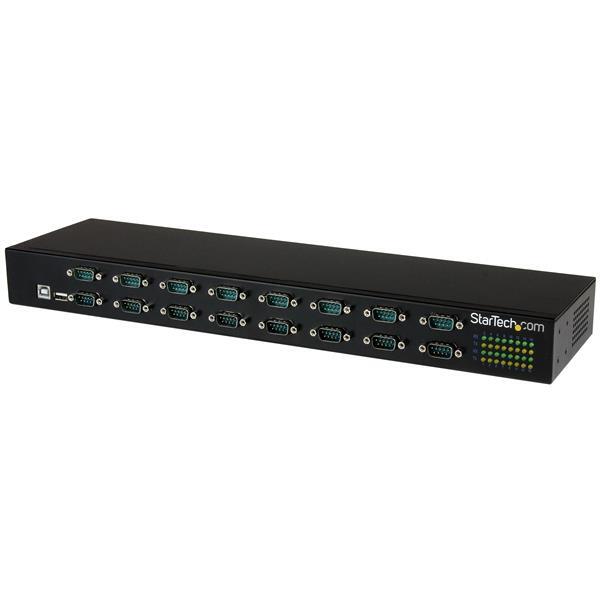

StarTech ICUSB23216FD 16-Port USB-to-RS232 Serial Adapter Hub

16-Port USB-to-RS232 Serial Adapter Hub for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB23216FD adds 16 RS232 serial ports to a USB computer connection in a rackmount steel chassis.

Best forIndustrial control, data centres, labs and server rooms connecting many RS232 devices to one computer.

Check before orderingConfirm operating-system driver support, DB9 pin requirements, rack space and the included external power arrangement.

Answers before you buy

What is StarTech ICUSB23216FD?

It is a rackmount hub that adds 16 RS232 serial ports to a USB computer connection in a rackmount steel chassis.

How many RS232 ports are provided?

It provides 16 RS232 serial ports.

Which connectors are fitted?

The host side uses USB Type-B female; the serial side provides 16 × DB9 RS232 ports.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT232RL chipset.

Does it need an external power adapter?

It uses an external power arrangement: Included 100240V AC to 12V DC, 3A adapter.

Can more than 16 serial ports be added?

Yes. Multiple compatible hubs can be daisy chained, subject to the host system, USB topology and installation requirements.

What warranty applies?

ICUSB23216FD carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB23216FD)

Features & highlights

Why choose ICUSB23216FD?

?Adds RS232 connectivityConnect up to 16 compatible serial devices through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-B female host connection with 16 × DB9 RS232 ports.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT232RL chipset supports the adapters stated serial feature set.

?Power and constructionIncluded 100240V AC to 12V DC, 3A adapter; steel enclosure construction.

?Installation advantageDaisy-chain support enables additional compatible hubs to expand serial port capacity.

Compatibility reminder: Confirm operating-system driver support, DB9 pin requirements, rack space and the included external power arrangement.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	rackmount hub
Ports	16
Bus / Host Interface	USB Type-B female
Serial Protocol	RS-232
Chipset	FTDI FT232RL
Enclosure	Steel
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	16 × DB9 RS232 ports
Power
Power Source	Included 100240V AC to 12V DC, 3A adapter
Physical Characteristics
Length	USB cable included
Dimensions / Weight	430 × 120 × 45mm; 1.6kg
Colour	Black unless otherwise specified
Special Feature
Details	Daisy-chain support enables additional compatible hubs to expand serial port capacity.
What's in the Box
Included	16-Port USB-to-RS232 Serial Adapter Hub and model-specific supplied accessories
