StarTech.com · ICUSB2324I

StarTech ICUSB2324I 4-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts

4-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB2324I adds four straight-through RS232 ports in a steel enclosure with wall-mounting brackets and DIN-rail clips.

Best forFactory automation, control cabinets, laboratories and industrial desktops requiring securely mounted RS232 connectivity.

Check before orderingConfirm driver support, DIN-rail or wall-mounting space, USB power availability and the required RS232 pinout.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB2324I?

It is a industrial four-port hub that adds four straight-through RS232 ports in a steel enclosure with wall-mounting brackets and DIN-rail clips.

How many RS232 ports are provided?

It provides 4 RS232 serial ports.

Which connectors are fitted?

The host side uses USB Type-B female; the serial side provides 4 × DB9 RS232 ports.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT4232HL chipset.

Does it need an external power adapter?

No. It is powered through USB.

Which mounting options are included?

The hub includes wall-mounting brackets and top-hat DIN-rail clips.

What warranty applies?

ICUSB2324I carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB2324I)

Features & highlights

Why choose ICUSB2324I?

?Adds RS232 connectivityConnect up to 4 compatible serial devices through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-B female host connection with 4 × DB9 RS232 ports.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT4232HL chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; steel enclosure construction.

?Installation advantageSteel construction plus included wall brackets and top-hat DIN-rail clips supports flexible industrial mounting.

Compatibility reminder: Confirm driver support, DIN-rail or wall-mounting space, USB power availability and the required RS232 pinout.

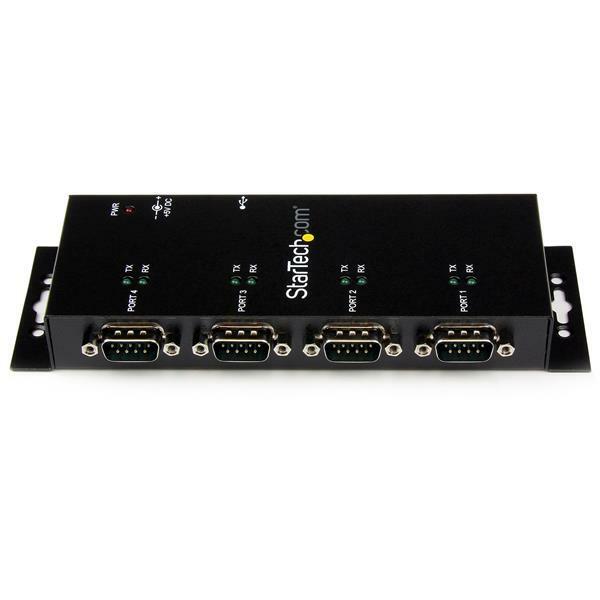

StarTech ICUSB2324I 4-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts product image

Technical specifications

ICUSB2324I specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	industrial four-port hub
Ports	4
Bus / Host Interface	USB Type-B female
Serial Protocol	RS-232
Chipset	FTDI FT4232HL
Enclosure	Steel
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	4 × DB9 RS232 ports
Power
Power Source	USB powered
Physical Characteristics
Length	1.8m (6ft) USB-A to USB-B cable included
Dimensions / Weight	178 × 59 × 23mm; 300g
Colour	Black unless otherwise specified
Special Feature
Details	Steel construction plus included wall brackets and top-hat DIN-rail clips supports flexible industrial mounting.

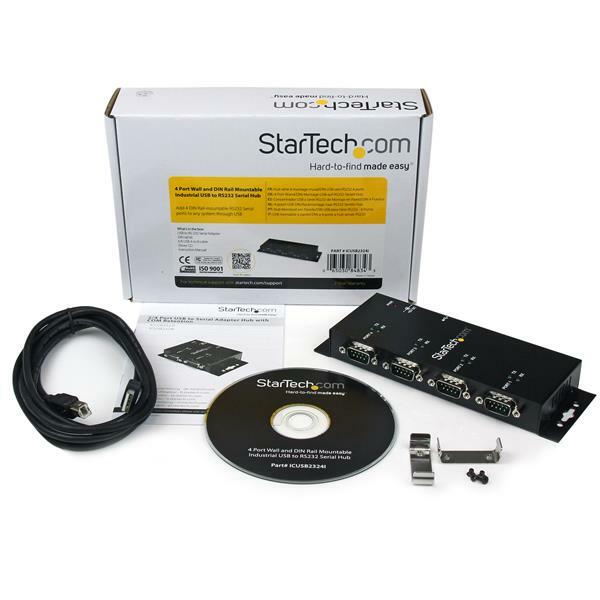

What's in the Box
Included	4-Port Industrial USB-to-RS232 Hub with DIN-Rail Mounts and model-specific supplied accessories
