StarTech 2 Port USB Motherboard Header Adapter - USBMBADAPT2
Model # USBMBADAPT2
-
SKU: USBMBADAPT2
- Pick Up Available
- Australian Warranty
- Checkout Securely

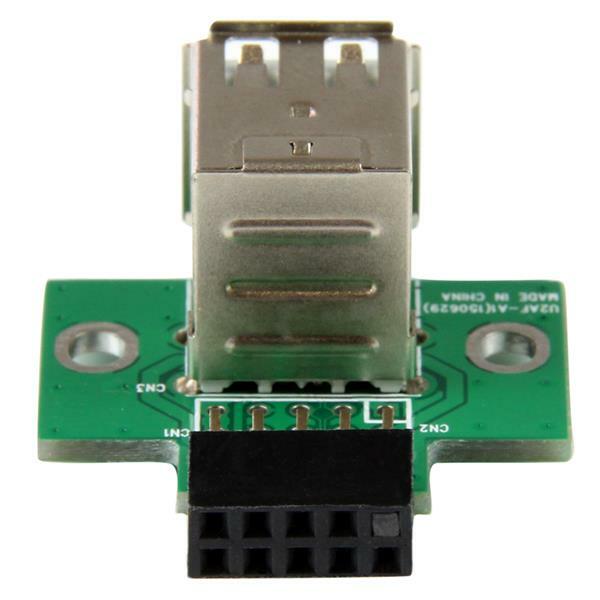

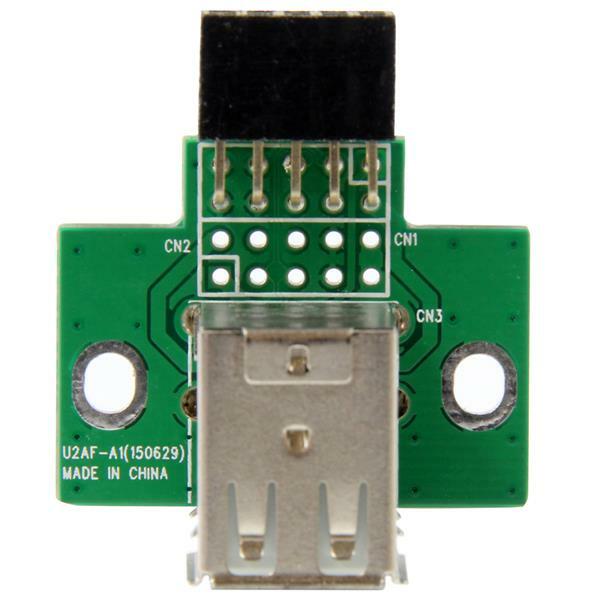

StarTech 2-Port Internal USB-A Motherboard Header Adapter
Convert a compatible internal 10-pin USB 2.0 motherboard header into two standard USB-A female ports for protected in-system devices and embedded applications.
Why choose USBMBADAPT2?
Converts one compatible 10-pin USB 2.0 header into two USB-A ports.
Two standard USB Type-A female connectors.
Supports USB 2.0 connections up to 480Mbps.
Best-fit applications
- Installing a bootable USB flash drive inside a computer
- Connecting internal USB devices in embedded systems
- Keeping USB logging or licensing devices protected inside the chassis
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does USBMBADAPT2 add?
It provides two internal USB-A female ports from one compatible 10-pin USB 2.0 motherboard header.
What data speed is supported?
Each connection operates within USB 2.0 capability, up to 480Mbps, subject to the host controller and devices.
Can it hold a bootable USB flash drive inside a PC?
Yes. That is a typical use where the motherboard and system firmware support booting from USB.
Is it designed for external use?
No. It is an exposed-board adapter intended for protected installation inside compatible equipment.
Will it fit every 10-pin header?
No. Confirm the USB 2.0 header pinout, keying and physical clearance in the motherboard documentation.
Should the computer be powered off during installation?
Yes. Disconnect system power before installing or removing an internal header adapter.
Does it supply extra USB power?
No. It distributes the power available from the motherboard header and does not include an external supply.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBMBADAPT2)
Features and highlights
- Converts one compatible 10-pin USB 2.0 header into two USB-A ports
- Two standard USB Type-A female connectors
- Supports USB 2.0 connections up to 480Mbps
- Compact exposed-board design for internal installation
- Useful for bootable flash drives and embedded data collection
- Lifetime StarTech.com manufacturer warranty
StarTech 2-Port Internal USB-A Motherboard Header Adapter
Product ID: USBMBADAPT2
Connections
| Motherboard connector | IDC 10-pin USB 2.0 header |
|---|---|
| Device connectors | 2 x USB 2.0 Type-A female |
| Maximum USB data rate | 480Mbps |
| Installation | Internal; exposed circuit-board adapter |
Environment
| Operating temperature | 0 to 60°C |
|---|---|
| Storage temperature | 0 to 70°C |
| Humidity | 10% to 90% RH, non-condensing |
Physical and package
| Colour | Green |
|---|---|
| Dimensions | 37 x 32 x 20mm |
| Weight | 9g |
| Included | 2-port USB motherboard header adapter |
| Warranty | Lifetime |
| SKU | USBMBADAPT2 |
| Barcode # | 65030828451 |
| Brand | STARTECH |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000600000m3 |
