StarTech.com · ICUSB232FTN

StarTech ICUSB232FTN FTDI USB-to-Null-Modem RS232 DCE Adapter Cable

FTDI USB-to-Null-Modem RS232 DCE Adapter Cable for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB232FTN provides a USB-to-RS232 null-modem DCE connection without a separate crossover cable or adapter.

Best forDirect serial links, industrial equipment, console access and applications that otherwise require a null-modem crossover cable.

Check before orderingThis is a null-modem DCE adapter. Confirm DCE/DTE roles, DB9 gender, pinout and driver support before ordering.

Answers before you buy

What is StarTech ICUSB232FTN?

It is a null-modem adapter cable that provides a USB-to-RS232 null-modem DCE connection without a separate crossover cable or adapter.

How many RS232 ports are provided?

It provides 1 RS232 serial port.

Which connectors are fitted?

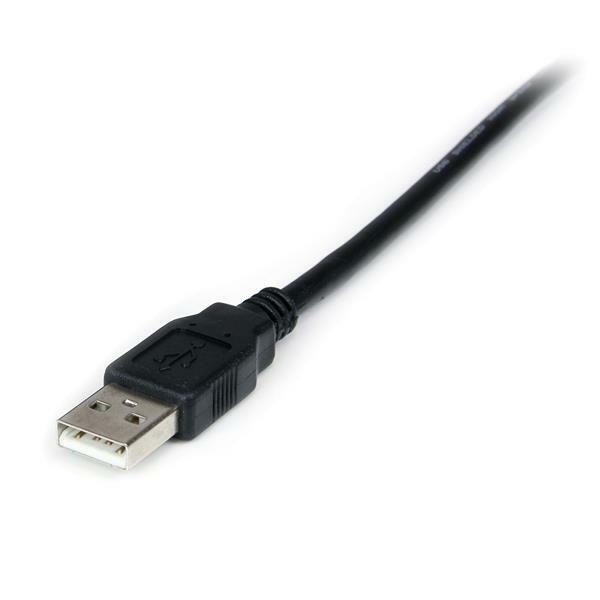

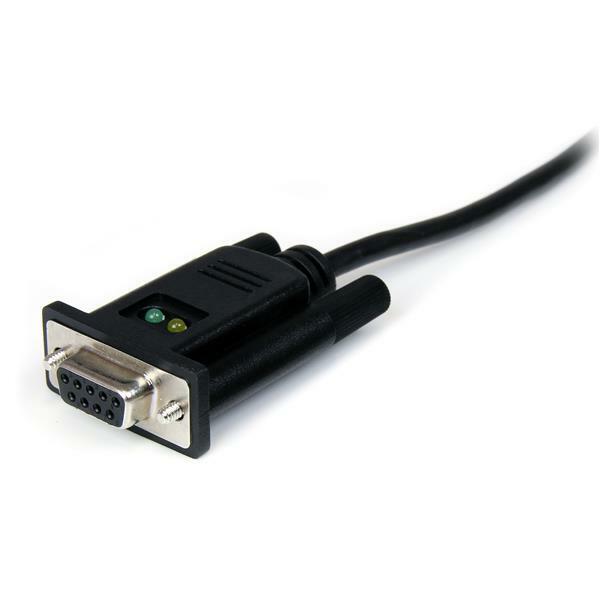

The host side uses USB Type-A male; the serial side provides 1 × DB9 female RS232 null-modem connection.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT232RL chipset.

Does it need an external power adapter?

No. It is powered through USB.

Is a separate null-modem cable required?

No. Null-modem DCE wiring is integrated into the adapter.

What warranty applies?

ICUSB232FTN carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB232FTN)

Features & highlights

Why choose ICUSB232FTN?

?Adds RS232 connectivityConnect one compatible serial device through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with 1 × DB9 female RS232 null-modem connection.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT232RL chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageIntegrated null-modem wiring resolves common DCE/DTE connection conflicts without an additional cross-wired cable.

Compatibility reminder: This is a null-modem DCE adapter. Confirm DCE/DTE roles, DB9 gender, pinout and driver support before ordering.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	null-modem adapter cable
Ports	1
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	FTDI FT232RL
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	1 × DB9 female RS232 null-modem connection
Power
Power Source	USB powered
Physical Characteristics
Length	1.7m cable (1.8m overall)
Dimensions / Weight	Overall length 1.8m; 90g
Colour	Black unless otherwise specified
Special Feature
Details	Integrated null-modem wiring resolves common DCE/DTE connection conflicts without an additional cross-wired cable.

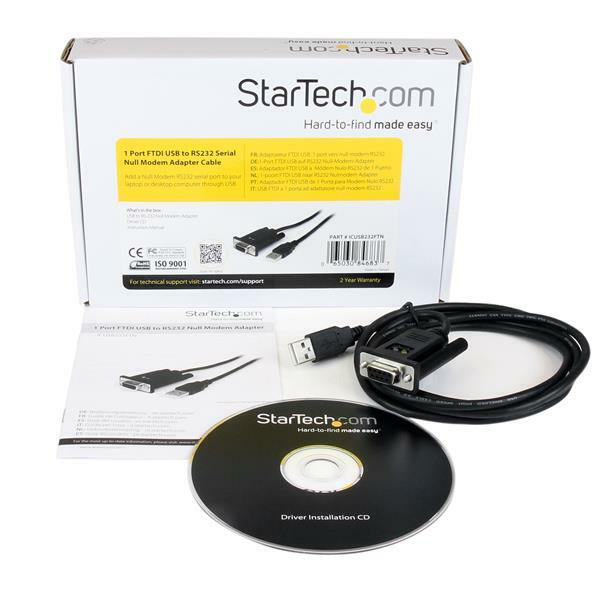

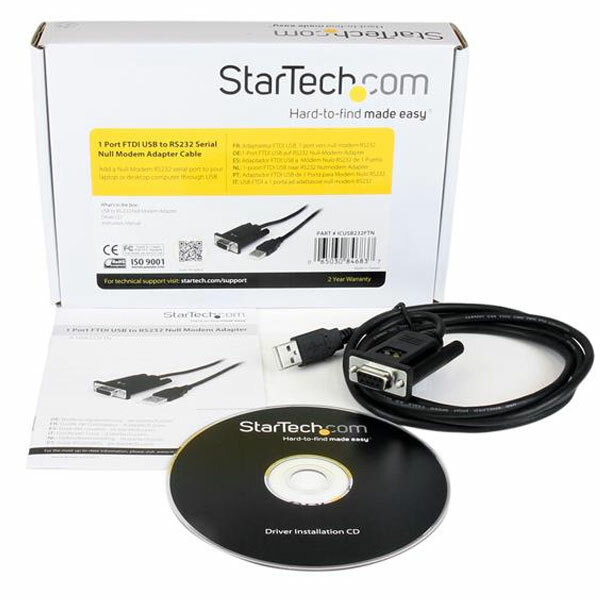

What's in the Box
Included	FTDI USB-to-Null-Modem RS232 DCE Adapter Cable and model-specific supplied accessories
