The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

ATEN provides 4 models in this series: 2/4-Port USB-to-Serial RS-232 Hub; 2/4-Port USB-to-Serial RS-422/485 Hub

Package Contents

1x USB-to-Serial Hub
1x USB Cable
1x Installation Disk
1x User Instructions

Easy way to add 4 RS-232 serial ports
Fully compliant with USB 1.1; USB 2.0 compatible
Supports RS-232 serial interface
Supports automatic handshake mode
Up to 115.2 Kbps data transfer rate for each serial port
Dual data buffers for each upstream and downstream data transfer
No IRQ, DMA, I/O address resources required
Supports hot-swapping and plug-and-play
Built-in 16KV ESD protection
Supports both bus power and external power
Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
OS support - Windows 2000/2003/XP/NT

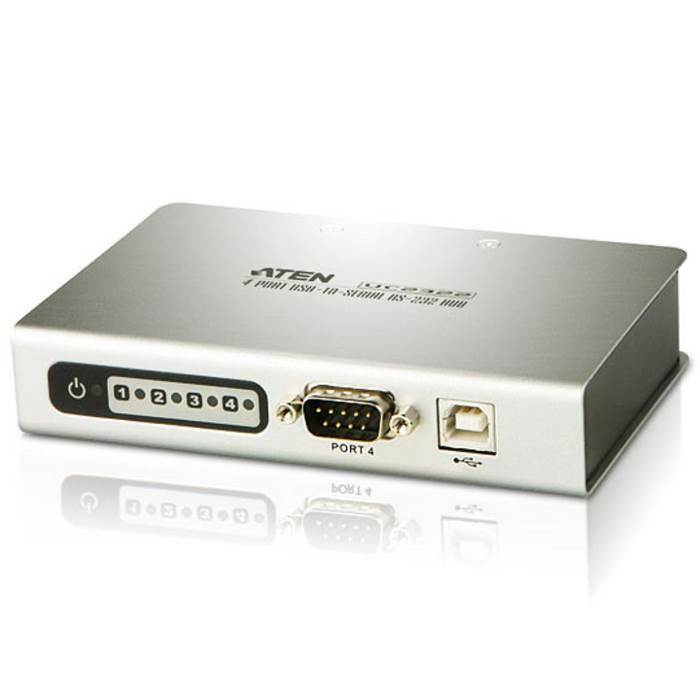

4-Port USB-to -Serial RS-232 Hub

Device Connections	4
Connectors
USB Port	1 x USB Type B Female (White)
Power	1 x DC Jack

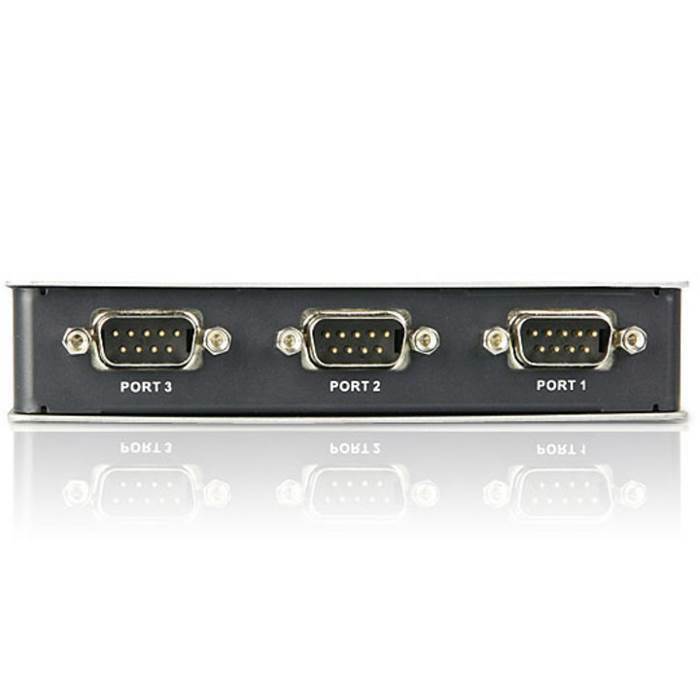

Serial	4 x DB-9 Male (Black)
LEDs
Ports	4 (Green)
Power	1 (Orange)
Data Rate	115.2 Kbps (max.)
USB Specification	USB 1.1 Compliant; USB 2.0 Compatible
Power Mode	Bus Powered; use of Power Adapter is optional
Power Consumption	DC5V:0.4W:2BTU
Environmental
Operating Temperature	0–50?C
Storage Temperature	-20–60?C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.32 kg ( 0.7 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Software & Drivers

?S	Description	Ver.	Release Date	File Name
Linux Software & Driver
Linux		v1.0	2008-04-18	uc2322_2324_4852_4854_linux.zip
Windows Legacy Software & Driver
Windows, Windows 7, Windows 8, Windows 8.1, Windows 10, WHQL 32bit/64bit		V3.1X5.0	2018-12-07	uc2322_2324_4852_4854_WHQL_v3.1x.5.0.zip
Windows, Windows 7, Windows 8, Windows 8.1, Windows 10, WHQL 32bit/64bit		V3.1X.4.0	2018-11-21	uc2322_2324_4852_4854_WHQL_v3.1x.4.0.zip
Windows XP, Windows, Windows Vista, Vista (32 bit), Windows 7, Windows 8, Windows 8.1		V2.0.7.0	2014-09-11	uc2322_2324_4852_4854_windows_v2.0.7.0.zip
Windows, Vista (32 bit), Windows 7		v1.0	2008-04-08	uc2322_2324_4852_4854_windows_v1.0.zip

(UC2324-AT)

Device Connections	4
Connectors
USB Port	1 x USB Type B Female (White)
Power	1 x DC Jack
Serial	4 x DB-9 Male (Black)
LEDs
Ports	4 (Green)
Power	1 (Orange)
Data Rate	115.2 Kbps (max.)
USB Specification	USB 1.1 Compliant; USB 2.0 Compatible
Power Mode	Bus Powered; use of Power Adapter is optional
Power Consumption	DC5V:0.4W:2BTU
Environmental
Operating Temperature	0–50˚C
Storage Temperature	-20–60˚C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.32 kg ( 0.7 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	UC2324-AT
Barcode #	672792151682
Brand	ATEN
Shipping Weight	0.4900kg
Shipping Width	0.060m
Shipping Height	0.160m
Shipping Length	0.240m
Shipping Cubic	0.002304000m3
