StarTech ICUSB2321FIS 1-Port Isolated FTDI USB-to-RS232 Adapter Cable

1-Port Isolated FTDI USB-to-RS232 Adapter Cable for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB2321FIS adds one isolated RS232 port with 2500Vrms optical isolation and bidirectional surge protection.

Best forIndustrial, laboratory and control environments where sensitive RS232 equipment needs electrical isolation from the USB host.

Check before orderingConfirm the required isolation level, DB9 pinout, driver support and environmental requirements for the connected equipment.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB2321FIS?

It is a isolated adapter cable that adds one isolated RS232 port with 2500Vrms optical isolation and bidirectional surge protection.

How many RS232 ports are provided?

It provides 1 RS232 serial port.

Which connectors are fitted?

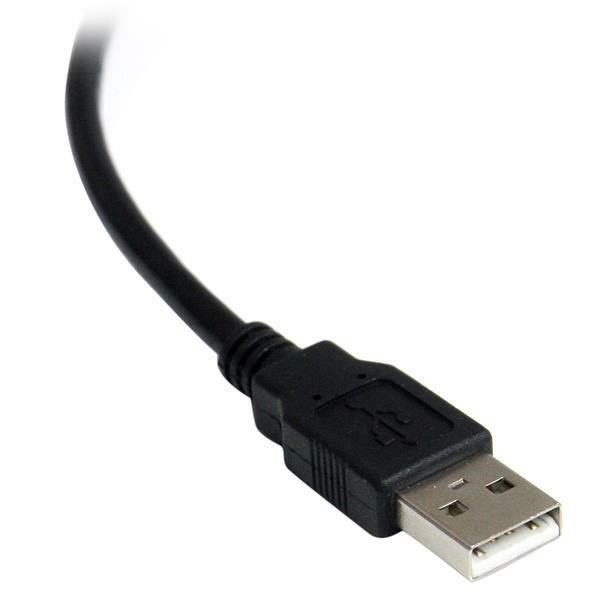

The host side uses USB Type-A male; the serial side provides 1 × DB9 male RS232.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT232RL chipset.

Does it need an external power adapter?

No. It is powered through USB.

What protection is built in?

The adapter specifies 2500Vrms optical isolation and 500W bidirectional surge-protection circuits.

What warranty applies?

ICUSB2321FIS carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB2321FIS)

Features & highlights

Why choose ICUSB2321FIS?

?Adds RS232 connectivityConnect one compatible serial device through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with 1 × DB9 male RS232.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT232RL chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageIntegrated 2500Vrms optical isolation and 500W bidirectional surge-protection circuits help protect sensitive serial equipment.

Compatibility reminder: Confirm the required isolation level, DB9 pinout, driver support and environmental requirements for the connected equipment.

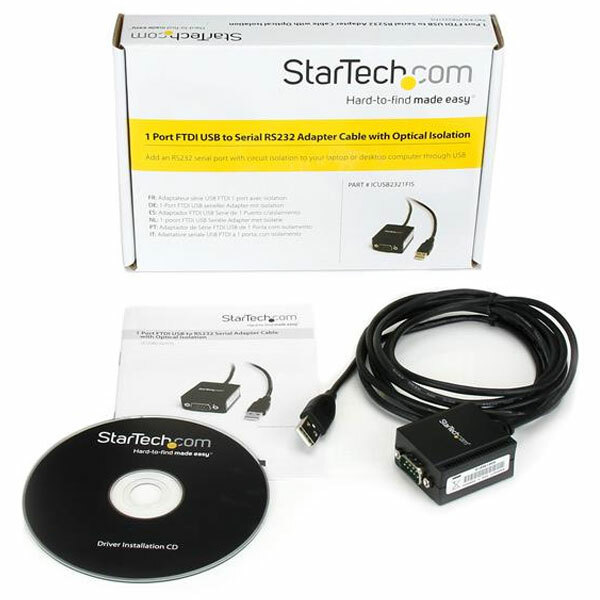

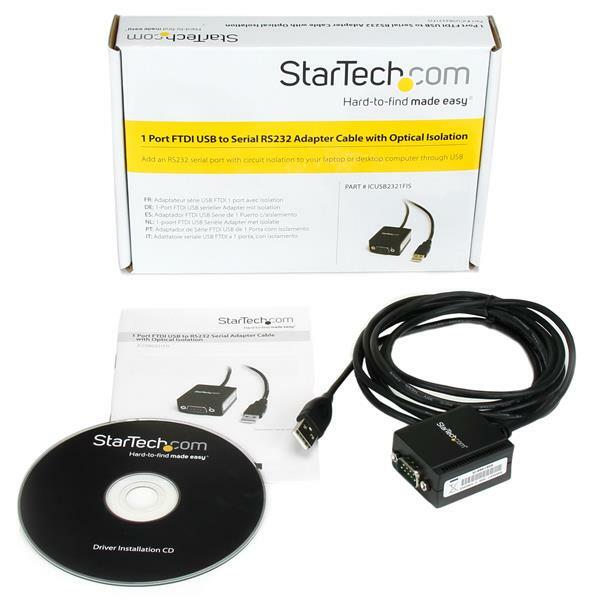

StarTech ICUSB2321FIS 1-Port Isolated FTDI USB-to-RS232 Adapter Cable product image

Technical specifications

ICUSB2321FIS specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	isolated adapter cable
Ports	1
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	FTDI FT232RL
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	1 × DB9 male RS232
Power
Power Source	USB powered
Physical Characteristics
Length	2.5m (8.3ft)
Dimensions / Weight	Cable 2.5m; adapter width 40mm; 107g
Colour	Black unless otherwise specified
Special Feature
Details	Integrated 2500Vrms optical isolation and 500W bidirectional surge-protection circuits help protect sensitive serial equipment.
What's in the Box
Included	1-Port Isolated FTDI USB-to-RS232 Adapter Cable and model-specific supplied accessories

Sources: https://www.devicedeal.com.au/startech-usb-to-serial-adapter-cable-with-isolatio and https://www.startech.com/

SKU	ICUSB2321FIS
Barcode #	65030845373
Brand	STARTECH
Shipping Weight	0.2400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3
