StarTech 2 Port USB A Slot Plate Adapter - USBPLATE
Model # USBPLATE
-
SKU: USBPLATE
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech 2-Port USB-A Female Full-Height Slot Plate Adapter
Add two rear USB-A female ports to a compatible desktop case by connecting the full-height bracket to supported 4-pin or 5-pin motherboard USB headers.
Why choose USBPLATE?

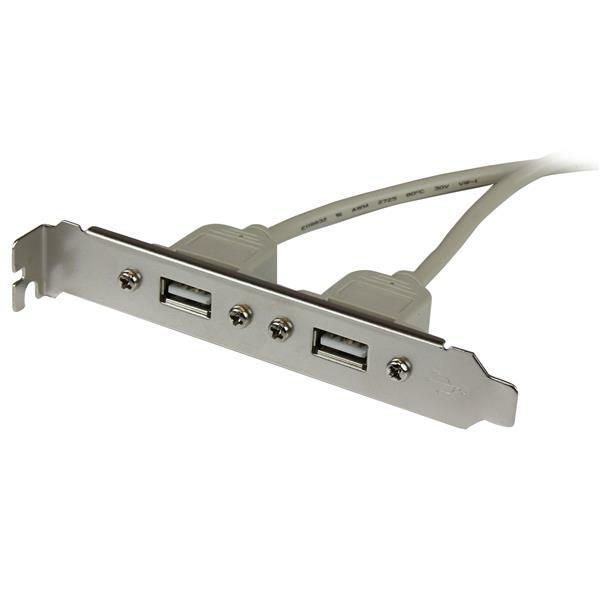

Two rear USB-A female ports on a full-height slot bracket.

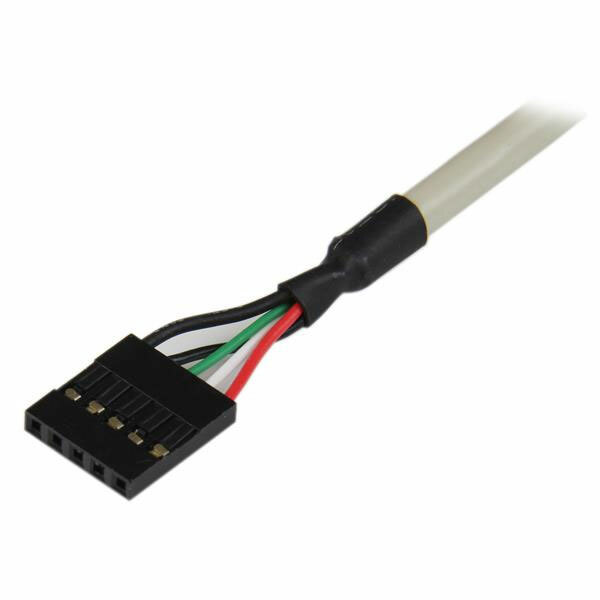

Two separate IDC 5-pin female header leads.
Supports compatible 4-pin and 5-pin motherboard connections.
Best-fit applications
- Adding rear USB ports to a desktop PC
- Using available motherboard USB header pins
- Supporting USB peripherals without installing a controller card
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does USBPLATE add?
It adds two rear USB-A female ports using compatible motherboard USB header connections.
Is this a PCI or PCIe card?
No. It is a passive slot bracket and cable assembly; the expansion slot only provides a mounting position.
What headers does it support?
Its separate IDC 5-pin leads can support compatible 4-pin or 5-pin motherboard connections.
What speed is supported?
It supports USB 2.0 connections up to 480Mbps with compatible hardware.
Is it a low-profile bracket?
No. USBPLATE is the full-height model; USBPLATELP is intended for low-profile cases.
Why must I check the motherboard manual?
USB header pinouts can vary, and incorrect power, signal or ground alignment can damage equipment.
Does it add USB power?
No. The ports use the power supplied by the connected motherboard header.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBPLATE)
Features and highlights
- Two rear USB-A female ports on a full-height slot bracket
- Two separate IDC 5-pin female header leads
- Supports compatible 4-pin and 5-pin motherboard connections
- USB 2.0 compliant connections up to 480Mbps
- 28.6cm internal cables support practical routing
- Lifetime StarTech.com manufacturer warranty
StarTech 2-Port USB-A Female Full-Height Slot Plate Adapter
Product ID: USBPLATE
Connections
| Motherboard connectors | 2 x IDC 5-pin female; supports compatible 4-pin or 5-pin headers |
|---|---|
| External ports | 2 x USB 2.0 Type-A female |
| Maximum data rate | 480Mbps |
| Wiring colours | Red power; green/white signal; black ground |
Physical
| Bracket format | Full-height expansion-slot plate |
|---|---|
| Cable length | 28.6cm (11.2in) |
| Colour | Grey |
| Weight | 120g |
Package and warranty
| Included | Two-port USB slot plate |
|---|---|
| Warranty | Lifetime |
| SKU | USBPLATE |
| Barcode # | 65030778886 |
| Brand | STARTECH |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
Lifetime StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
