StarTech 90cm Panel Mount USB A USB Header Cable - USBPNLAFHD3
Model # USBPNLAFHD3
-
SKU: USBPNLAFHD3
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech 90cm USB-A Panel-Mount to Motherboard Header Cable
Add a secure panel-mounted USB-A female port to a compatible internal USB 2.0 motherboard header with a 90cm female-to-female cable.
Why choose USBPNLAFHD3?

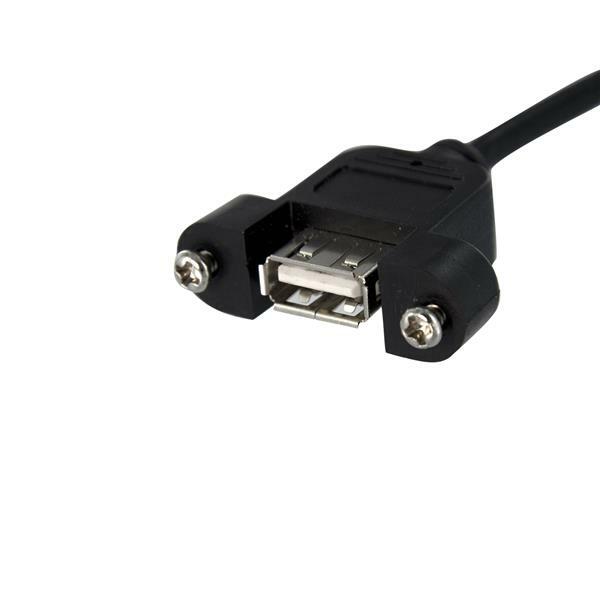

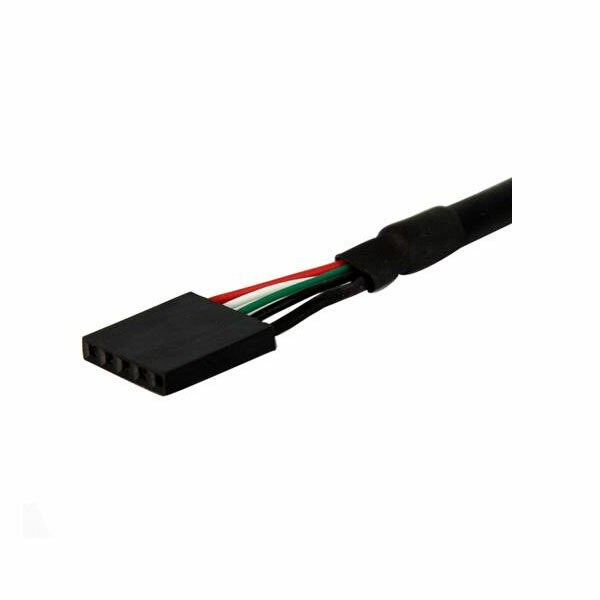

Panel-mount USB-A female to IDC 5-pin female header.
90cm (3ft) internal cable.
Supports USB 2.0 connections up to 480Mbps.
Best-fit applications
- Adding a secure USB-A port to a custom chassis
- Connecting a panel port directly to a compatible motherboard header
- Providing accessible connection for boot media or authentication fobs
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does USBPNLAFHD3 connect?
It connects a panel-mounted USB-A female port to a compatible 5-pin motherboard USB header.
How long is the cable?
It is 0.9 metres, approximately 3 feet, long.
What data rate is supported?
It supports USB 2.0 connections up to 480Mbps with compatible hardware.
Are both ends female?
Yes. It uses a female panel-mount USB-A port and a female IDC header connector.
Can it connect to a normal external USB-A port?
No. The internal end is a motherboard header connector, not a standard external USB plug.
Why must the header pinout be verified?
Incorrect power, data or ground alignment can damage the motherboard or attached device.
Is it suitable for a custom enclosure?
Yes, where the enclosure and motherboard provide compatible mounting and header connections.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBPNLAFHD3)
Features and highlights
- Panel-mount USB-A female to IDC 5-pin female header
- 90cm (3ft) internal cable
- Supports USB 2.0 connections up to 480Mbps
- Useful for bootable drives and authentication devices
- 24/28 AWG shielded PVC construction
- Lifetime StarTech.com manufacturer warranty
StarTech 90cm USB-A Panel-Mount to Motherboard Header Cable
Product ID: USBPNLAFHD3
Connections and performance
| Panel connector | Panel-mount USB 2.0 Type-A female |
|---|---|
| Motherboard connector | IDC 5-pin female |
| Maximum data rate | 480Mbps |
| Cable length | 0.9m (3ft) |
Construction and physical
| Colour | Black |
|---|---|
| Wire gauge | 24/28 AWG |
| Jacket | PVC |
| Shielding | Aluminium-Mylar foil with braid |
| Connector plating | Nickel |
| Dimensions | 914 x 38 x 10mm |
| Weight | 36g |
Environment and package
| Operating temperature | 0 to 50°C |
|---|---|
| Storage temperature | -20 to 70°C |
| Humidity | 0% to 80% RH |
| Included | 90cm USB-A panel-mount to motherboard header cable |
| Warranty | Lifetime |
| SKU | USBPNLAFHD3 |
| Barcode # | 65030852081 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000700000m3 |
