STARTECH.COM | DVIVGAMM2M

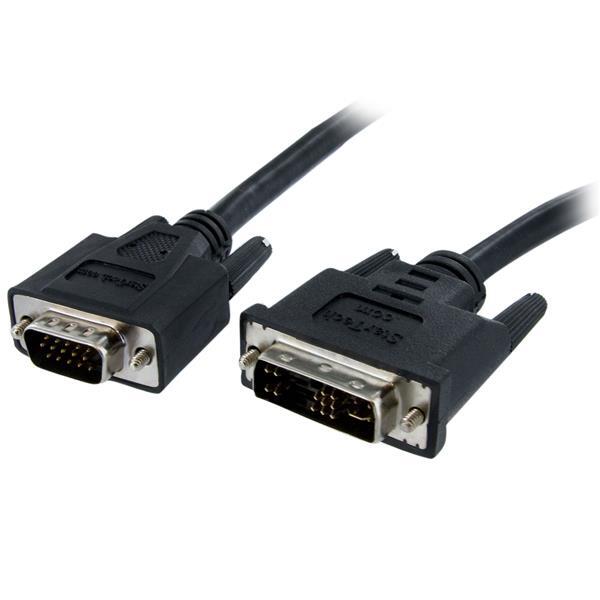

2m (6.6ft) DVI-A to VGA Analogue Monitor Cable

Connect an analogue-capable DVI source directly to a VGA monitor or projector with a 2m (6.6ft) male-to-male display cable.

DVI-A male to VGA male

Provides a direct cable connection between an analogue DVI output and a 15-pin VGA display input.

Shielded 28 AWG cable

Copper conductors, shielding and moulded strain relief support reliable analogue video connectivity.

2m (6.6ft) reach

The integrated 2m (6.6ft) cable suits a straightforward desktop, workstation or projector installation.

What to know

This cable carries analogue video only and does not convert digital DVI-D signals. The source must provide analogue video through DVI-I or DVI-A, and the display must accept VGA input. VGA does not carry audio.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVIVGAMM2M connect?

It connects an analogue-capable DVI output to a monitor or projector with VGA input.

Which connectors are on the DVIVGAMM2M?

It has a 17-pin DVI-A male connector and a 15-pin VGA male connector.

How long is the DVIVGAMM2M?

The cable is 2m (6.6ft) long.

Does the DVIVGAMM2M work with DVI-D?

No. DVI-D is digital-only and this cable carries analogue video.

Does the DVIVGAMM2M convert digital video to analogue?

No. It is a passive analogue cable and does not convert signal formats.

Does the DVIVGAMM2M carry audio?

No. VGA carries video only, so audio requires a separate connection.

How is the DVIVGAMM2M constructed?

It uses 28 AWG copper conductors, shielding, nickel-plated connectors, gold-plated contacts and a black PVC jacket.

What warranty applies to the DVIVGAMM2M?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVIVGAMM2M)

Features and highlights

2m (6.6ft) DVI-A male to VGA male analogue video cable

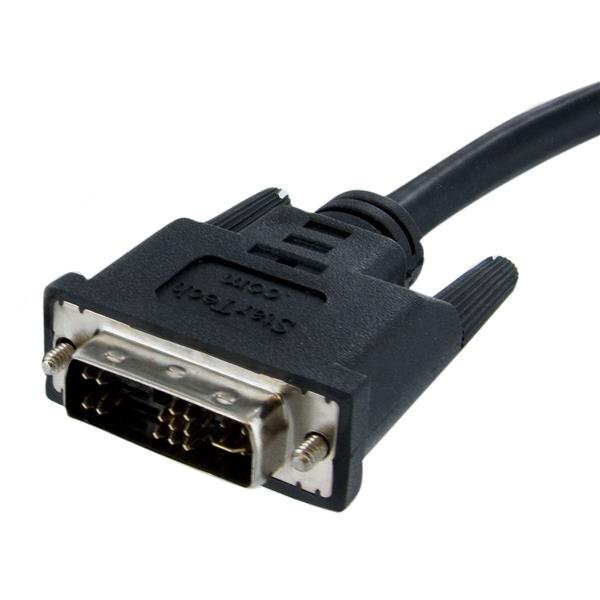

17-pin DVI-A male connector
15-pin high-density VGA male connector
Requires an analogue-capable DVI source
Does not convert digital DVI-D video
28 AWG copper conductors
Shielded construction helps reduce EMI
Nickel-plated connectors with gold-plated contacts
Black PVC jacket with moulded strain relief
Lifetime StarTech.com manufacturer warranty

Compatibility check: Use with a source that provides analogue video through DVI-I or DVI-A and a display with VGA input. It is not suitable for digital-only DVI-D output and carries no audio.

Specifications

Product type	DVI-A to VGA analogue monitor cable
Connector A	1 × DVI-A male, 17-pin
Connector B	1 × VGA male, 15-pin high-density D-Sub
Cable length	2m (6.6ft)
Signal type	Analogue video
Active conversion	No
Conductor and gauge	Copper; 28 AWG
Shielding	Yes; designed to help reduce EMI
Connector plating	Nickel
Contact plating	Gold
Jacket	Black PVC
Construction	Moulded connectors with strain relief
Product weight	187g in the current official specification
Industry standard	DVI DDWG
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVIVGAMM2M
Barcode #	65030849159
Brand	Startech
Shipping Weight	0.2000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Warranty and Australian supply

DVIVGAMM2M is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
